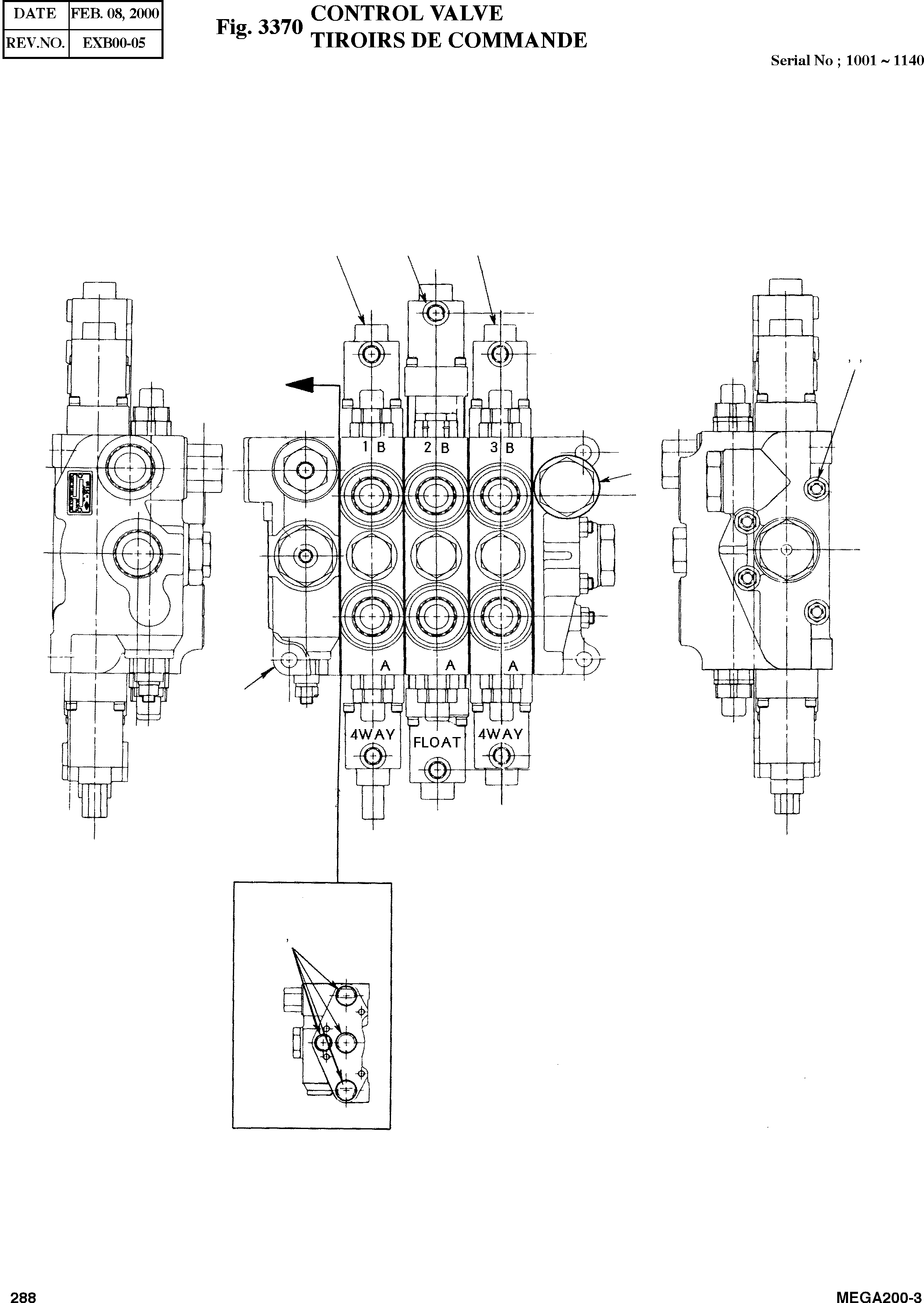

Запчасти Doosan Daewoo CONTROL VALVE HYDRAULIC PARTS

-

4420-9451A

VALVE;CONTROL(2-SPOOL. STD.)

SERIAL: 1001-1140

1шт.

-

4420-9452A

VALVE;CONTROL(3-SPOOL. OPT.)

SERIAL: 1001-1140

1шт.

1

12410003

COVER;PLATE V50 LE A

desc: COUVERCLE

1шт.

2

10023155

SECTION;V50 4WAY HR ASS'Y

desc: TIROIR

1шт.

3

11339015

SECTION;FLOAT V50 HR A

desc: TIROIR

1шт.

4

10023012

SECTION;V50 4WAY HR ASS'Y

desc: TIROIR

1шт.

5

10965012

COVER;PLATE V50 RE A

desc: COUVERCLE

1шт.

6

11427003

STUD 438 DIA 10.25

desc: GOUJON

4шт.

7

21883003

SEAL;V50 3 SECTION

desc: JOINT

1шт.

7A

21881001

SEAL

desc: JOINT

6шт.

7B

21882001

SEAL

desc: JOINT

18шт.

8

09310107

NUT

desc: ECROU

4шт.

9

11427002

STUD 438 DIA 8.00L

desc: GOUJON

4шт.

10

21883002

SEAL;V50 2 SECTION

desc: JOINT

1шт.

10A

21881001

SEAL

desc: JOINT

4шт.

10B

21882001

SEAL

desc: JOINT

12шт.
