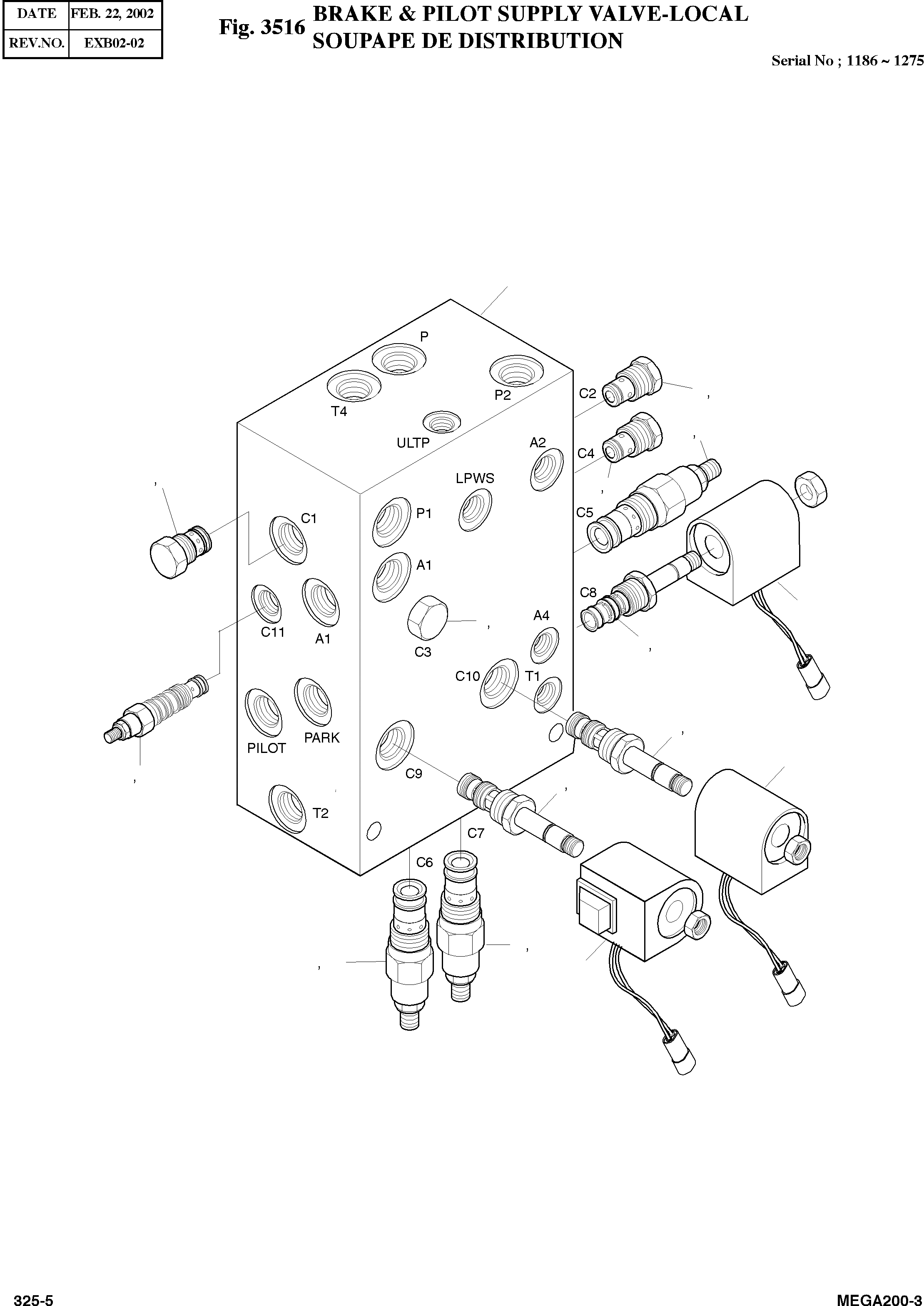

Запчасти Doosan Daewoo BRAKE & PILOT SUPPLY VALVE-LOCAL HYDRAULIC PARTS

-

4420-9566

BRAKE & PILOT SUPPLY VALVE

SERIAL: 1186-1275

1шт.

1

A1003-96-1

BODY

SC: D

1шт.

2

DE-CVA-00-0090

VALVE;CHECK

desc: VANNE

2шт.

2A

DECVA-S-01

SEAL KIT

desc: KIT D'ETANCHEITE

1шт.

3

FD-DC-0-B

VALVE;CHECK(C3.C4)

desc: CLAPET DE RETENUE

2шт.

3A

DECVA-S-01

KIT;SEAL

desc: KIT D'ETANCHEITE

1шт.

4

QPAA-LAN

VALVE;UNLOADER

desc: VANNE

1шт.

4A

990-011-007

SEAL KIT

desc: KIT D'ETANCHEITE

1шт.

5

SCCA-LAN

VALVE;SEQUENCE

desc: VANNE

1шт.

5A

990-011-007

SEAL KIT

desc: KIT D'ETANCHEITE

1шт.

6

PBDB-LNN

VAVLE;REDUCING

desc: VANNE

1шт.

6A

990-011-007

SEAL KIT

desc: KIT D'ETANCHEITE

1шт.

7

DE-S2A-00

VALVE;SOLENOID

desc: VANNE

1шт.

7A

DE-S2A-S-01

SEAL KIT

desc: KIT D'ETANCHEITE

1шт.

8

DE-S2C-00

VALVE;SOLENOID

desc: VANNE

1шт.

8A

DE-S2C-S-01

SEAL KIT

desc: KIT D'ETANCHEITE

1шт.

9

DF-S3A-00

VALVE;SOLENOID

desc: VANNE

1шт.

9A

DF-S3A-S-01

SEAL KIT

desc: KIT D'ETANCHEITE

1шт.

10

FVCA-LAN-20L

VALVE;PRIORITY

desc: VANNE

1шт.

10A

990-021-007

SEAL KIT

desc: KIT D'ETANCHEITE

1шт.

11

DDL24

COIL

desc: COIL

3шт.

12

KFP-0013

BAR

desc: TIGE

1шт.
