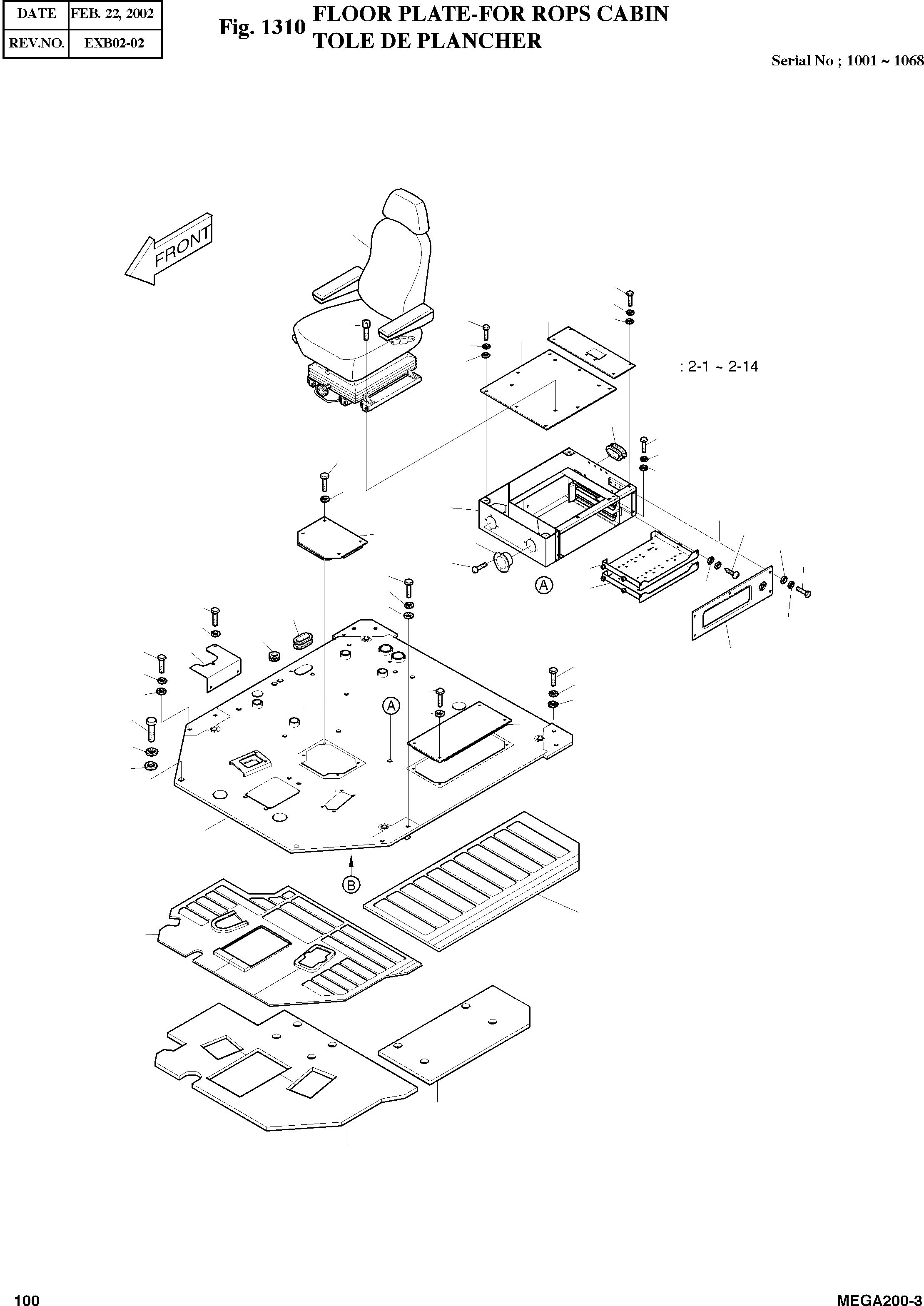

Запчасти Doosan Daewoo FLOOR PLATE-FOR ROPS CABIN BODY PARTS

-

4197-2271C

CONTROL STAND ASS'Y

SC: D

-2шт.

1

2901-9026

SEAT

desc: SIEGE

1шт.

2

4512-1106C

ELECTRIC BOX ASS'Y

desc: ENSEMBLE ELECTRICITE

1шт.

2-1

4512-1105C

ELECTRIC BOX

desc: . ENSEMBLE ELECTRICITE

1шт.

2-2

4621-2861B

COVER

desc: . COUVERCLE

1шт.

2-3

4621-2862A

COVER

desc: . COUVERCLE

1шт.

2-4

4621-2863A

COVER

desc: . COUVERCLE

1шт.

2-5

4621-2860A

PLATE

desc: . PLAQUE

1шт.

2-6

4621-2859A

PLATE

desc: . PLAQUE

1шт.

2-7

S0512053

BOLT M10X1.5X25

desc: . BOULON A 6 PANS

4шт.

2-8

S5010613

WASHER;PLAIN M10

desc: . RONDELLE

6шт.

2-9

S5102603

WASHER;SPRING M10

desc: . RONDELLE ELASTIQUE M10

4шт.

2-10

S0504553

BOLT M6X1.0X14

desc: . BOULON A 6 PANS

9шт.

2-11

S5010313

WASHER;PLAIN M6

desc: . RONDELLE

13шт.

2-12

S5102303

WASHER;SPRING M6

desc: . RONDELLE ELASTIQUE M6

13шт.

2-13

S3450973

SCREW M6X1.0X16

desc: . VIS M6X1.0X20

4шт.

2-14

2161-1744

BUSHING;RUBBER

desc: . CAOUTCHOUC

1шт.

9

4621-2907B

COVER

desc: COUVERCLE

1шт.

15

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

4шт.

17

S0512053

BOLT M10X1.25X25

desc: BOULON A 6 PANS

8шт.

22

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

2шт.

23

S0514853

BOLT M12X1.75X20

desc: BOULON A 6 PANS

4шт.

24

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

4шт.

25

S5010713

WASHER;PLAIN M12

desc: RONDELLE

4шт.

29

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

36

4161-2380B

FLOOR PLATE

desc: TAPIS DE SOL

1шт.

37

4621-2900B

COVER

desc: COUVERCLE

1шт.

38

4621-2901C

COVER

desc: COUVERCLE

1шт.

39

2120-2208D6

BOLT M20X2.5X115

desc: BOULON A 6 PANS

5шт.

40

2114-1961D3

WASHER;SPRING M20

desc: RONDELLE ELASTIQUE M20

8шт.

41

2114-1961D4

WASHER;PLAIN M20

desc: RONDELLE

8шт.

42

2120-2208D4

BOLT M20X2.5X60

desc: BOULON A 6 PANS

1шт.

43

2120-2208D5

BOLT M20X2.5X90

desc: BOULON A 6 PANS

2шт.

44

S0559053

BOLT M10X1.5X75

desc: BOULON A 6 PANS

2шт.

45

S5010613

WASHER;PLAIN M10

desc: RONDELLE

10шт.

46

2160-1238

BUSHING;RUBBER

desc: GARNISSAGE CAOUTCHOUC

1шт.

47

2160-1004D45

BUSHING;RUBBER

desc: GARNISSAGE CAOUTCHOUC

2шт.

49

4161-2382A

MAT;FLOOR

desc: TAPIS DE SOL

1шт.

50

4161-2009B

MAT;FLOOR

desc: TAPIS DE SOL

1шт.

53

S3460363

SCREW M3X0.5X10

desc: VIS

8шт.

73

4161-2386A

FOAM

desc: EPONGE

1шт.

74

4161-2335

FOAM

desc: EPONGE

1шт.

75

2415-9007

NOZZLE;AIR

desc: INJECTEUR

2шт.

76

S2208761

BOLT;SOCKET M8X1.25X18

desc: BOULON A 6 PANS CREUX

4шт.
