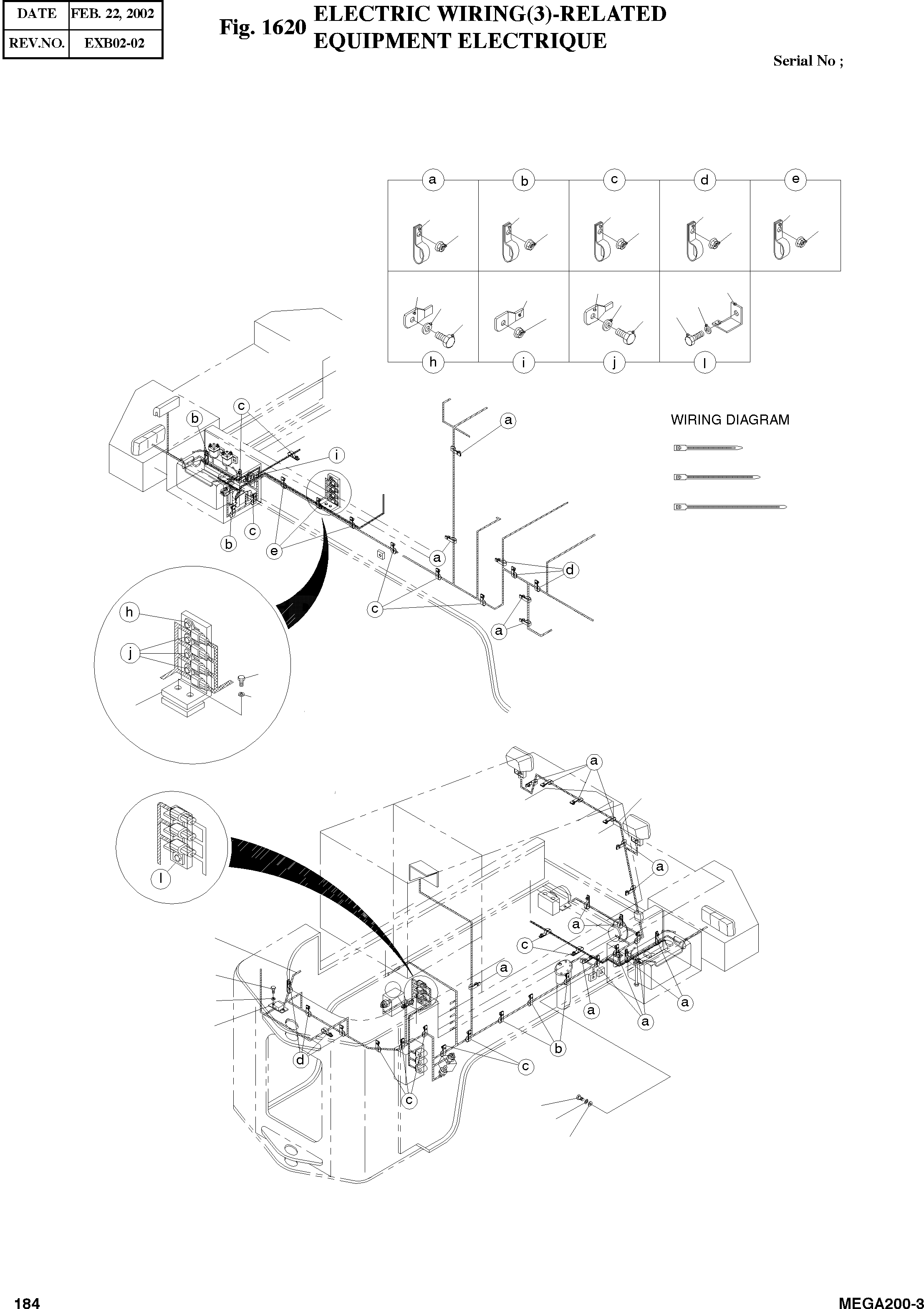

Запчасти Doosan Daewoo ELECTRIC WIRING(3)-RELATED BODY PARTS

-

4500-1221

ELECTRIC PARTS(3)

SC: D

-2шт.

1

4599-1134

WIRING DIAGRAM

SERIAL: 1001-1210

1шт.

1

4599-1134A

WIRING DIAGRAM

SERIAL: 1211-1230

1шт.

1

4599-1134B

WIRING DIAGRAM

SERIAL: 1231

1шт.

2

4530-1695

HARNESS;MAIN

SERIAL: 1001-1210

1шт.

2

4530-1695A

HARNESS;MAIN

SERIAL: 1211-1309

1шт.

2

4530-1695B

HARNESS;MAIN

SERIAL: 1310

1шт.

7

4530-1698

HARNESS;REAR LAMP

desc: FAISCEAU

2шт.

17

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS M10X1.5X16

1шт.

18

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

1шт.

19

S5010613

WASHER;PLAIN M10

desc: RONDELLE

1шт.

20

2195-3500

BRACKET;HOUSING

desc: SUPPORT

3шт.

21

2197-1198

BRACKET;HOUSING

desc: SUPPORT

1шт.

22

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

5шт.

23

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

5шт.

24

2197-1660

BRACKET;HOUSING

desc: SUPPORT

2шт.

25

2197-1661

BRACKET;HOUSING

desc: SUPPORT

3шт.

27

4197-2051

BRACKET;CONNECTOR

desc: SUPPORT

1шт.

28

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

6шт.

29

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

6шт.

35

2124-1509D1

CLIP d12/M8

desc: ATTACHE

19шт.

36

2124-1509D2

CLIP d18/M8

desc: ATTACHE

6шт.

37

2124-1509D3

CLIP d24/M8

desc: ATTACHE

13шт.

38

2124-1509D4

CLIP d30/M8

desc: ATTACHE

7шт.

39

2124-1509D5

CLIP d36/M8

desc: ATTACHE DE TUYAU

3шт.

40

2121-1305

NUT M8X1.25

desc: ECROU

49шт.

42

2124-1622D1

CLIP;BAND 150L

desc: ATTACHE

10шт.

43

2124-1622D2

CLIP;BAND 200L

desc: ATTACHE

30шт.

44

2124-1622D3

CLIP;BAND 280L

desc: ATTACHE

10шт.
