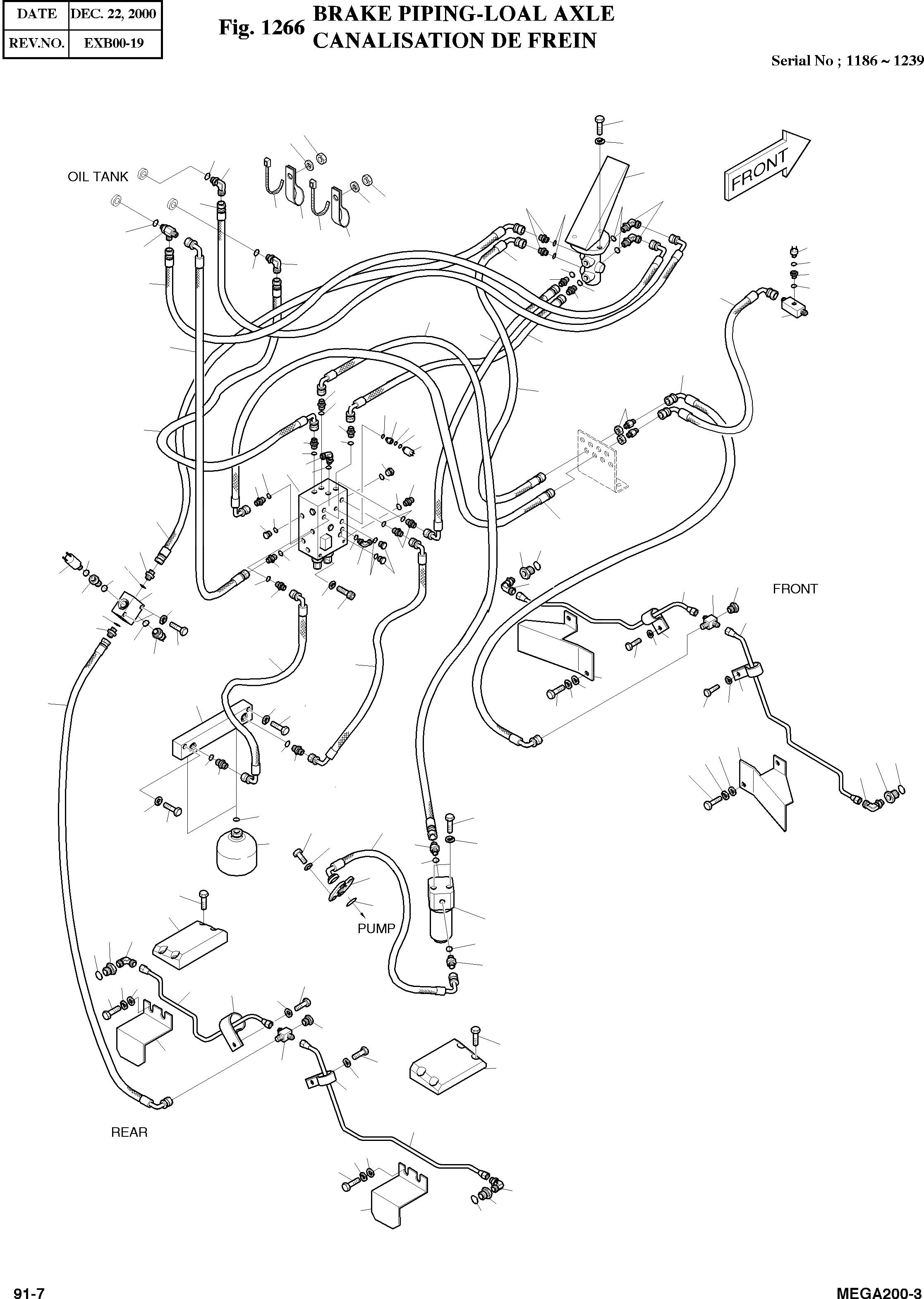

Запчасти Doosan Daewoo BRAKE PIPING-LOCAL AXLE BODY PARTS

-

400-00095

BRAKE PIPING

SC: D

-2шт.

1

4420-9455A

BRAKE VALVE

desc: SOUPAPE DE VERIN

1шт.

4

4474-9061

PILOT FILTER

desc: FILTRE DE PILOTE

1шт.

5

2460-9055

ACCUMULATOR

desc: RESERVOIR

2шт.

7

4549-9413

SWITCH;T/M CUT

desc: INTERRUPTEUR

1шт.

8

2549-9094

SWITCH;STOP

desc: INTERRUPTEUR

1шт.

9

2549-9093

SWITCH;L.P.W.S

desc: MANOSTAT

2шт.

11

4181-4193

ADAPTER PFO1/4

desc: RACCORD ADAPTATEUR

1шт.

14

2181-1126D7

ADAPTER PFO3/8

desc: RACCORD

10шт.

15

2181-1126D27

ADAPTER PFO3/8

desc: RACCORD ADAPTATEUR

1шт.

16

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

17

2181-1917D19

ADAPTER PFO1/2

desc: RACCORD

2шт.

22

S8000141

O-RING PFO3/8

desc: JOINT TORIQUE

19шт.

23

S8000111

O-RING PFO1/4

desc: JOINT TORIQUE

4шт.

25

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

9шт.

26

S2209361

BOLT;SOCKET M8X1.25X35

desc: BOULON A 6 PANS

3шт.

28

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

2шт.

31

S2213561

BOLT;SOCKET M10X1.5X95

desc: BOULON A 6 PANS CREUX

2шт.

32

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

12шт.

33

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.

35

S8180211

SEAL RING M14

desc: RONDELLE

2шт.

36

2181-1126D49

ADAPTER PF3/8

desc: RACCORD ADAPTATEUR

4шт.

37

S8040061

O-RING UNF9/16

desc: JOINT TORIQUE

6шт.

38

2181-1702D26

ELBOW PF3/8

desc: COUDE

2шт.

39

2181-1950D2

PLUG PFO3/8

desc: BOUCHON

4шт.

40

182-00003

MANIFOLD

desc: COLLECTEUR

1шт.

41

S2215861

BOLT;SOCKET M12X1.75X60

desc: BOULON A 6 PANS

2шт.

53

2181-2047

PLUG

desc: BOUCHON

2шт.

54

2181-2180

ADAPTER PF1/4-PFO1/4

desc: RACCORD ADAPTATEUR

2шт.

58

S8180201

PACKING

desc: JOINT

1шт.

59

4182-4018B

MANIFOLD

desc: COLLECTEUR

1шт.

60

2181-1951D16

TEE 2-PF3/8-PF3/8

desc: TE

1шт.

61

S8180251

SEAL RING M16

desc: RONDELLE D'ETANCHEITE

1шт.

62

2181-9089

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

2шт.

63

2180-1026D30

O-RING

desc: JOINT TORIQUE

1шт.

64

S2209061

BOLT;SOCKET M8X1.25X25

desc: BOULON A 6 PANS CREUX

4шт.

65

2184-1127D17

HOSE PF1/2-1000L

desc: TUYAU FLEXIBLE

1шт.

66

2184-1036D154

HOSE PF1/2-1100L

desc: TUYAU FLEXIBLE

1шт.

67

2184-1076D106

HOSE PF3/8-1500L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1076D105

HOSE PF3/8-1700L

desc: TUYAU FLEXIBLE

1шт.

69

2184-1036D291

HOSE PF3/8-1100L

desc: TUYAU FLEXIBLE

1шт.

70

2184-1036D180

HOSE PF3/8-900L

SERIAL: 1186-1234

3шт.

70

2184-1036D134

HOSE PF3/8-900L

SERIAL: 1235

3шт.

71

2184-1036D125

HOSE PF3/8-780L

SERIAL: 1186-1210

1шт.

71

2184-1036D192

HOSE PF3/8-1000L

SERIAL: 1211

1шт.

72

2184-1036D209

HOSE PF3/8-850L

SERIAL: 1186-1210

1шт.

72

2184-1036D291

HOSE PF3/8-1100L

SERIAL: 1211

1шт.

73

2184-1036D28

HOSE PF3/8-2000L

desc: TUYAU FLEXIBLE

1шт.

74

2184-1036D23

HOSE PF3/8-2800L

desc: TUYAU FLEXIBLE

2шт.

75

2184-1076D119

HOSE PF3/8-550L

desc: TUYAU FLEXIBLE

2шт.

86

S8000181

O-RING PF1/2

desc: JOINT TORIQUE

3шт.

87

2181-1126D6

ADAPTER PF1/2

desc: RACCORD ADAPTATEUR

2шт.

88

2181-1702D2

ELBOW 2-PF1/2

desc: COUDE

1шт.

89

2184-1036D187

HOSE PF1/2-1800L

desc: TUYAU FLEXIBLE

1шт.

90

S8180321

SEAL RING

desc: BAGUE D'ETANCHEITE

2шт.

91

S2209461

BOLT;SOCKET M8X1.25X40

desc: BOULON A 6 PANS CREUX

2шт.

93

2124-1509D5

CLIP

desc: ATTACHE DE TUYAU

2шт.

94

2124-1084D3

CLIP;BAND

desc: ATTACHE

2шт.

95

S4012533

NUT M8X1.25

desc: ECROU

2шт.

96

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

2шт.

97

S8180251

SEAL RING

desc: RONDELLE D'ETANCHEITE

4шт.

99

4420-9566

BRAKE & PILOT SUPPLY VALVE

desc: SOUPAPE DE DISTRIBUTION

1шт.

100

4423-1551

BLOCK;STOP

desc: BLOC

2шт.

101

S2215261

BOLT;SOCKET M12X1.75X30

desc: BOULON A 6 PANS CREUX

8шт.

102

4181-2642

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

103

2181-2718

ADAPTER

desc: ADAPTEUR

2шт.

104

S8040041

O-RING

desc: JOINT TORIQUE

1шт.

105

S8180221

SEAL RING

desc: RONDELLE D'ETANCHEITE

1шт.

106

4197-2400

BRACKET

desc: SUPPORT

2шт.

107

4181-2796A

TEE

desc: TE

2шт.

108

4182-1798

PIPE

desc: CONDUITE

2шт.

109

4182-1797

PIPE

desc: CONDUITE

2шт.

110

4627-1674

PLATE(L.H)

desc: PLAQUE

1шт.

111

4627-1675

PLATE(R.H)

desc: PLAQUE

1шт.

112

2181-1913D3

REDUCER

desc: REDUCTEUR

4шт.

113

2181-1918D1

ELBOW

desc: COUDE

4шт.

114

S0511753

BOLT M10X1.5X18

desc: BOULON A 6 PANS

4шт.

115

S5010613

WASHER;PLAIN

desc: RONDELLE

12шт.

116

2124-1509D9

CLIP

desc: CLIP

4шт.

117

S0508453

BOLT M8X1.25X12

desc: BOULON M8X1.25X12

4шт.

118

2184-1036D69

HOSE 3/8-1300L

desc: TUYAU FLEXIBLE

2шт.

119

2181-1702D5

ELBOW PF3/8

desc: COUDE

1шт.
