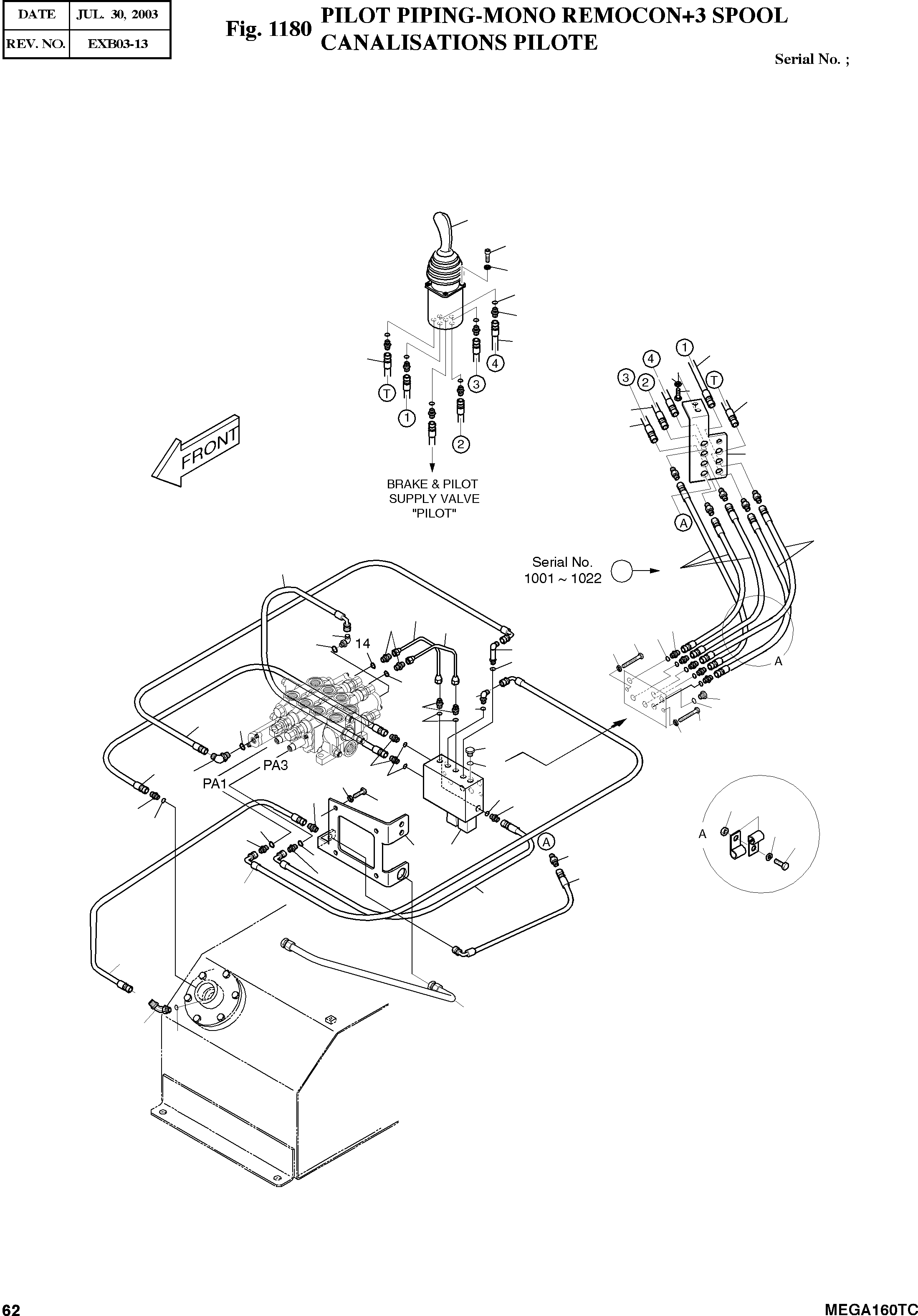

Запчасти Doosan Daewoo PILOT PIPING-MONO REMOCON+3 SPOOL BODY PARTS

-

400-00426

PILOT PIPING

SC: D

-2шт.

1

4420-1263

VALVE;REMOCON

SERIAL: 1001-1023

1шт.

1

426-00105

VALVE;REMOCON

SERIAL: 1024

1шт.

2

S2204861

BOLT;SOCKET M6X1.0X20

desc: BOULON A 6 PANS CREUX

4шт.

3

S5110301

WASHER;SPRING

desc: RONDELLE ELASTIQUE M6

4шт.

4

2181-1917D55

ADAPTER PF1/4-PF3/8

desc: RACCORD ADAPTATEUR

6шт.

5

S8180221

SEAL;RING

desc: RONDELLE D'ETANCHEITE

6шт.

6

2184-1026D236

HOSE PF3/8(ST-ST)-1100L

desc: TUYAU FLEXIBLE

2шт.

7

2184-1026D169

HOSE PF3/8(ST-ST)-1150L

desc: TUYAU FLEXIBLE

3шт.

8

4197-2473B

BRACKET

desc: SUPPORT

1шт.

9

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.

10

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

11

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

4шт.

12

2181-2718

ADAPTER 2PF3/8

desc: RACCORD ADAPTATEUR

6шт.

13

2184-1036D2

HOSE PF3/8(ST-90)-600L

desc: TUYAU FLEXIBLE

1шт.

14

S8040061

O-RING

desc: JOINT TORIQUE

6шт.

15

2181-1702D26

ELBOW UNF9/16-PF3/8

desc: COUDE

2шт.

16

2181-1126D49

ADAPTER UNF9/16-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

17

4181-4203

ADAPTER UNF9/16-M16X1.5

desc: RACCORD ADAPTATEUR

2шт.

18

2184-1026D66

HOSE PF3/8-600L

SERIAL: 1001-1022

5шт.

18

2184-1026D66

HOSE PF3/8-600L

SERIAL: 1023

2шт.

19

2184-1026D434

HOSE PF3/8-930L

desc: TUYAU FLEXIBLE

1шт.

20

S8000141

O-RING

desc: JOINT TORIQUE

16шт.

21

2181-1702D5

ELBOW 2-PF3/8

desc: COUDE EN S

1шт.

22

193-00395

PIPE

desc: CONDUITE

1шт.

23

2184-1026D163

HOSE PF3/8-950L

desc: TUYAU FLEXIBLE

1шт.

24

2181-2419D2

ELBOW 2-PF3/8

desc: COUDE

1шт.

25

2181-1126D134

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

26

2184-1036D209

HOSE PF3/8-850L

desc: TUYAU FLEXIBLE

1шт.

27

2181-1916D10

ADAPTER PF3/8-M16X1.5

desc: RACCORD ADAPTATEUR

2шт.

28

2181-1126D7

ADAPTER

desc: RACCORD

8шт.

29

2184-1036D291

HOSE PF3/8-1100L

desc: TUYAU FLEXIBLE

1шт.

30

195-01107A

BRACKET

desc: SUPPORT

1шт.

31

S0557053

BOLT M8X1.5X85

desc: BOULON A 6 PANS

2шт.

32

S4012533

NUT

desc: ECROU

3шт.

33

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

5шт.

34

2181-1950D2

PLUG

desc: BOUCHON

3шт.

35

4420-9454A

VALVE;PILOT

desc: VANNE

1шт.

36

140-00575A

PIPE

desc: CONDUITE

1шт.

37

2181-1702D40

ELBOW 2-PF3/8

desc: COUDE

1шт.

38

2184-1061D289

HOSE PF3/8-1070L

desc: TUYAU FLEXIBLE

1шт.

39

140-00574A

PIPE

desc: CONDUITE

1шт.

40

2124-1353D20

CLIP

desc: ATTACHE

6шт.

41

S0508553

BOLT M8X1.25X14

desc: BOULON A PANS

3шт.

42

2184-1036D114

HOSE PF3/8-960L

desc: TUYAU FLEXIBLE

1шт.

43

DS2053776

HOSE PF3/8-560L

SERIAL: 1023

3шт.
