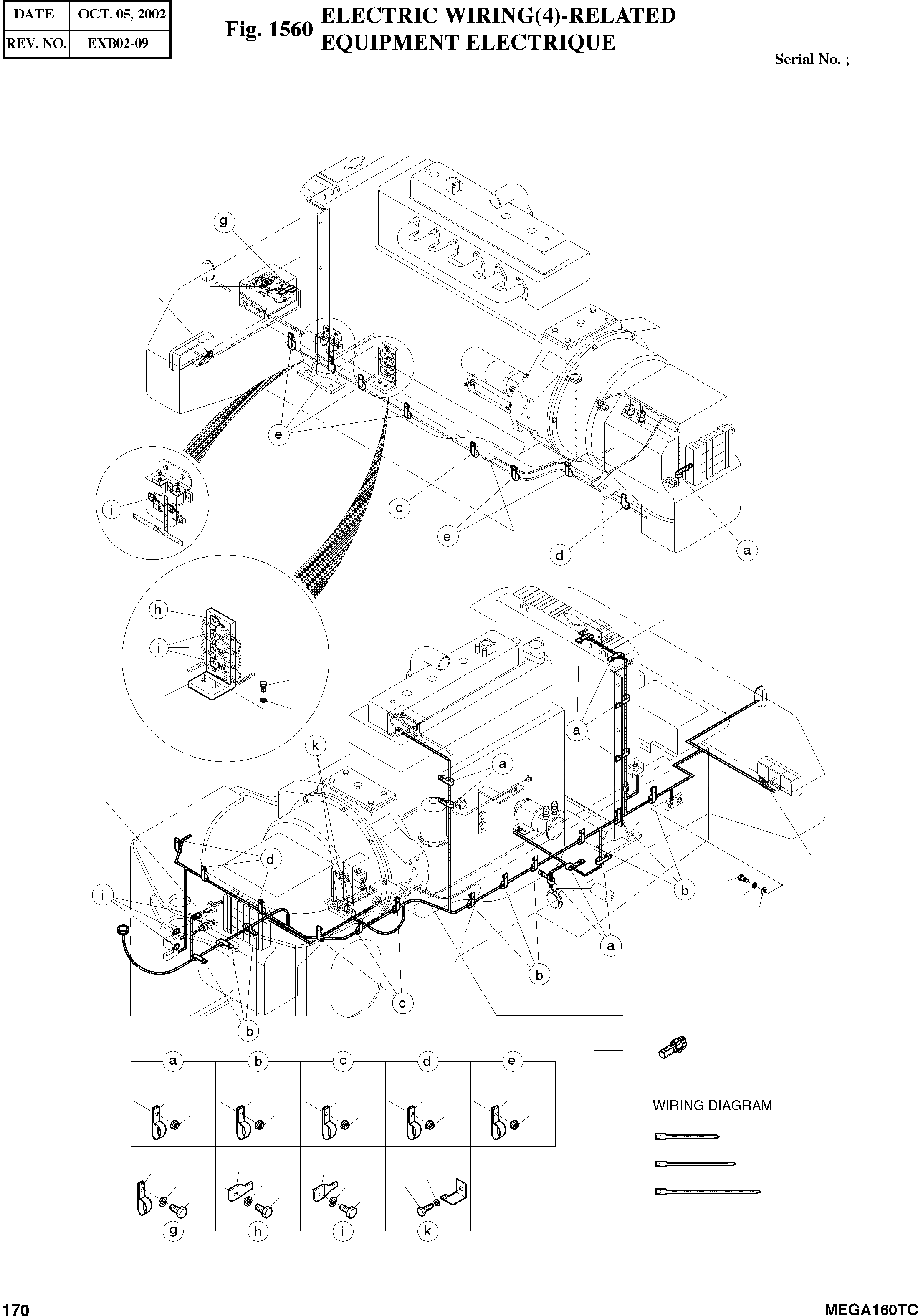

Запчасти Doosan Daewoo ELECTRIC WIRING(4)-RELATED BODY PARTS

-

500-00096

ELECTRIC PARTS

SC: D

-2шт.

1

599-00022A

WIRING DIAGRAM

desc: POSE DE FILES

1шт.

2

530-00120E

HARNESS;MAIN

SERIAL: 1001-1029

1шт.

2

530-00120H

HARNESS;MAIN

SERIAL: 1030

1шт.

2A

2548-1027

DIODE

desc: . DIODE

10шт.

6

4530-1758A

HARNESS;BACK BUZZER

desc: FAISCEAU

1шт.

7

530-00067

HARNESS;JOINT

desc: FAISCEAU

1шт.

17

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

1шт.

18

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

19

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

1шт.

20

2195-3500

BRACKET;HOUSING

desc: SUPPORT

2шт.

21

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

22

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE M6

2шт.

23

2197-1660

BRACKET;HOUSING

desc: SUPPORT

4шт.

24

2197-1661

BRACKET;HOUSING

desc: SUPPORT

8шт.

25

4197-2051

BRACKET;CONNECTOR

desc: SUPPORT

1шт.

26

S0508453

BOLT M8X1.25X12

desc: BOULON M8X1.25X12

12шт.

27

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

12шт.

30

2124-1509D1

CLIP D12/M8

desc: ATTACHE

10шт.

31

2124-1509D2

CLIP D18/M8

desc: ATTACHE

9шт.

32

2124-1509D3

CLIP D24/M8

desc: ATTACHE

5шт.

33

2124-1509D4

CLIP D30/M8

desc: ATTACHE

4шт.

34

2124-1509D5

CLIP D36/M8

desc: ATTACHE

6шт.

36

2121-1305

NUT

desc: ECROU

33шт.

37

2124-1622D1

CLIP;BAND 150L

desc: ATTACHE

10шт.

38

2124-1622D2

CLIP;BAND 200L

desc: ATTACHE

30шт.

39

2124-1622D3

CLIP;BAND 280L

desc: ATTACHE

10шт.
