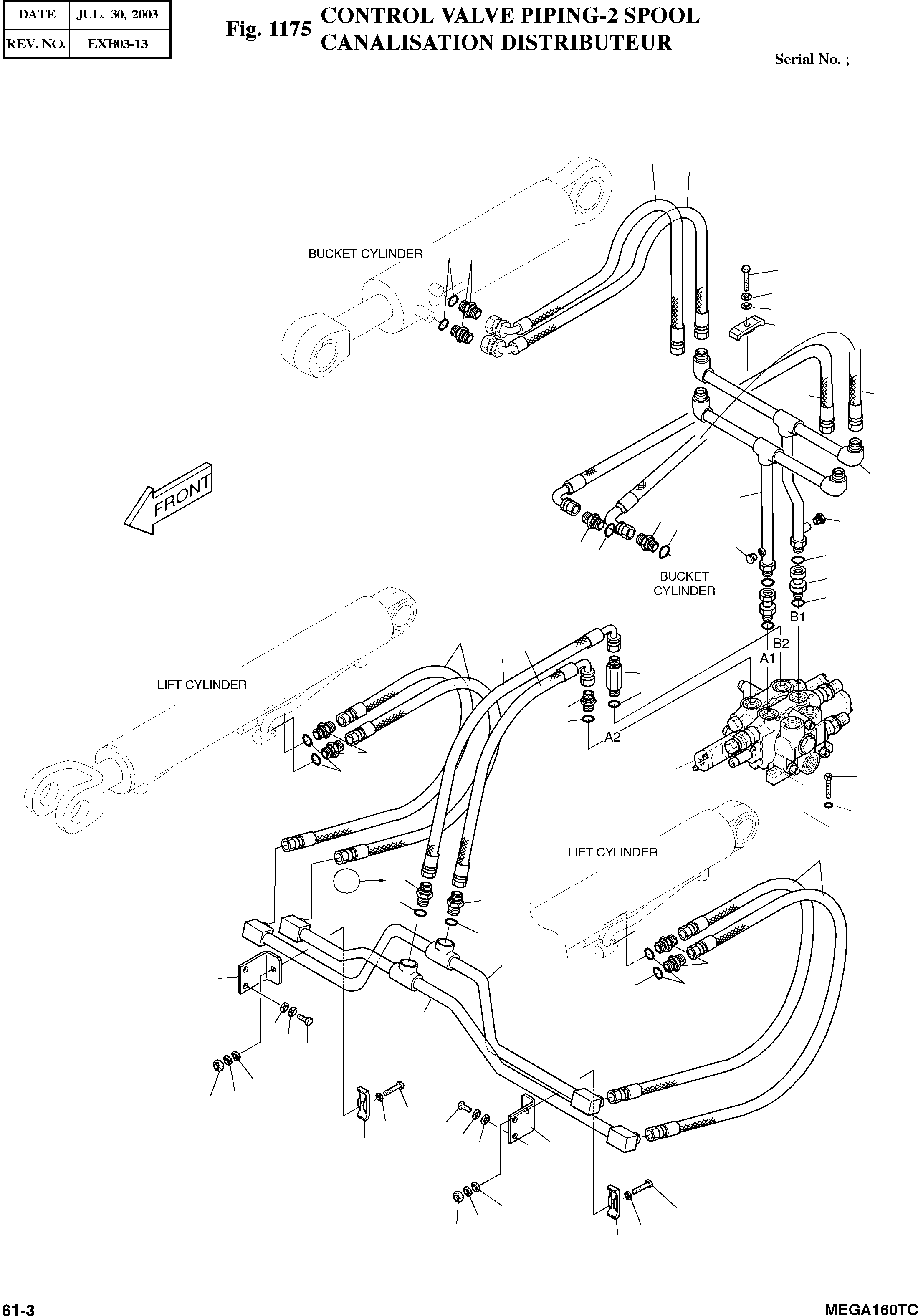

Запчасти Doosan Daewoo CONTROL VALVE PIPING-2 SPOOL BODY PARTS

-

400-00725

CONTROL VALVE PIPING

SC: D

-2шт.

1

4197-2419A

BRACKET

desc: SUPPORT

2шт.

2

2124-1025D2

CLAMP;PIPE

desc: COLLIER

4шт.

3

4182-1790C

PIPE

desc: CONDUITE

1шт.

4

4182-1789B

PIPE

desc: CONDUITE

1шт.

5

2184-1036D440

HOSE PF3/4(ST-90)-780L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1036D109

HOSE PF3/4(ST-90)-565L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1054D57

HOSE PF1/2(ST-ST)-1050L

desc: TUYAU FLEXIBLE

4шт.

8

420-00144

VALVE;CONTROL 2-SPOOL

desc: TIROIR DE COMMANDE

1шт.

9

2181-2566D11

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

10

S8030121

O-RING

desc: JOINT TORIQUE

2шт.

11

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: RACCORD

8шт.

12

2181-1126D88

ADAPTER PFO1/2-PF3/4

SERIAL: 1001-1026

1шт.

12

2181-1126D88

ADAPTER PFO1/2-PF3/4

SERIAL: 1027

2шт.

13

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

4шт.

14

S4012633

NUT

desc: ECROU M10X1.5

2шт.

15

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

6шт.

16

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

17

S0511853

BOLT M10X20

desc: BOULON A 6 PANS

4шт.

18

S8000181

O-RING

desc: JOINT TORIQUE

8шт.

19

S8040141

O-RING

desc: JOINT TORIQUE

6шт.

20

S2215561

BOLT;SOCKET M12X1.75X15

desc: SUPPORT

3шт.

21

S5110701

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

22

193-00127A

PIPE

SERIAL: 1001-1026

1шт.

22

193-00127C

PIPE

SERIAL: 1027

1шт.

23

193-00128A

PIPE

SERIAL: 1001-1026

1шт.

23

193-00128B

PIPE

SERIAL: 1027

1шт.

24

DS2055628

HOSE PF1/2-1600L

desc: TUYAU FLEXIBLE

2шт.

25

2181-1126D140

ADAPTER UN1 3/16-PF3/4

desc: RACCORD ADAPTATEUR

1шт.

26

DS2213158

ADAPTER UN1 3/16-PF3/4

desc: RACCORD ADAPTATEUR

1шт.

28

2181-1126D135

ADAPTER PF1/2-PF3/4

SERIAL: 1001-1026

1шт.

29

DS2055629

HOSE PF1/2-1650L

desc: TUYAU FLEXIBLE

2шт.

30

2181-2047

PLUG

desc: BOUCHON

2шт.
