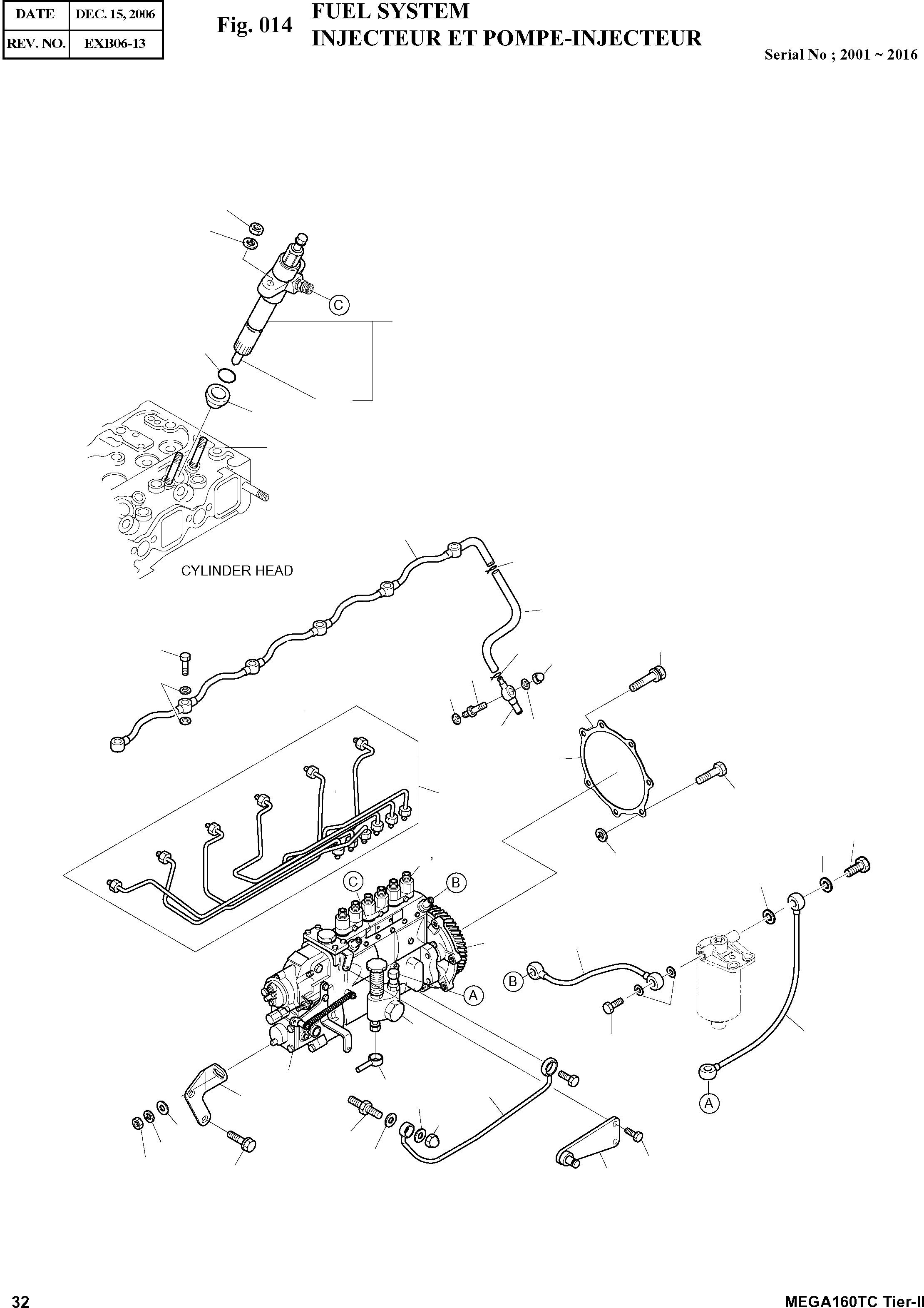

Запчасти Doosan Daewoo FUEL SYSTEM ENGINE PARTS

101

65.10101-7295

NOZZLE HOLDER ASS'Y

desc: INJECTEUR

6шт.

103

65.10102-6044

NOZZLE

desc: . BUSE

1шт.

104

65.96507-0004

RING;SEAL

SERIAL: 020624

6шт.

104

65.96507-0004A

RING;SEAL

SERIAL: 020625

6шт.

105

65.96507-0046

RING;SEAL

desc: ANNEAU DU JOINT

6шт.

106

06.06125-8711

BOLT;STUD

SERIAL: 010822

12шт.

106

65.90201-0099

BOLT;STUD

SERIAL: 010823

12шт.

107

06.11063-8214

NUT;HEX. M8

desc: ECROU

12шт.

108

06.16731-2107

WASHER;SPRING

desc: RONDELLE ELASTIQUE

12шт.

201

65.10301-6144

PRESSURE PIPE ASS'Y

desc: CARTOUCHE DE PRESSION

1шт.

301

65.11101-7321

PUMP;INJECTION

SERIAL: 020402

1шт.

301

65.11101-7380

PUMP;INJECTION

SERIAL: 020403

1шт.

301A

65.12101-7004S

FEED PUMP

desc: . POMPE D'INJECTION

1шт.

301B

31151-322S

PLUNGER

desc: . POMPE D'INJECTION

6шт.

301C

65.131160-1120

VALVE;DELIVERY

desc: . POMPE D'INJECTION

1шт.

301E

156636-5620

COUPLING

desc: . POMPE D'INJECTION

1шт.

308

65.05701-5200

PIPE;OIL

desc: CONDUITE

1шт.

309

65.98155-0011

UNION;HOLLOW

desc: CREUSE UNION

1шт.

310

06.12172-9314

NUT;CAP

desc: ECROU

1шт.

311

06.56180-0714

RING;SEAL

desc: ANNEAU DU JOINT

2шт.

330

65.11605-5053

BRACKET

desc: GRAISSEUR

1шт.

331

06.01923-2914

BOLT;HEX M6X22

desc: BOULON A 6 PANS

2шт.

401

06.01913-3122

BOLT ASS'Y M8X55

desc: BOULON A 6 PANS

7шт.

402

06.01913-3124

BOLT ASS'Y M8X65

desc: BOULON A 6 PANS

1шт.

403

06.11063-8214

NUT;HEX. M8

desc: ECROU

1шт.

406

65.11401-0002C

BRACKET;REAR

desc: SUPPORT

1шт.

407

06.01953-3213

BOLT ASS'Y M10X1.25X20

desc: BOULON A 6 PANS

2шт.

408

06.15010-2312

WASHER;PLAIN

desc: RONDELLE

1шт.

409

06.16731-2108

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

410

06.11063-9215

NUT M10X1.25

desc: ECROU

1шт.

411

65.11902A0001

GASKET

desc: RONDELLE ELASTIQUE

1шт.

501

65.12301-5022

PIPE;FUEL(RETURN)

desc: CONDUITE

1шт.

502

65.96341-0112

HOSE;FUEL

desc: TUYAU FLEXIBLE

1шт.

503

65.96341-0111

HOSE;FUEL

desc: TUYAU FLEXIBLE

1шт.

504

06.78144-2204

SCREW;HOLLOW

desc: VIS CREUSE

2шт.

505

06.56190-0706

RING;SEAL

desc: ANNEAU DU JOINT

4шт.

508

65.12301-5824

PIPE;FUEL(RETURN)

desc: CONDUITE

1шт.

509

65.98150-0015B

SCREW;HOLLOW

desc: VIS CREUSE

6шт.

510

06.56180-0712

RING;SEAL

desc: ANNEAU DU JOINT

12шт.

511

65.96301-0176

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

512

65.97401-0089

CLIP LEAK OFF

desc: FUITE DE CLIP OUTRE DE

2шт.

513

65.12301-5825

PIPE;FUEL(RETURN)

desc: CONDUITE

1шт.

514

65.11120-5001

OVER FLOW VALVE ASS'Y

desc: CLAPET DE DECHARGE

1шт.

515

65.96507-0010

RING;SEAL

desc: ANNEAU DU JOINT

3шт.

516

06.12172-9316

NUT;CAP M14X1.5

desc: ECROU

1шт.
