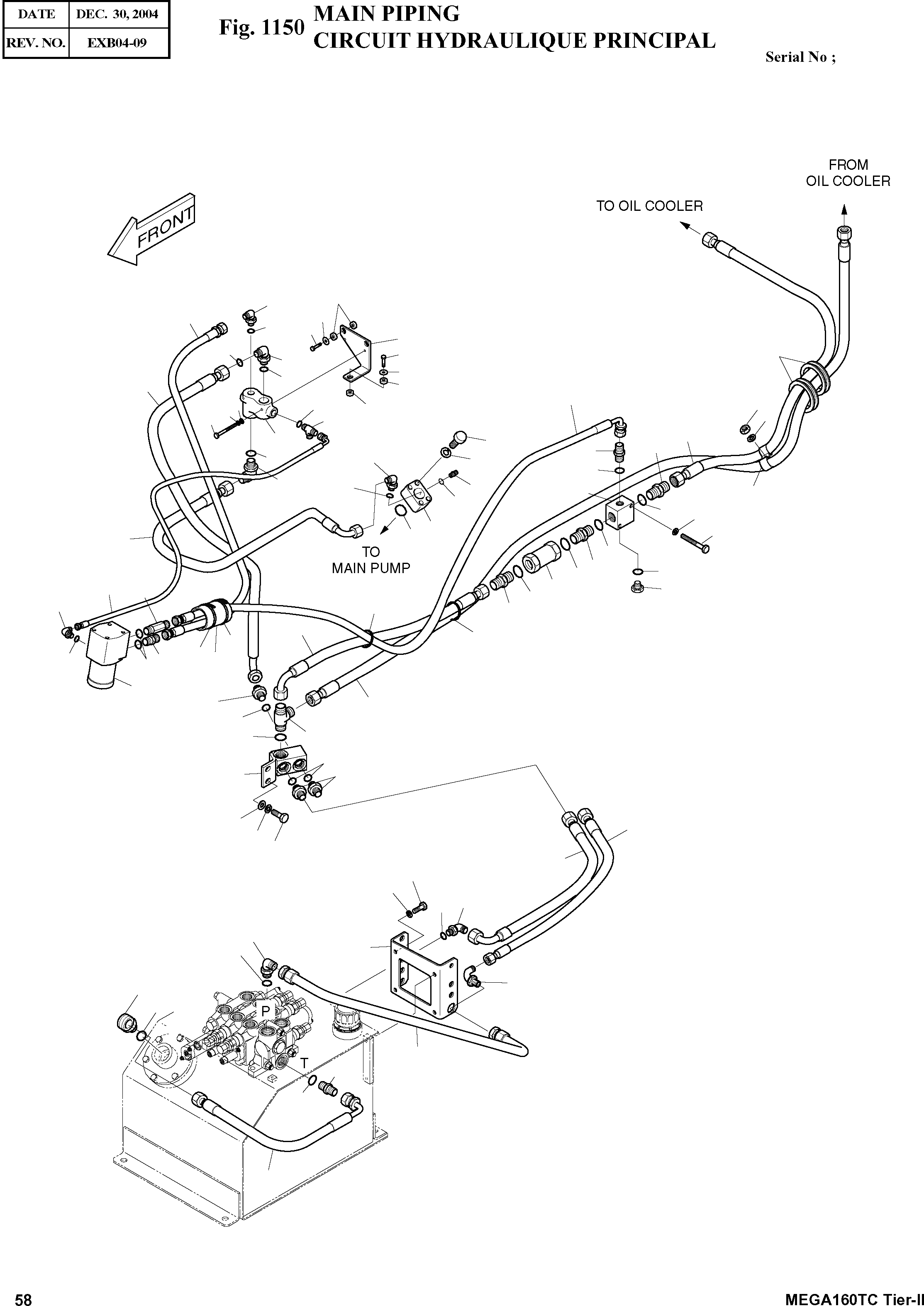

Запчасти Doosan Daewoo MAIN PIPING BODY PARTS

-

400-00420

MAIN PIPING

SC: D

-2шт.

1

4420-9375

VALVE;PRIORITY

SERIAL: 2001-2023

1шт.

1

420-00170

VALVE;PRIORITY

SERIAL: 2024

1шт.

2

S0557053

BOLT M8X1.25X85

desc: BOULON A 6 PANS

2шт.

3

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

4

S5010513

WASHER;PLAIN

desc: RONDELLE PLATE

2шт.

5

2181-1702D2

ELBOW PFO1/2-PF1/2

desc: COUDE

1шт.

6

40501-00340P

VALVE;CHECK

desc: VANNE DE CONTROLE

1шт.

7

2181-1938D16

ADAPTER PFO1-PFO3/4

desc: RACCORD ADAPTATEUR

1шт.

8

2181-1126D22

ADAPTER PFO1-PF3/4

desc: RACCORD ADAPTATEUR

1шт.

9

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

5шт.

10

423-00068

BLOCK

desc: BLOC

1шт.

11

2180-1026D19

O-RING

desc: JOINT TORIQUE

1шт.

12

S2212961

BOLT;SOCKET M10X65

desc: BOULON A 6 PANS CREUX

4шт.

13

S5110601

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

14

2181-1126D6

ADAPTER PF1/2-PFO1/2

desc: RACCORD ADAPTATEUR

2шт.

15

S8000181

O-RING

desc: JOINT TORIQUE

5шт.

17

S8040161

O-RING

desc: JOINT TORIQUE

2шт.

18

2181-1126D105

ADAPTER PFO3/4-PF3/4

desc: RACCORD ADAPTATEUR

1шт.

19

2181-1951D1

TEE PF1/4-PFO1/4-PF1/4

desc: TE

1шт.

20

S8000111

O-RING

desc: JOINT TORIQUE

3шт.

21

2181-1126D1

ADAPTER PFO3/4-PF3/4

desc: RACCORD ADAPTATEUR

3шт.

22

2181-1951D34

TEE PFO3/4-2PF3/4

desc: TE

1шт.

23

2181-1126D83

ADAPTER PF1/2-PFO1/2

desc: RACCORD ADAPTATEUR

1шт.

24

2181-1702D4

ELBOW PF1/4-PFO1/4

desc: COUDE

1шт.

25

4197-2472E

BRACKET

desc: SUPPORT

1шт.

26

S0512253

BOLT M10X30

desc: BOULON A 6 PANS

4шт.

27

181-00424

ELBOW 2PF3/4

desc: COUDE

1шт.

28

2181-1702D11

ELBOW PF1-PFO1

desc: COUDE

1шт.

29

S8000291

O-RING

desc: JOINT TORIQUE

3шт.

30

2181-1702D39

ELBOW

desc: COUDE

1шт.

31

193-00313A

PIPE

desc: CONDUITE

1шт.

32

4423-1557B

BLOCK

desc: BLOC

1шт.

33

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

2шт.

34

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

35

S5010713

WASHER;PLAIN

desc: RONDELLE

2шт.

36

4420-9607

UNIT;STEER

desc: ORBITROL

1шт.

37

2184-1036D368

HOSE PF3/4(ST-90)-870L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1026D431

HOSE PF1/2(ST-ST)-1350L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1036D283

HOSE PF3/4(ST-90)-800L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1036D59

HOSE PF1/4(ST-90)-1200L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1036D383

HOSE PF3/4(ST-90)-820L

desc: TUYAU FLEXIBLE

1шт.

42

2184-1036D316

HOSE PF1/2(ST-90)-2050L

desc: TUYAU FLEXIBLE

1шт.

43

DS2053769

HOSE PF3/4(ST-ST)-830L

desc: TUYAU FLEXIBLE

1шт.

44

2184-1036D132

HOSE PF1(90-ST)-600L

desc: TUYAU FLEXIBLE

1шт.

45

2181-1702D4

ELBOW PF1/4-PFO1/4

desc: COUDE

1шт.

46

2184-1026D214

HOSE PF3/4(ST-ST)-2400L

desc: TUYAU FLEXIBLE

1шт.

47

2184-1026D212

HOSE PF3/4(ST-ST)-3400L

desc: TUYAU FLEXIBLE

1шт.

48

2184-1036D392

HOSE PF3/4(ST-90)-1030L

desc: TUYAU FLEXIBLE

1шт.

49

4423-1569

BLOCK

desc: BLOC

1шт.

50

S0556653

BOLT M8X1.25X65

desc: BOULON A 6 PANS

2шт.

51

2181-1126D5

ADAPTER PF1-UNF1 5/16

desc: RACCORD ADAPTATEUR

1шт.

52

2181-1702D1

ELBOW PF3/4-PFO3/4

desc: COUDE

3шт.

53

2124-1353D15

CLIP

desc: ATTACHE

2шт.

55

S4012633

NUT M10X1.5

desc: ECROU

1шт.

56

2160-1004D54

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

2шт.

57

2161-2255

PLATE;RUBBER

desc: PROFILE CAOUTCHOUC

1шт.

58

2124-1084D1

CLIP;BAND

desc: ATTACHE

4шт.

59

S8000241

O-RING

desc: JOINT TORIQUE

10шт.

60

2181-1950D3

PLUG

desc: BOUCHON

1шт.

61

195-01590

BRACKET

SERIAL: 2001-2025

1шт.

61

195-01590A

BRACKET

SERIAL: 2026

1шт.

62

S0558553

BOLT M10X1.5X50

desc: BOULON A 6 PANS

3шт.

63

2512-1077

RUBBER;CUSHION

desc: COUSSIN

6шт.

64

2114-1058D62

WASHER

desc: RONDELLE

3шт.

65

2181-1702D49

ELBOW PF3/4-PFO3/4

desc: COUDE

1шт.
