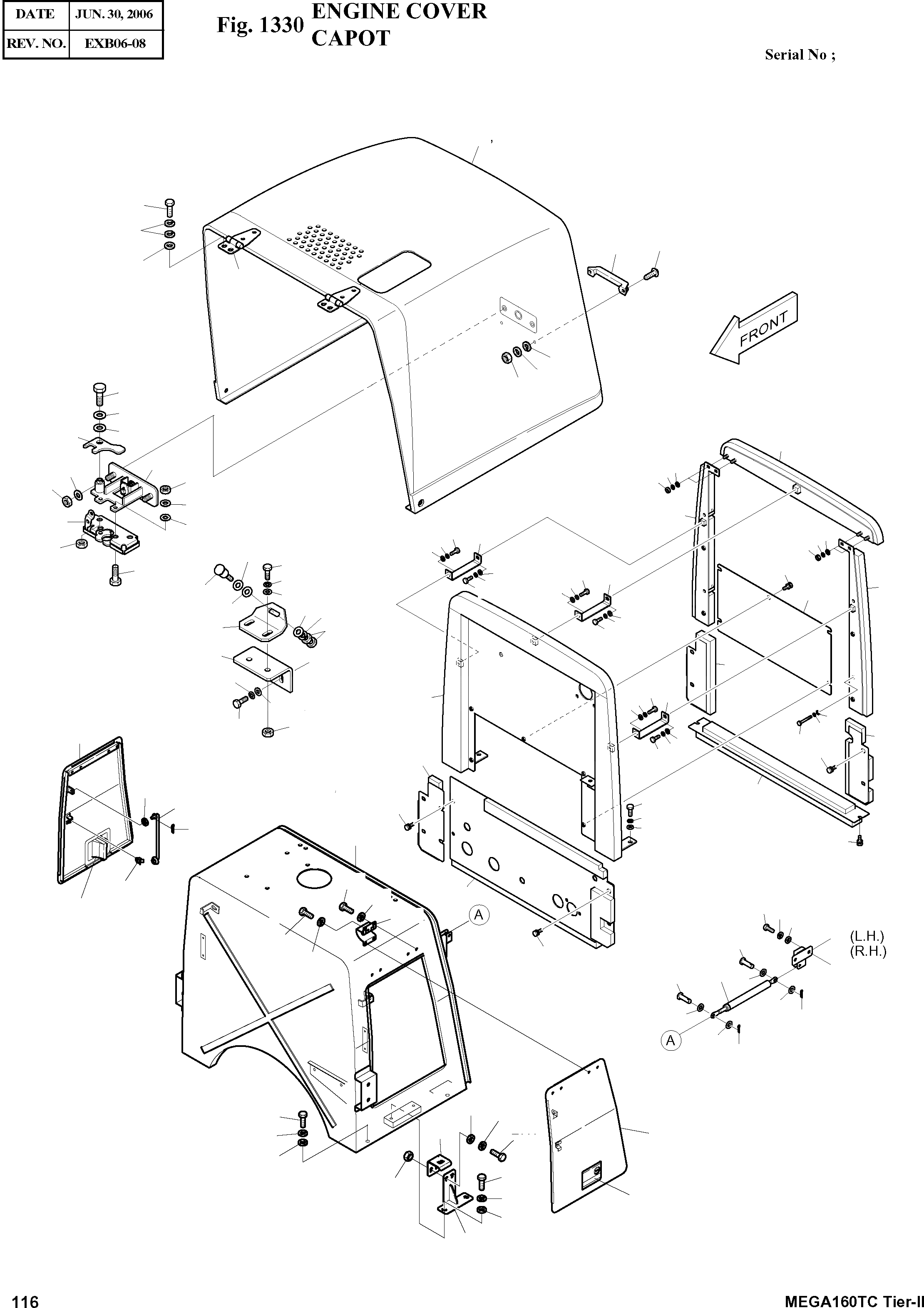

Запчасти Doosan Daewoo ENGINE COVER BODY PARTS

-

464-00072

COVER ASS'Y

SC: D

-2шт.

1

464-00073B

COVER;BAFFLE

SERIAL: 2001-2015

1шт.

1

464-00073C

COVER;BAFFLE

SERIAL: 2016

1шт.

2

621-02005B

COVER

desc: COUVERCLE

1шт.

3

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

8шт.

4

S5010613

WASHER;PLAIN

desc: RONDELLE

10шт.

5

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

22шт.

6

S0515153

BOLT 12X1.75X28

desc: BOULON A 6 PANS

4шт.

7

S5010713

WASHER;PLAIN

desc: RONDELLE

8шт.

8

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

8шт.

9

621-01987C

COVER

desc: COUVERCLE

1шт.

10

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

6шт.

11

464-00015A

COVER;BAFFLE

SERIAL: 2001-2015

1шт.

11

464-00015B

COVER;BAFFLE

SERIAL: 2016

1шт.

12

464-00071A

COVER;BAFFLE

desc: COUVERCLE

1шт.

13

464-00016A

COVER;BAFFLE

SERIAL: 2001-2015

1шт.

13

464-00016B

COVER;BAFFLE

SERIAL: 2016

1шт.

14

621-01998A

COVER

desc: COUVERCLE

1шт.

15

621-00887A

COVER

desc: COUVERCLE

1шт.

16

621-01999

PLATE

desc: PLAQUE

1шт.

17

195-01892A

BRACKET

desc: SUPPORT

3шт.

18

S0556553

BOLT M8X1.25X60

desc: BOULON A 6 PANS

4шт.

19

S5010513

WASHER;PLAIN

desc: RONDELLE

8шт.

20

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

9шт.

21

2114-1058D45

WASHER

desc: RONDELLE

10шт.

22

S4012633

NUT

desc: ECROU

6шт.

23

2120-2196D1

BOLT;SET M10X1.5X20

desc: BOULON A 6 PANS

17шт.

24

621-02158

COVER;BAFFLE

desc: COUVERCLE

1шт.

25

621-02049B

BONNET ASS'Y

SERIAL: 2001-2015

1шт.

25

621-02049C

BONNET ASS'Y

SERIAL: 2016

1шт.

25A

621-02047A

BONNET

desc: . COUVERCLE

1шт.

25B

1.162-00001

RUBBER;CUSHION

desc: . CAOUTCHOUC

1шт.

25C

FOAM T=20

desc: . EPONGE

1шт.

25D

FOAM T=20

desc: . EPONGE

1шт.

25E

FOAM T=20

desc: . EPONGE

1шт.

25F

4627-1898A

PLATE

desc: . PLAQUE

1шт.

25G

S0558853

BOLT M10X1.5X65

desc: . BOULON A 6 PANS

2шт.

25H

S0558353

BOLT M10X1.5X40

desc: . BOULON A 6 PANS

2шт.

25I

S4012633

NUT M10X1.5

desc: . ECROU

4шт.

25J

S5102603

WASHER;SPRING M10

desc: . RONDELLE ELASTIQUE

8шт.

25K

S5010613

WASHER;PLAIN M10

desc: . RONDELLE

4шт.

25L

171-00001A

HINGE

desc: . PAUMELLE

2шт.

25M

S0509053

BOLT M8X1.25X25

desc: . BOULON A 6 PANS

2шт.

25N

S5010513

WASHER;PLAIN M8

desc: . RONDELLE

4шт.

25O

S4012533

NUT M8X1.25

desc: . ECROU

2шт.

25P

S5102503

WASHER;SPRING M8

desc: . RONDELLE ELASTIQUE

2шт.

25Q

621-02050

PLATE;R.H

desc: . PLAQUE

1шт.

25R

S0508853

BOLT M8X1.25X20

desc: . BOULON A 6 PANS

4шт.

25S

2114-1058D56

WASHER

desc: . RONDELLE

4шт.

25T

621-02051

PLATE;L.H

desc: . PLAQUE

1шт.

26

440-00323

GAS SPRING P=70K

desc: VERIN DE RESSORT

2шт.

27

4627-1924H

E/G COVER ASS'Y

desc: CAPOT

1шт.

27B

4627-1668A

COVER;SIDE(L.H)

desc: . COUVERCLE

1шт.

27BA

4125-9048

LOCK

1шт.

27C

4627-1669A

COVER;SIDE(R.H)

desc: . COUVERCLE

1шт.

27CA

4125-9048

LOCK

1шт.

27D

4145-1300C

ROD;STAY

desc: . TIGE

2шт.

27E

4131-9002

ROD;HOLDER

desc: . TIGE

2шт.

27F

4197-2681A

BRACKET;LATCH

desc: . SUPPORT

2шт.

27G

4171-1120

HINGE

desc: . PAUMELLE

4шт.

27H

S4012633

NUT M10X1.5

desc: . ECROU M10X1.5

4шт.

27I

4197-2682A

BRACKET;LATCH

desc: . SUPPORT

2шт.

27J

S5102503

WASHER;SPRING M8

desc: . RONDELLE ELASTIQUE M8

8шт.

27K

S5010513

WASHER;PLAIN M8

desc: . RONDELLE M8

2шт.

27L

S5102603

WASHER;SPRING M10

desc: . RONDELLE ELASTIQUE M10

16шт.

27M

S5010613

WASHER;PLAIN M10

desc: . RONDELLE

10шт.

27N

S0512153

BOLT M10X1.5X28

desc: . VIS

4шт.

27O

S0508453

BOLT M8X1.25X12

desc: . BOULON M8X1.25X12

8шт.

27P

S0512053

BOLT M10X1.5X25

desc: . BOULON A 6 PANS

4шт.

27Q

S5735241

PIN;SPLIT D1.8X15L

desc: . GOUPILLE FENDUE

2шт.

27R

S0511453

BOLT M10X1.5X12

desc: . BOULON A 6 PANS

8шт.

28

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

4шт.

29

S5760231

PIN

desc: GOUPILLE

4шт.

30

S5735241

PIN;SPLIT

desc: GOUPILLE

4шт.

31

4197-2442

BRACKET;L.H

desc: SUPPORT

1шт.

32

4197-2443

BRACKET;R.H

desc: SUPPORT

1шт.

33

195-01079

BRACKET

desc: SUPPORT

1шт.

34

S0555953

BOLT M8X1.25X30

desc: BOULON A 6 PANS

1шт.

35

2114-1058D29

WASHER

desc: RONDELLE

3шт.

36

2142-1094

STRIKE

desc: FRAPPER

1шт.

37

S4012533

NUT

desc: ECROU

4шт.

38

2172-9025

HANDLE

desc: POIGNEE

1шт.

39

S3450991

SCREW M6X1.0X25

desc: VIS

2шт.

40

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

41

S5010313

WASHER;PLAIN

desc: RONDELLE

5шт.

42

S4012333

NUT

desc: ECROU

5шт.

43

2143-1003

LOCK;COVER

desc: COUVERCLE

1шт.

44

195-00283

BRACKET

desc: SUPPORT

1шт.

45

195-01078

BRACKET

desc: SUPPORT

1шт.

46

S0509053

BOLT M8X1.25

desc: BOULON A 6 PANS

2шт.

47

S0505353

BOLT M6X1.0X35

desc: BOULON A 6 PANS

2шт.

48

195-00280

BRACKET

desc: SUPPORT

1шт.

49

2114-1058D69

WASHER

desc: RONDELLE

1шт.

50

S0553853

BOLT M6X1.0X60

desc: BOULON A 6 PANS

1шт.

51

2114-1058D86

WASHER

desc: RONDELLE

8шт.
