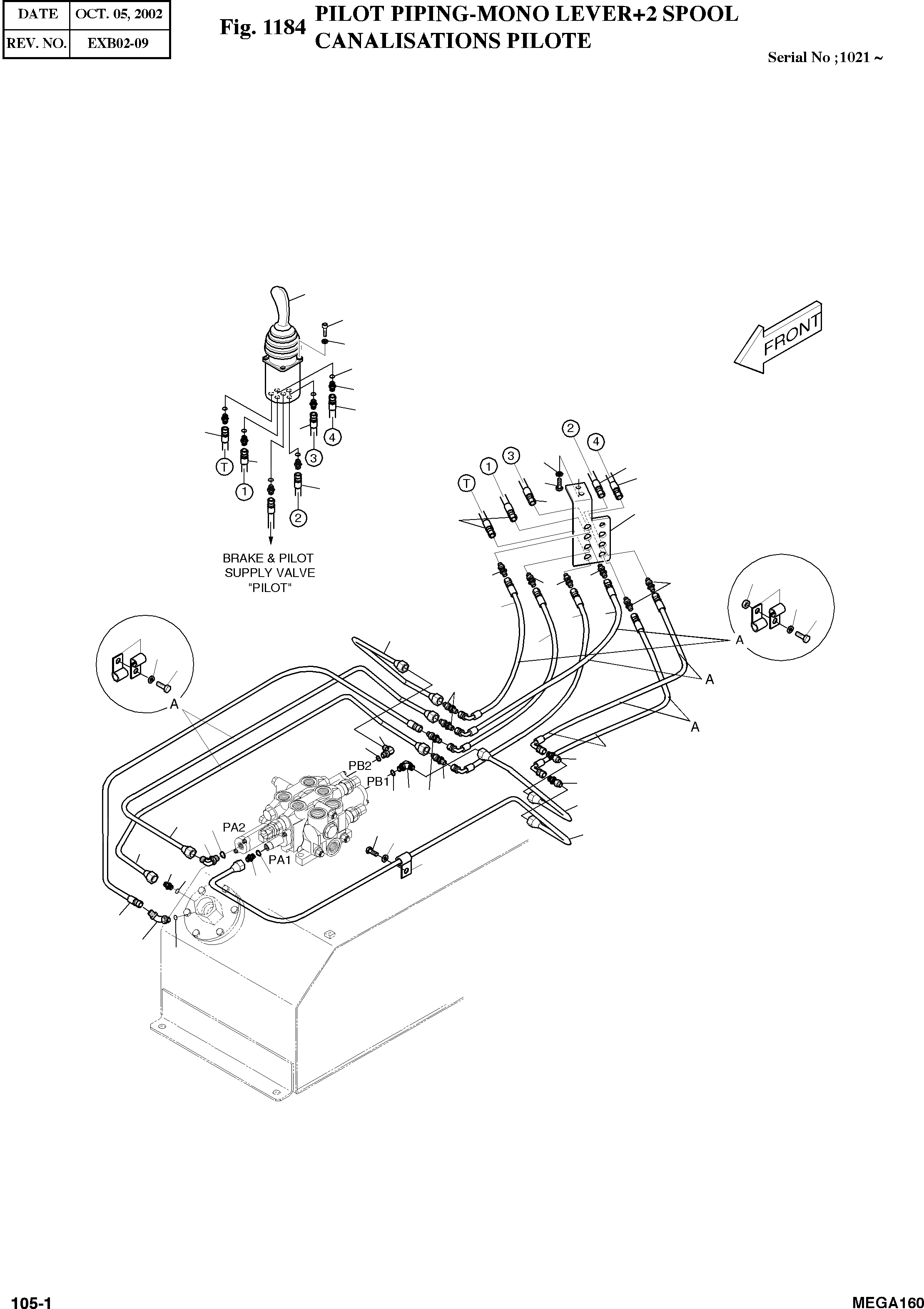

Запчасти Doosan Daewoo PILOT PIPING-MONO LEVER+2 SPOOL BODY PARTS

-

400-00609

PILOT PIPING

SERIAL: 1021

-2шт.

1

4420-1263

VALVE;REMOCON

SERIAL: 1021-1065

1шт.

1

426-00105

VALVE;REMOCON

SERIAL: 1066

1шт.

2

S2204861

BOLT;SOCKET M6X1.0X20

desc: BOULON A 6 PANS CREUX

4шт.

3

S5110301

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

4

2181-1917D55

ADAPTER PF1/4-PF3/8

desc: RACCORD ADAPTATEUR

6шт.

5

S8180221

RING;SEAL

desc: RONDELLE D'ETANCHEITE

6шт.

6

2184-1026D236

HOSE PF3/8-1100L

desc: TUYAU FLEXIBLE

2шт.

7

2184-1026D169

HOSE PF3/8-1150L

desc: TUYAU FLEXIBLE

3шт.

8

4197-2473B

BRACKET

desc: SUPPORT

1шт.

9

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.

10

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

11

2181-1916D10

ADAPTER PFO3/8 M16X1.5

desc: RACCORD ADAPTATEUR

1шт.

12

2181-2718

ADAPTER PF3/8-PF3/8

desc: RACCORD ADAPTATEUR

7шт.

13

2184-1036D2

HOSE PF3/8-600L

desc: TUYAU FLEXIBLE

4шт.

14

S8040061

O-RING

desc: JOINT TORIQUE

4шт.

15

4181-4203

ADAPTER UNF 9/16-M16X1.5

desc: RACCORD ADAPTATEUR

1шт.

16

4181-2786

ADAPTER PF3/8-M16X1.5

desc: RACCORD ADAPTATEUR

5шт.

17

2181-2185D3

ELBOW UNF 9/16-M16X1.5

desc: COUDE

3шт.

18

2184-1036D256

HOSE PF3/8-960L

desc: TUYAU FLEXIBLE

2шт.

19

140-00755

PIPE

desc: CONDUITE

1шт.

20

140-00754

PIPE

desc: CONDUITE

1шт.

21

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

22

140-00756

PIPE

desc: CONDUITE

1шт.

23

140-00757

PIPE

desc: CONDUITE

1шт.

24

140-00758

PIPE

desc: CONDUITE

1шт.

25

S4012533

NUT M8X1.25

desc: ECROU

3шт.

26

S5102503

WASHER;SPRING M8

desc: FILTRE

5шт.

27

2181-2419D2

ELBOW 2-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

28

2124-1353D2

CLIP

desc: ATTACHE

3шт.

29

2124-1353D20

CLIP

desc: ATTACHE

6шт.

30

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

5шт.

31

2184-1026D163

HOSE PF3/8-950L

desc: TUYAU FLEXIBLE

1шт.
