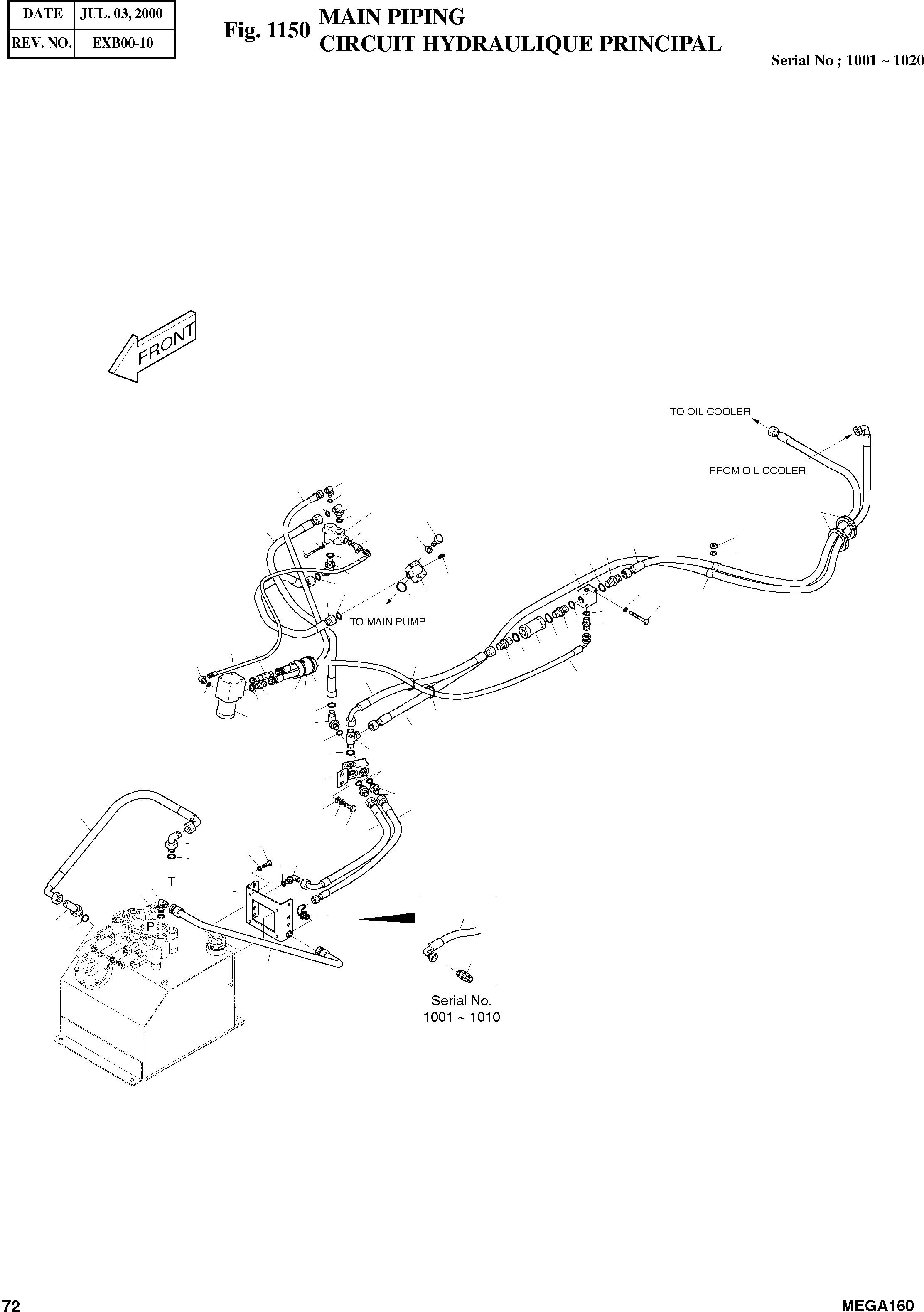

Запчасти Doosan Daewoo MAIN PIPING BODY PARTS

-

4400-2070

MAIN PIPING

SERIAL: 1001-1020

-2шт.

1

4420-9375

VALVE;PRIORITY

desc: SOUPAPE DE PRIORITE

1шт.

2

S0556953

BOLT M8X1.25X80

desc: BOULON A 6 PANS

2шт.

3

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

4

S5010513

WASHER;PLAIN M8

desc: RONDELLE

2шт.

5

2181-1702D2

ELBOW PFO1/2-PF1/2

desc: COUDE

1шт.

6

40501-00340

VALVE;CHECK

SERIAL: 1001-1010

1шт.

6

40501-00340P

VALVE;CHECK

SERIAL: 1011

1шт.

7

2181-1938D16

ADAPTER PFO1-PFO3/4

desc: RACCORD ADAPTATEUR

1шт.

8

2181-1126D22

ADAPTER PFO1-PF3/4

desc: RACCORD ADAPTATEUR

1шт.

9

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

5шт.

10

4181-2790B

FLANGE

desc: BRIDE

1шт.

11

2180-1026D23

O-RING SAE1/4-5000PSI

desc: JOINT TORIQUE

1шт.

12

S2215961

BOLT;SOCKET M12X1.75X65

desc: BOULON A 6 PANS CREUX

4шт.

13

S5110701

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

14

2181-1126D6

ADAPTER;S PF1/2-PFO1/2

desc: RACCORD ADAPTATEUR

2шт.

15

S8000181

O-RING P18

desc: JOINT TORIQUE

4шт.

16

2181-2294D10

ELBOW;S PFO3/4-UNF1 3/16

desc: COUDE

3шт.

17

S8000231

O-RING P23

desc: JOINT TORIQUE

1шт.

18

S8030121

O-RING UNF 1 3/16

desc: JOINT TORIQUE

4шт.

19

2181-1951D1

TEE PF1/4-PFO1/4-PF1/4

desc: TE

1шт.

20

S8000111

O-RING P11

desc: JOINT TORIQUE

2шт.

21

2181-1126D1

ADAPTER;S PFO3/4-PF3/4

desc: RACCORD

3шт.

22

2181-1951D34

TEE PFO3/4-PF3/4-PF3/4

desc: TE

1шт.

23

2181-1126D83

ADAPTER;S PF1/2-PFO1/2

desc: RACCORD ADAPTATEUR

1шт.

24

2181-1702D4

ELBOW;S PF1/4-PFO1/4

desc: COUDE

1шт.

25

4197-2472B

BRACKET

SERIAL: 1001-1010

1шт.

25

4197-2472C

BRACKET

SERIAL: 1011

1шт.

26

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

4шт.

27

4181-2789

ADAPTER PF3/4-PF3/4

SERIAL: 1001-1010

1шт.

27

181-00424

ELBOW

SERIAL: 1011

1шт.

28

2181-1702D11

ELBOW PF1-PFO1

desc: COUDE

2шт.

29

S8000291

O-RING P29

desc: JOINT TORIQUE

4шт.

30

2181-1702D66

ELBOW PF3/4-PFO3/4

desc: COUDE

1шт.

31

4182-1812

PIPE

SERIAL: 1001-1010

1шт.

31

4182-1812A

PIPE

SERIAL: 1011

1шт.

32

4423-1557A

BLOCK

desc: BLOC

1шт.

33

S0515053

BLOT M12X1.75X25

desc: BOULON A 6 PANS

2шт.

34

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

35

S5010713

WASHER;PLAIN M12

desc: RONDELLE

2шт.

36

4420-9607

STEER UNIT

desc: ORBITROL

1шт.

37

2184-1212D30

HOSE UNF1 3/16-950L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1026D431

HOSE PF1/2-1350L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1196D79

HOSE UNF1 3/16-800L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1036D59

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1036D383

HOSE PF3/4-820L

desc: TUYAU FLEXIBLE

1шт.

42

2184-1036D316

HOSE PF1/2-2050L

desc: TUYAU FLEXIBLE

1шт.

43

2184-1036D372

HOSE PF3/4-840L

SERIAL: 1001-1010

1шт.

43

2184-1026D440

HOSE PF3/4-810L

SERIAL: 1011

1шт.

44

2184-1061D287

HOSE PF1-780L

desc: TUYAU FLEXIBLE

1шт.

45

2181-1110D30

ADAPTER PT1/8-PF1/4

desc: RACCORD

1шт.

46

2184-1026D214

HOSE PF3/4-2400L

desc: TUYAU FLEXIBLE

1шт.

47

2184-1036D338

HOSE PF3/4-3500L

desc: TUYAU FLEXIBLE

1шт.

48

2184-1036D392

HOSE PF3/4-1030L

desc: TUYAU FLEXIBLE

1шт.

49

4423-1569

BLOCK

desc: BLOC

1шт.

50

S0556653

BOLT M8X1.25X65

desc: BOULON A 6 PANS

2шт.

52

2181-1702D1

ELBOW PF3/4-PFO3/4

desc: RACCORD

1шт.

53

2124-1353D15

CLIP D35

desc: CLIP

2шт.

55

S4012633

NUT M10X1.5

desc: ECROU

1шт.

56

2160-1004D54

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

2шт.

57

2161-2255

PLATE;RUBBER

desc: PROFILE CAOUTCHOUC

1шт.

58

2124-1084D1

CLIP;BAND

desc: CLIP

4шт.

59

S8000241

O-RING

desc: JOINT TORIQUE

8шт.
