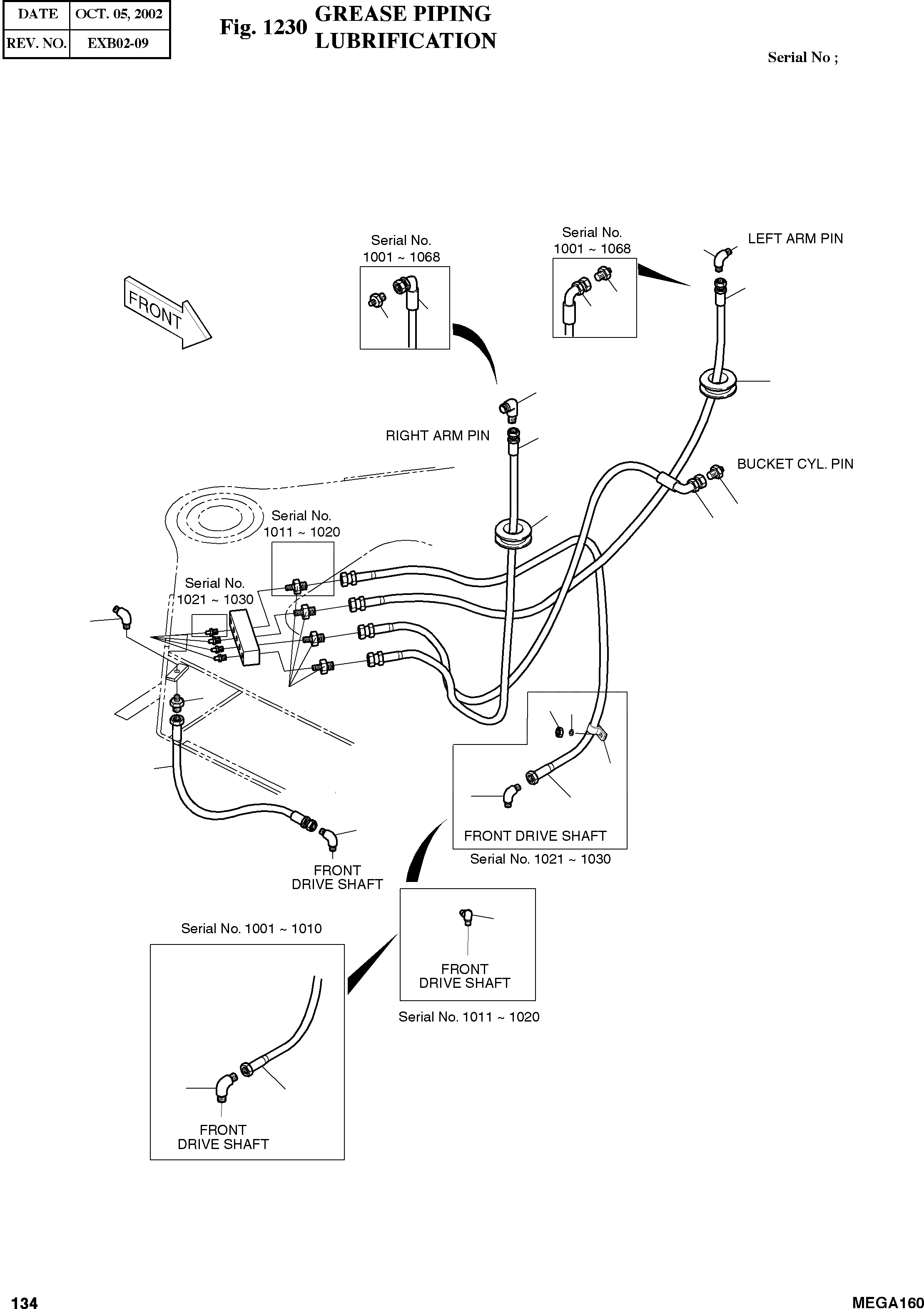

Запчасти Doosan Daewoo GREASE PIPING BODY PARTS

-

4400-2074

GREASE PIPING

SC: D

-2шт.

1

S6710041

NIPPLE PT1/8

SERIAL: 1001-1010

4шт.

1

S6710041

NIPPLE PT1/8

SERIAL: 1011-1020

3шт.

1

S6710041

NIPPLE PT1/8

SERIAL: 1021-1030

4шт.

1

S6710041

NIPPLE PT1/8

SERIAL: 1031

3шт.

2

2181-4112

ADAPTER PF1/4-PT1/8

SERIAL: 1001-1010

7шт.

2

2181-4112

ADAPTER PF1/4-PT1/8

SERIAL: 1011-1020

6шт.

2

2181-4112

ADAPTER PF1/4-PT1/8

SERIAL: 1021-1068

7шт.

2

2181-4112

ADAPTER PF1/4-PT1/8

SERIAL: 1069

5шт.

3

2184-1046D82

HOSE PF1/4-850L

SERIAL: 1001-1068

1шт.

3

2184-1045D55

HOSE PF1/4-990L

SERIAL: 1069

1шт.

4

2184-1046D49

HOSE PF1/4-1020L

desc: TUYAU FLEXIBLE

1шт.

5

2184-1046D107

HOSE PF1/4-1250L

SERIAL: 1001-1068

1шт.

5

2184-1045D115

HOSE PF1/4-1280L

SERIAL: 1069

1шт.

6

2184-1045D190

HOSE PF1/4-1200L

SERIAL: 1001-1010

1шт.

7

2181-1186D12

ELBOW PF1/4-PT1/8

SERIAL: 1001-1010

1шт.

7

S6710152

NIPPLE

SERIAL: 1011-1020

1шт.

8

2160-1004D44

BUSHING;RUBBER

desc: GARNISSAGE CAOUTCHOUC

2шт.

9

2181-1111D11

ELBOW

SERIAL: 1021-1068

1шт.

9

2181-1111D11

ELBOW

SERIAL: 1069

3шт.

10

S4012533

NUT M8X1.25

SERIAL: 1021-1030

1шт.

11

S5102503

WASHER;SPRING M8

SERIAL: 1021-1030

1шт.

12

2124-1353D3

CLIP

SERIAL: 1021-1030

1шт.

13

2184-1045D190

HOSE PF1/4-1200L

SERIAL: 1021-1030

1шт.

13

2184-1045D71

HOSE PF1/4-860L

SERIAL: 1031

1шт.
