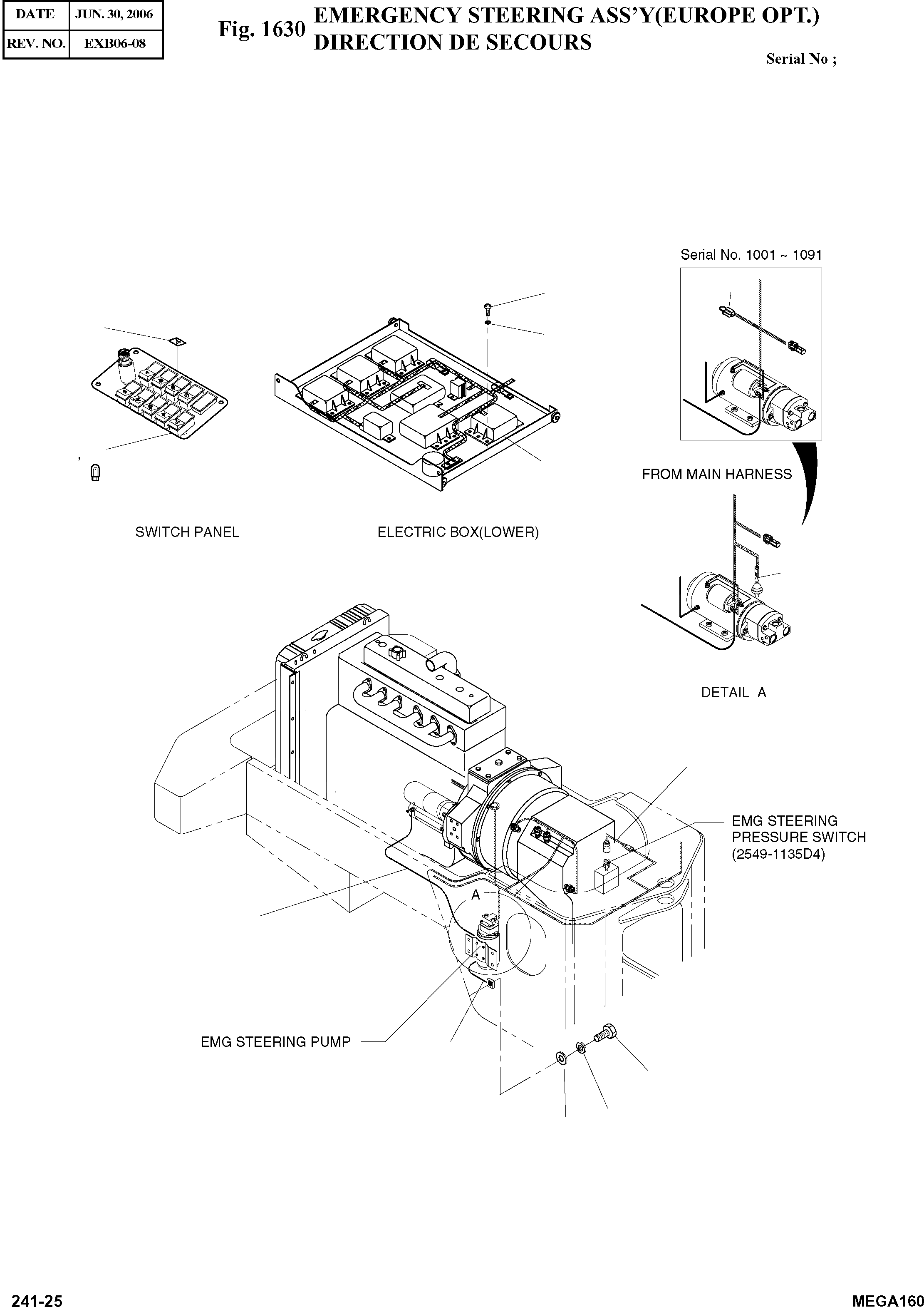

Запчасти Doosan Daewoo EMERGENCY STEERING ASSY(EUROPE OPT.) BODY PARTS

-

500-00110

EMERGENCY STEERING ASS'Y

SC: D

-2шт.

1

2549-9110

SWITCH;EMG STEERING

desc: COMMUTATEUR DE DIRECTION DE SECOURS

1шт.

1A

K9000353

LAMP;PILOT

desc: . LAMPE

1шт.

2

2190-2036D21

INSERT;EMG STEERING

desc: INSERTION DE DIRECTION DE SECOURS

1шт.

3

537-00039A

TIMER;EMG STEERING

SERIAL: 1001-1091

1шт.

3

537-00039B

TIMER;EMG STEERING

SERIAL: 1092

1шт.

4

S3450973

SCREW M6X1.0X16

desc: VIS

4шт.

5

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

6

2527-1027

FUSIBLE LINK 0.3SQ 19A

SERIAL: 1001-1091

1шт.

7

2553-1275D64

CABLE;WTARTER-PUMP

desc: CABLE

1шт.

8

2553-1275D22

CABLE;PUPMP-EARTH

desc: CABLE

1шт.

9

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

1шт.

10

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

1шт.

11

S5010613

WASHER;PLAIN M10

desc: RONDELLE

1шт.

12

2530-1400

HARNESS;PRESS SWITCH

desc: FAISCEAU

1шт.

13

530-00067

HARNESS;PRESS SWITCH

SERIAL: 1092

1шт.
