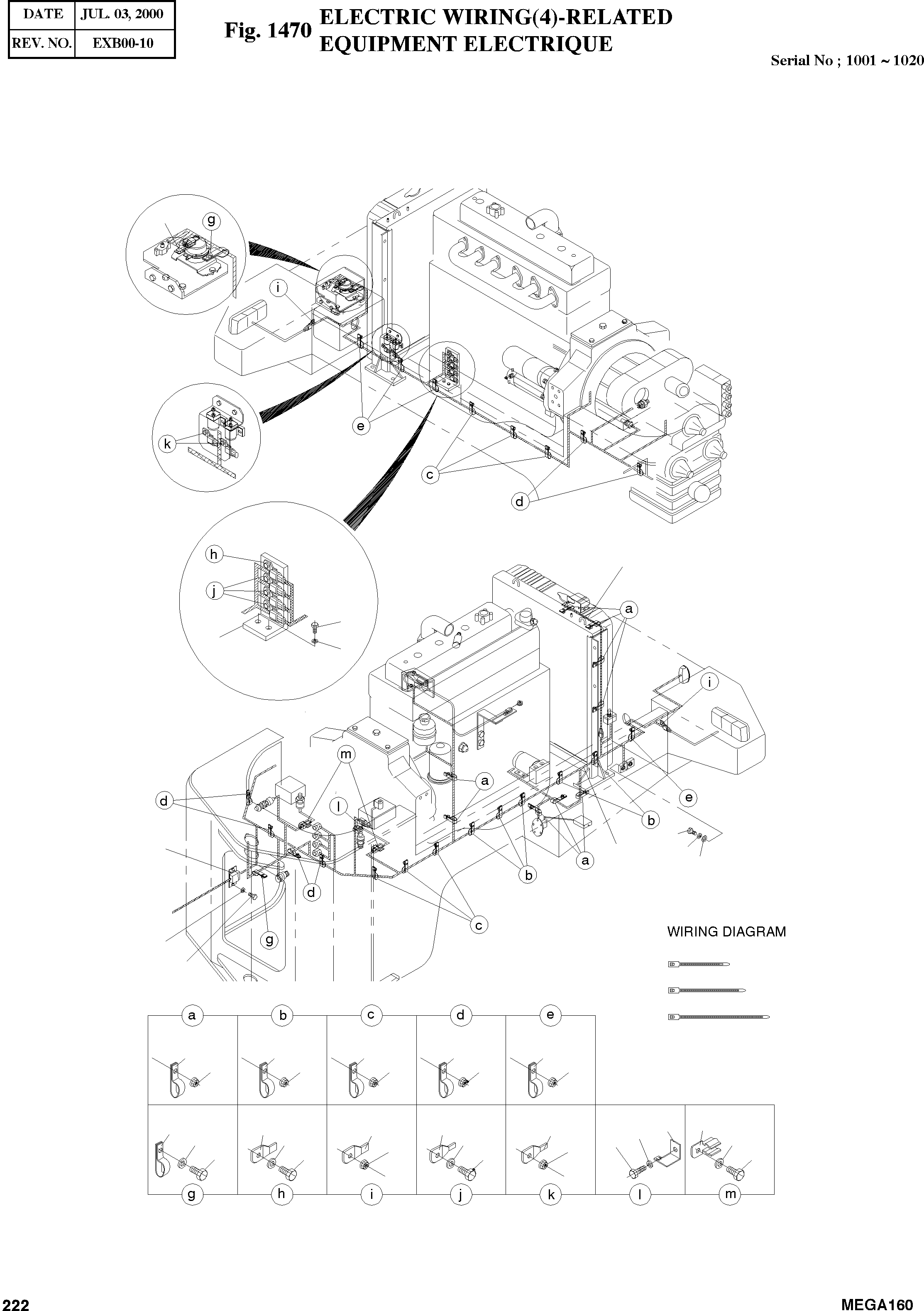

Запчасти Doosan Daewoo ELECTRIC WIRING(4)-RELATED BODY PARTS

-

4500-1241

ELECTRIC PARTS

SERIAL: 1001-1020

-2шт.

1

4599-1143

WIRING DIAGRAM

desc: POSE DE FILES

1шт.

2

4530-1754B

HARNESS;MAIN

desc: FAISCEAU

1шт.

7

4530-1758A

HARNESS;BACK BUZZER

desc: FAISCEAU

1шт.

17

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS M10X1.5X16

1шт.

18

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

1шт.

19

S5010613

WASHER;PL M10

desc: RONDELLE

1шт.

20

2195-3500

BRACKET;HOUSING

desc: SUPPORT

2шт.

21

2197-1198

BRACKET;HOUSING

desc: SUPPORT

1шт.

22

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

4шт.

23

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

4шт.

24

2197-1660

BRACKET;HOUSING W15

desc: SUPPORT

4шт.

25

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

3шт.

26

4124-1692

CLAMP;HOUSING

desc: CLIP DE FIXATION

2шт.

27

4197-2051

BRACKET;CONNECTOR

desc: SUPPORT

1шт.

28

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

10шт.

29

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

10шт.

32

2124-1509D1

CLIP D12/M8

desc: ATTACHE

19шт.

33

2124-1509D2

CLIP D18/M8

desc: ATTACHE

9шт.

34

2124-1509D3

CLIP D24/M8

desc: ATTACHE

7шт.

35

2124-1509D4

CLIP D30/M8

desc: ATTACHE

6шт.

36

2124-1509D5

CLIP D36/M8

desc: ATTACHE DE TUYAU

4шт.

38

2121-1305

NUT M8X1.25

desc: ECROU

48шт.

39

2124-1622D1

CLIP;BAND L150

desc: ATTACHE

10шт.

40

2124-1622D2

CLIP;BAND L200

desc: ATTACHE

30шт.

41

2124-1622D3

CLIP;BANK L280

desc: ATTACHE

10шт.
