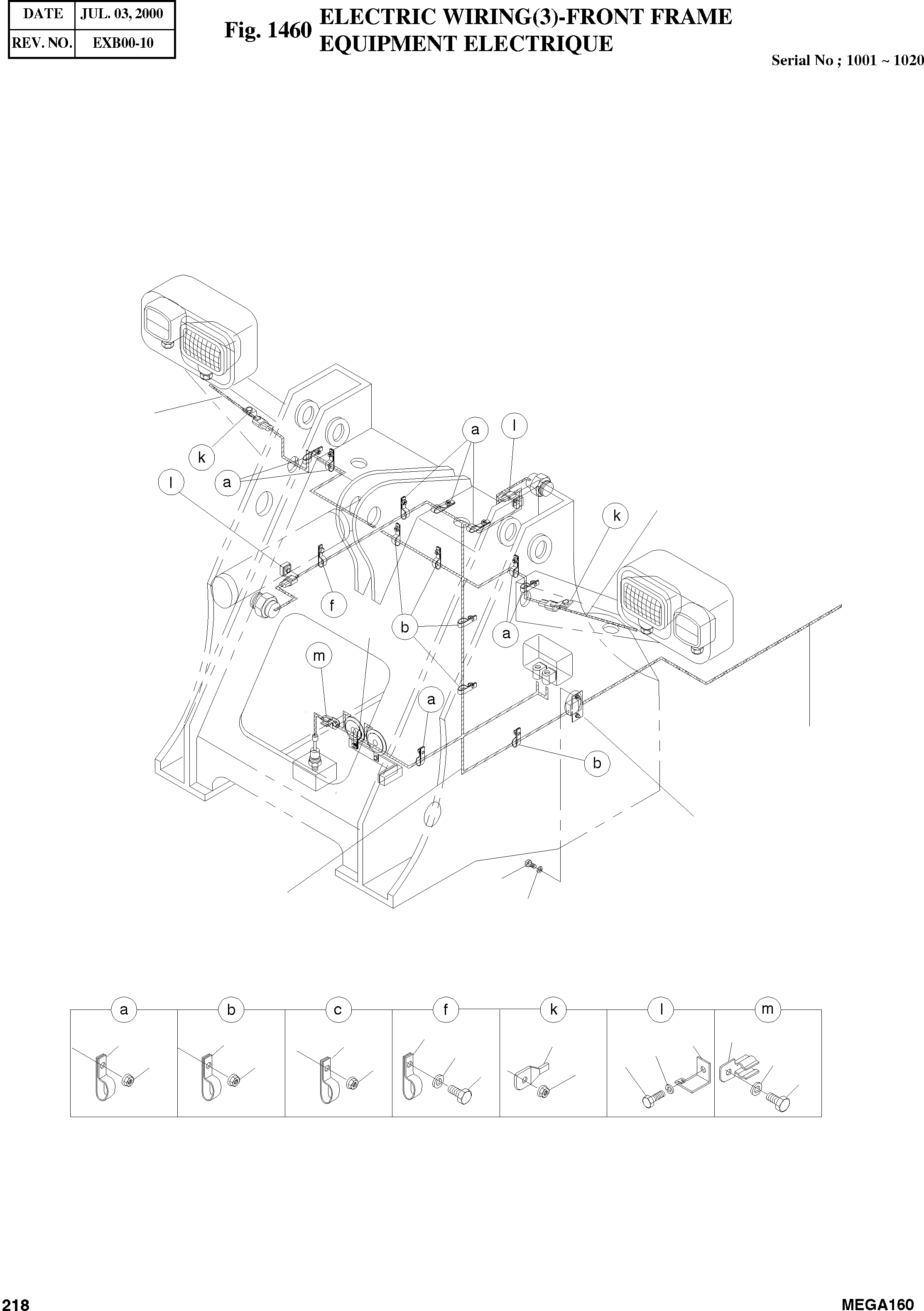

Запчасти Doosan Daewoo ELECTRIC WIRING(3)-FRONT FRAME BODY PARTS

-

4500-1241

ELECTRIC PARTS

SC: D

-2шт.

4

4530-1756A

HARNESS;FRONT FRAME

desc: FAISCEAU

1шт.

5

4530-1527

HARNESS;JOINT

desc: FAISCEAU

1шт.

6

4530-1757A

HARNESS;FRONT LAMP

desc: FAISCEAU

2шт.

20

2195-3500

BRACKET;HOUSING

desc: SUPPORT

2шт.

21

2197-1198

BRACKET;HOUSING

desc: SUPPORT

1шт.

22

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

4шт.

23

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

4шт.

25

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

4шт.

26

4124-1692

CLAMP;HOUSING

desc: CLIP DE FIXATION

1шт.

28

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

29

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

2шт.

32

2124-1509D1

CLIP D12/M8

desc: ATTACHE

10шт.

33

2124-1509D2

CLIP D18/M8

desc: ATTACHE

4шт.

34

2124-1509D3

CLIP D24/M8

desc: ATTACHE

2шт.

38

2121-1305

NUT M8X1.25

desc: ECROU

17шт.
