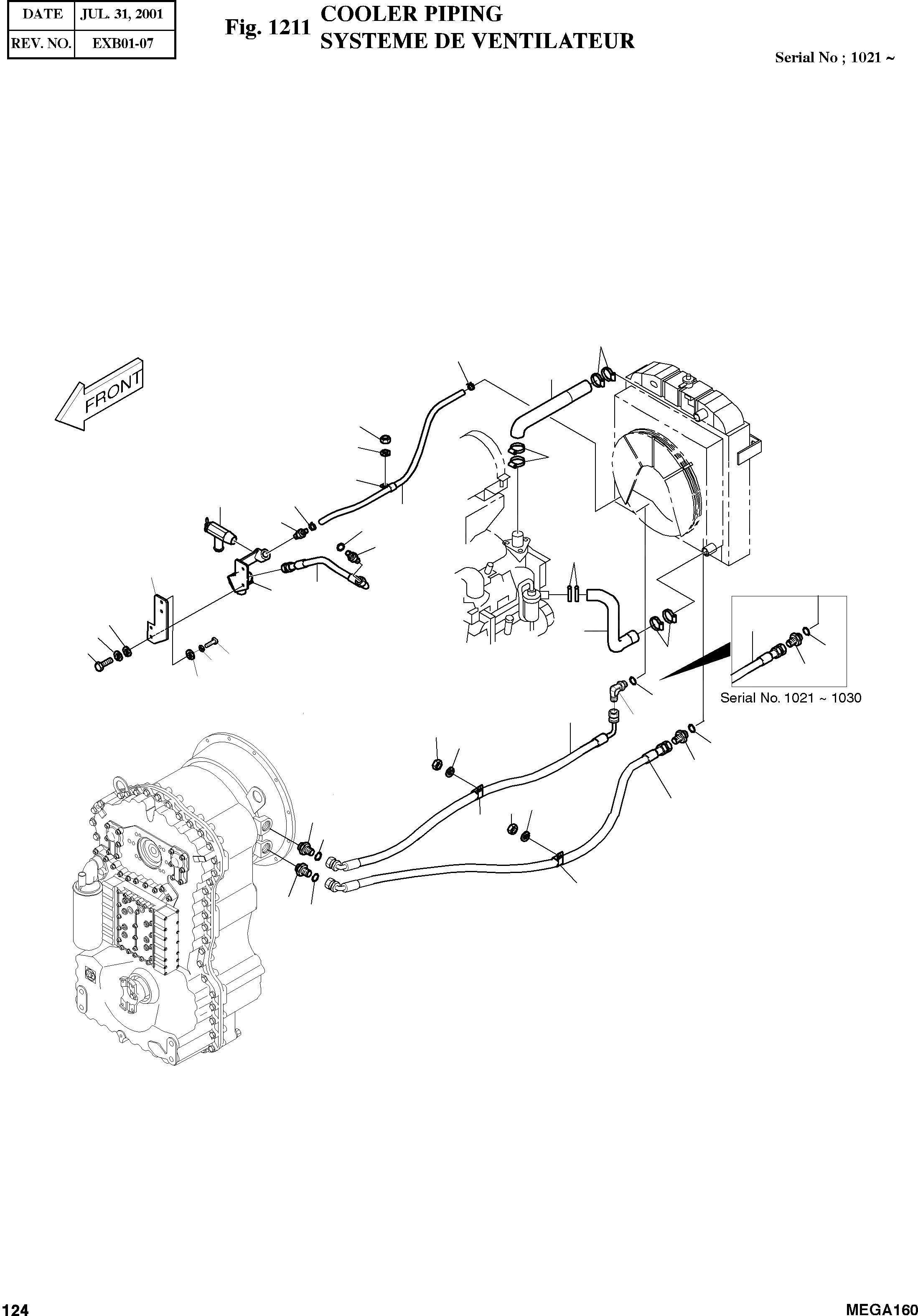

Запчасти Doosan Daewoo COOLER PIPING BODY PARTS

-

400-00399

COOLER PIPING

SERIAL: 1021

-2шт.

1

185-00071

HOSE

desc: TUYAU

1шт.

2

185-00070

HOSE

desc: TUYAU

1шт.

3

2181-1126D44

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

4

S8040161

O-RING

desc: JOINT TORIQUE

2шт.

5

195-00859A

BRACKET

desc: SUPPORT

1шт.

6

2184-1128D35

HOSE PF3/4-1850L

SERIAL: 1021-1030

1шт.

6

DS2058190

HOSE PF3/4-1800L

SERIAL: 1031

1шт.

7

2184-1060D228

HOSE PF3/4-1600L

desc: TUYAU FLEXIBLE

1шт.

8

2185-1308D29

HOSE 850L

desc: TUYAU FLEXIBLE

1шт.

9

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

4шт.

10

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

11

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

12

2186-9005

COCK;DRAIN

desc: ROBINET

1шт.

13

2181-2104D3

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

14

S8450044

CLAMP;HOSE

desc: COLLIER

4шт.

15

S8450053

CLAMP;HOSE

desc: COLLIER

4шт.

16

2124-1353D5

CLIP

desc: ATTACHE

1шт.

17

S4012633

NUT M10X1.5

desc: ECROU M10X1.5

2шт.

18

2124-1353D7

CLIP

desc: ATTACHE

2шт.

19

4197-2377A

BRACKET

desc: SUPPORT

1шт.

20

2184-1036D367

HOSE PF1-480L

desc: TUYAU FLEXIBLE

1шт.

21

2181-1917D51

ADAPTER M20X1.5-PF1

desc: RACCORD ADAPTATEUR

1шт.

22

S8180311

RING;SEAL

desc: BAGUE

1шт.

23

S8450016

CLAMP;HOSE

desc: COLLIER

2шт.

24

2181-1126D105

ADAPTER POF3/4-PF3/4

SERIAL: 1021-1030

2шт.

24

2181-1126D105

ADAPTER POF3/4-PF3/4

SERIAL: 1031

1шт.

25

S8000241

O-RING

desc: JOINT TORIQUE

2шт.

26

2181-1702D71

ELBOW PFO3/4-PF3/4

SERIAL: 1031

1шт.
