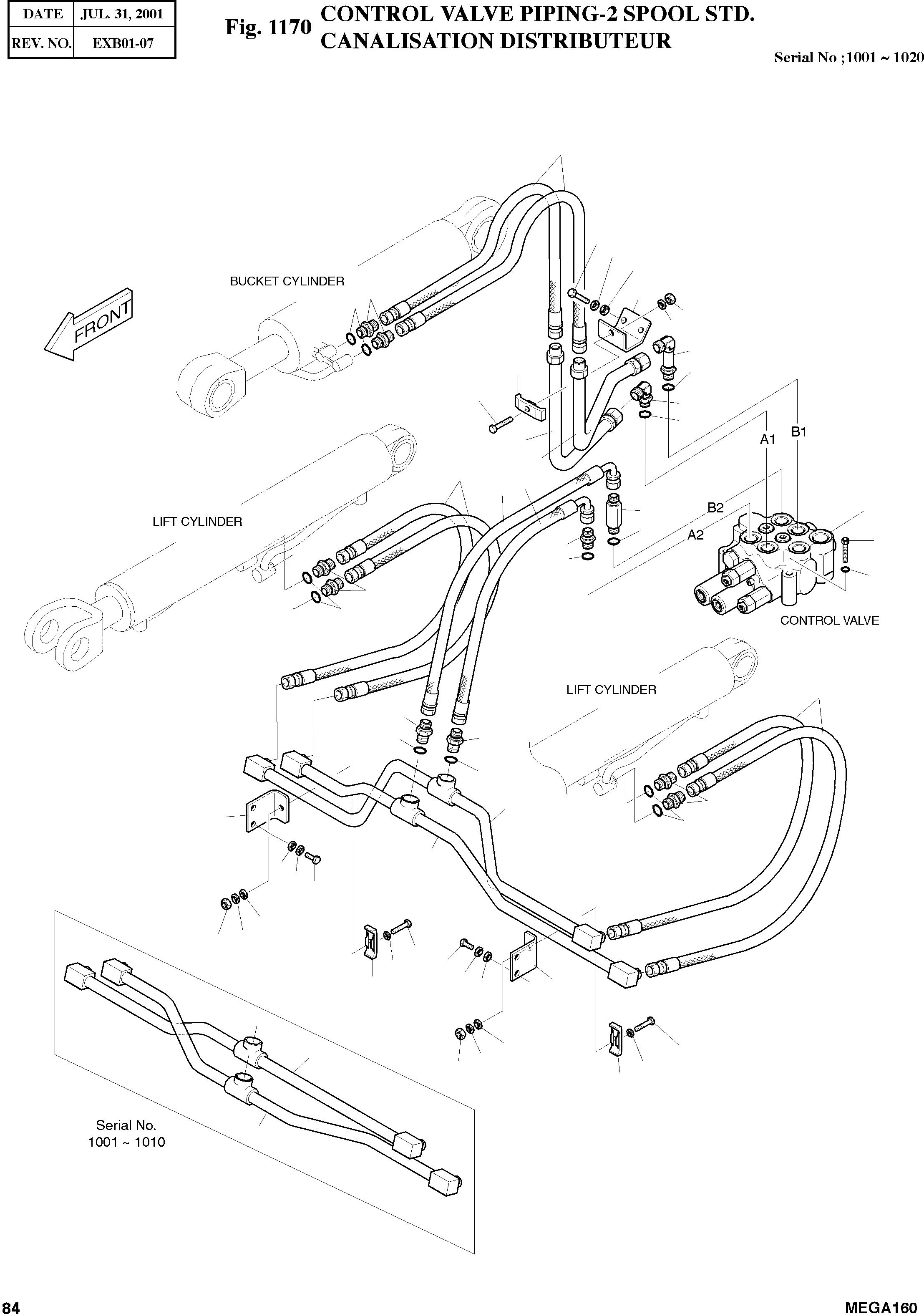

Запчасти Doosan Daewoo CONTROL VALVE PIPING-2 SPOOL STD BODY PARTS

-

4400-2054

CONTROL VALVE PIPING

SERIAL: 1001-1020

-2шт.

1

4197-2419A

BRACKET

desc: SUPPORT

2шт.

2

2124-1025D2

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

3

4182-1790A

PIPE

SERIAL: 1001-1010

1шт.

3

4182-1790B

PIPE

SERIAL: 1011

1шт.

4

4182-1789A

PIPE

SERIAL: 1001-1010

1шт.

4

4182-1789B

PIPE

SERIAL: 1011

1шт.

5

2184-1036D372

HOSE PF3/4-840L

SERIAL: 1001-1010

1шт.

5

2184-1036D398

HOSE PF3/4-720L

SERIAL: 1011

1шт.

6

2184-1036D373

HOSE PF3/4-670L

SERIAL: 1001-1010

1шт.

6

2184-1036D109

HOSE PF3/4-565L

SERIAL: 1011

1шт.

7

2184-1054D57

HOSE PF1/2-1050L

desc: TUYAU FLEXIBLE

4шт.

9

2181-1702D1

ELBOW;S PFO3/4-PF3/4

desc: RACCORD

1шт.

10

2181-1702D71

ELBOW PFO3/4-PF3/4

desc: COUDE

1шт.

11

2181-1126D6

ADAPTER;S PFO1/2-PF1/2

desc: RACCORD ADAPTATEUR

4шт.

12

2181-1126D88

ADAPTER;S PFO1/2-PF3/4

desc: RACCORD ADAPTATEUR

4шт.

13

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

3шт.

14

S4012633

NUT M10X1.5

desc: ECROU

3шт.

15

S5010613

WASHER;PLAIN M10

desc: RONDELLE

10шт.

16

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

9шт.

17

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

4шт.

18

S8000181

O-RING P18

desc: JOINT TORIQUE

8шт.

19

S8000231

O-RING P23

desc: JOINT TORIQUE

4шт.

20

4197-2418A

BRACKET

desc: SUPPORT

1шт.

21

2124-1025D1

CLAMP

desc: ATTACHE DE TUYAU

1шт.

22

4182-1792A

PIPE

desc: CONDUITE

1шт.

23

4182-1791A

PIPE

desc: CONDUITE

1шт.

24

2184-1026D382

HOSE PF3/4-870L

desc: TUYAU FLEXIBLE

2шт.

25

2181-1126D1

ADAPTER;S PF3/4-PF3/4

desc: RACCORD

1шт.

26

2181-1126D62

ADAPTER;S PF3/4-PF3/4

desc: RACCORD ADAPTATEUR

1шт.

27

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.

28

4420-9602

VALVE;CONTROL 2-SPOOL

desc: TIROIRS DE COMMANDE

1шт.

33

S2216561

BOLT;SOCKET M12X1.75X95

desc: BOULON A 6 PANS CREUX

3шт.

34

S5110701

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

3шт.
