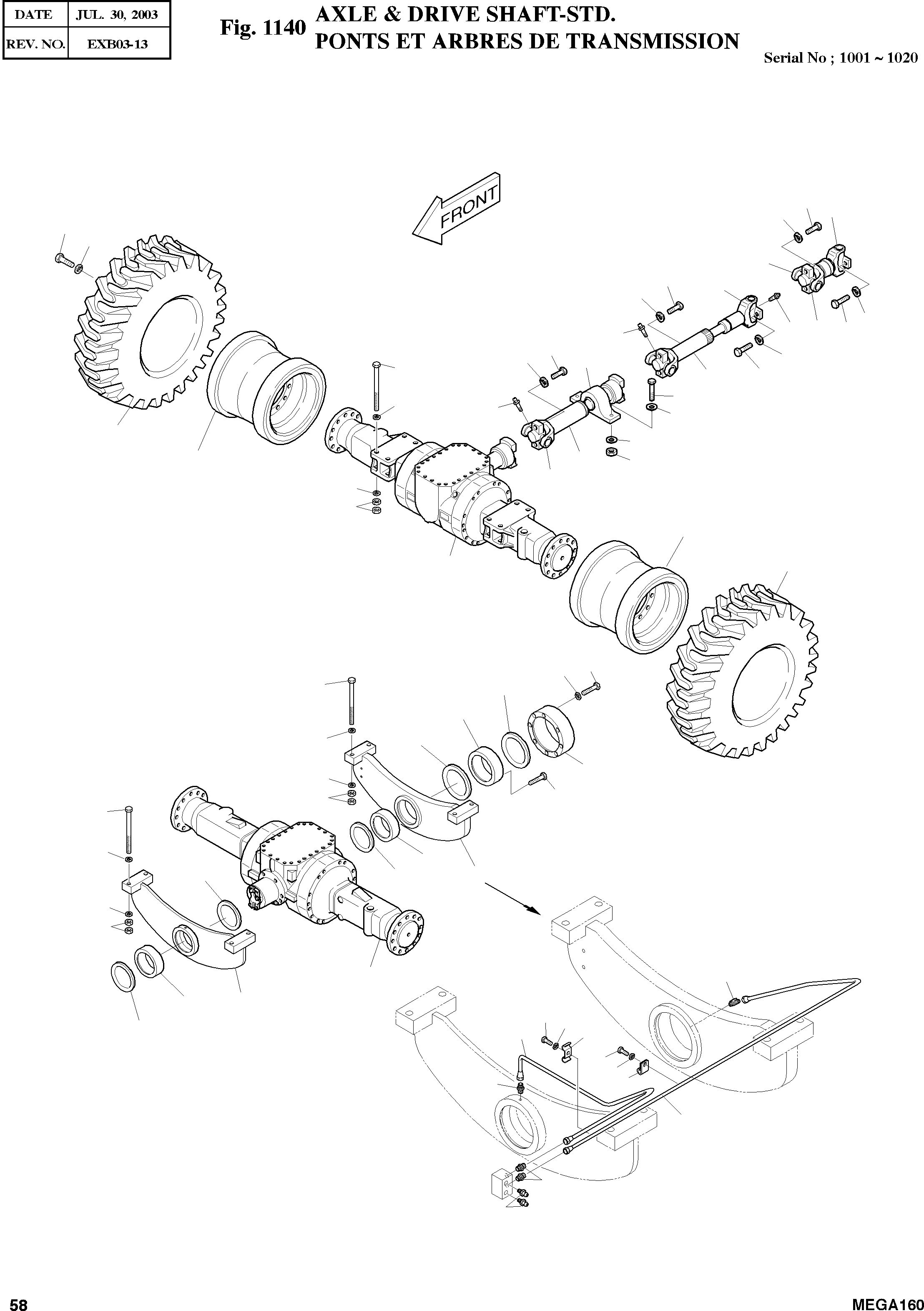

Запчасти Doosan Daewoo AXLE & DRIVE SHAFT-STD BODY PARTS

-

4211-1019

AXLE & DRIVE SHAFT ASS'Y

SERIAL: 1001-1020

-2шт.

1

4211-9059A

AXLE;FRONT

desc: PONT AVANT

1шт.

2

4211-9060A

AXLE;REAR

desc: PONT ARRIERE

1шт.

3

4260-9042B

DRIVE SHAFT;FRONT

desc: ENTRAINEMENT

1шт.

3A

100-5C

JOUNAL BEARING

desc: . PALIER

1шт.

3B

700-UCP211

CENTER BEARING

desc: . PALIER

1шт.

3C

4260-9012A-01

NIPPLE;GREASE

desc: . GRAISSEUR

1шт.

4

4260-9043B

DRIVE SHAFT;CENTER

desc: ENTRAINEMENT

1шт.

4A

100-5C

JOUNAL BEARING

desc: . PALIER

1шт.

4B

4260-9012A-01

NIPPLE;GREASE

desc: . GRAISSEUR

1шт.

5

4260-9044

DRIVE SHAFT;REAR

desc: ENTRAINEMENT

1шт.

5A

100-5C

JOUNAL BEARING

desc: . PALIER

2шт.

6

4197-2403A

SUPPORT;AXLE FRONT

desc: SUPPORT

1шт.

7

4197-2404

SUPPORT;AXLE REAR

desc: SUPPORT

1шт.

8

4110-1414

BUSHING

desc: MANCHON

1шт.

9

4180-1297

PACKING

desc: JOINT TORIQUE

2шт.

10

4412-1101

PLATE;THRUST

desc: PLAQUE

1шт.

11

4111-1014

CAP;THRUST

desc: CHAPEAU

1шт.

12

4110-1415

BUSHING

desc: MANCHON

1шт.

13

4114-1960

WASHER;THRUST

desc: RONDELLE

2шт.

14

4180-1298

PACKING

desc: JOINT TORIQUE

1шт.

15

S0572161

BOLT M20X2.5X200

desc: BOULON A 6 PANS

8шт.

16

4120-2232

BOLT M20X2.5X120

desc: BOULON A 6 PANS

8шт.

17

S4013133

NUT M20X2.5

desc: ECROU

32шт.

18

4114-4116

WASHER;HARD M20

desc: RONDELLE

32шт.

19

S0565561

BOLT M16X2.0X65

desc: BOULON A 6 PANS

2шт.

20

S4012933

NUT M16X2.0

desc: ECROU

2шт.

21

S5010913

WASHER;PLAIN M16

desc: RONDELLE

4шт.

22

S0760553

BOLT M12X1.25X40

desc: BOULON A 6 PANS

8шт.

23

S0561053

BOLT M12X1.75X65

desc: BOULON A 6 PANS

8шт.

24

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

25

S1158463

BOLT M10X1.25X45

desc: BOULON A 6 PANS

16шт.

26

4120-4016

BOLT 3/8-24UNFX45

desc: BOULON A 6 PANS

4шт.

27

4276-9017

TIRE 17.5X25(L2) STD

desc: PNEU INTERIEUR

4шт.

28

4278-9052

RIM 14.0X25 STD

desc: JANTE

4шт.

30

4193-1473A

PIPE

desc: CONDUITE

1шт.

31

4193-1474

PIPE

desc: CONDUITE

1шт.

32

4124-4047

CLIP;PIPE

desc: CLIP DE FIXATION

1шт.

33

2124-1248

CLIP;PIPE

desc: CLIP DE FIXATION

1шт.

34

S0508453

BOLT M8X1.25X12

desc: BOULON A 6 PANS

2шт.

35

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

36

2181-1919D9

ADAPTER PT1/8-M14X1.5

desc: RACCORD

3шт.

37

2181-1918D7

ELBOW PT1/8-M14X1.5

desc: COUDE

1шт.

38

S6710041

NIPPLE;GREASE PT1/8

desc: GRAISSEUR

2шт.

39

S0733661

BOLT M24X2.0X50

desc: BOULON A 6 PANS

48шт.

40

2114-1831

WASHER;HARD D26X48-4.5T

desc: RONDELLE

48шт.

41

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

16шт.

42

4114-1701

WASHER;SPRING 3/8 UNF

desc: RONDELLE ELASTIQUE

4шт.
