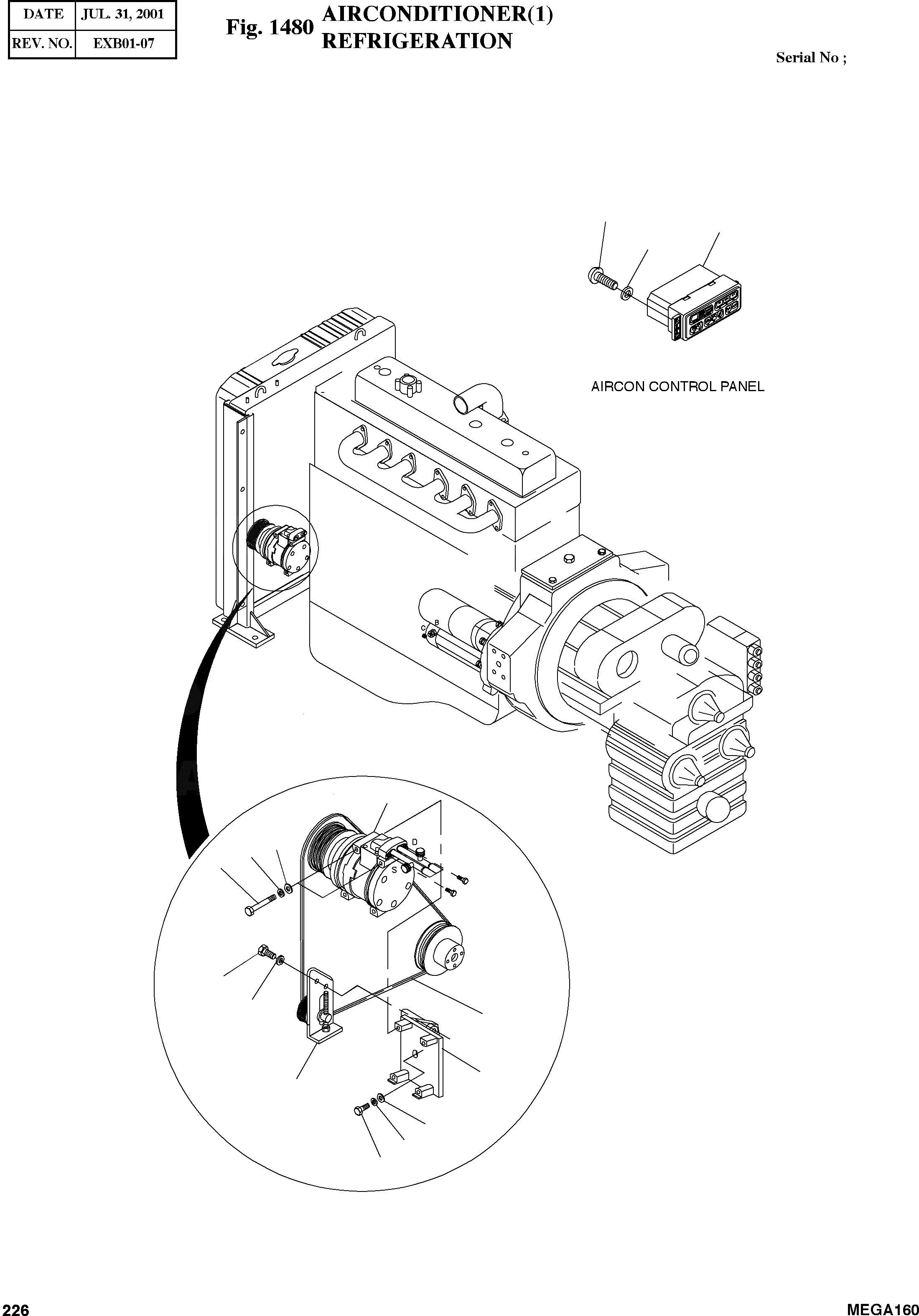

Запчасти Doosan Daewoo AIRCONDITIONER(1) BODY PARTS

-

4920-1095

COOLER & HEATER ASS'Y

SC: D

-2шт.

1

2543-9031A

PANEL;AIRCON CONTROL

desc: PANEL

1шт.

2

S3450583

SCREW M4X0.7X12

desc: VIS

4шт.

3

S5000113

WASHER;PLAIN M4

desc: RONDELLE PLATE

4шт.

4

2208-6013B

COMPRESSOR 10PA 15C(4PK)

desc: COMPRESSEUR

1шт.

5

S0557553

BOLT M8X1.25X110

SERIAL: 1001-1055

4шт.

5

S0557153

BOLT M8X1.25X90

SERIAL: 1056

4шт.

6

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

4шт.

7

S5010513

WASHER;PLAIN M8

desc: RONDELLE M8

4шт.

8

2197-1798B

BRACKET;COMPRESSOR

desc: SUPPORT

1шт.

9

S0712153

BOLT M10X1.25X28

desc: BOULON A 6 PANS

1шт.

10

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

1шт.

11

S5010613

WASHER;PLAIN M10

desc: RONDELLE

1шт.

12

2107-6006

IDLE PULLEY ASS'Y 4PK

desc: ENSEMBLE POULIE FOU

1шт.

13

S0759853

BOLT M10X1.25X115

desc: VIS

2шт.

14

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

2шт.

15

2106-1019D10

V-BELT 4PK L990

desc: COURROIE-V

1шт.
