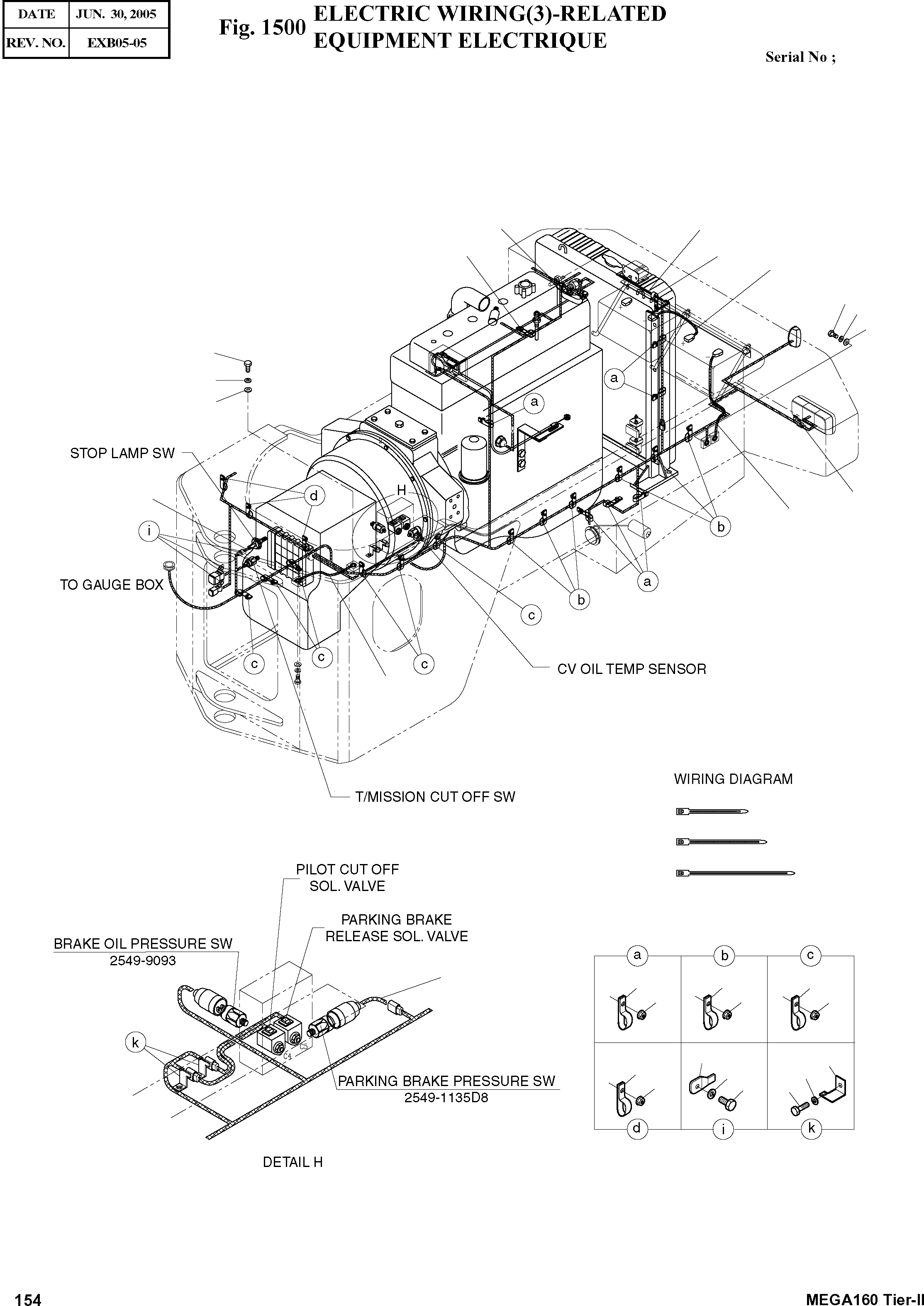

Запчасти Doosan Daewoo ELECTRIC WIRING(3)-RELATED BODY PARTS

-

500-00158

ELECTRIC PARTS

SERIAL: 2001-2032

-2шт.

-

500-00158A

ELECTRIC PARTS

SERIAL: 2033

-2шт.

1

599-00022A

WIRING DIAGRAM

SC: D

1шт.

6

4530-1758A

HARNESS;BACK BUZZER

desc: HARNAIS

1шт.

7

530-00067

HARNESS;JOINT

desc: HARNAIS

1шт.

12

2553-1275D22

CABLE;BATT-EARTH 400L

desc: CABLE

1шт.

13

2553-1275D6

CABLE;BATT-BATT 250L

desc: CABLE

1шт.

16

2553-1275D22

CABLE;FL PLATE-EARTH 400L

desc: CABLE

1шт.

17

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

4шт.

18

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

19

S5010613

WASHER;PLAIN

desc: RONDELLE

4шт.

20

2195-3500

BRACKET;HOUSING

desc: SUPPORT

2шт.

21

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

22

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

23

2197-1660

BRACKET;HOUSING

desc: SUPPORT

1шт.

24

2197-1661

BRACKET;HOUSING

desc: SUPPORT

3шт.

26

S0508453

BOLT M8X1.25X12

desc: BOULON A 6 PANS

3шт.

27

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

30

2124-1509D1

CLIP D12/M8

desc: ATTACHE

7шт.

31

2124-1509D2

CLIP D18/M8

desc: ATTACHE

7шт.

32

2124-1509D3

CLIP D24/M8

desc: ATTACHE

6шт.

33

2124-1509D4

CLIP D30/M8

desc: ATTACHE

3шт.

37

2121-1305

NUT M8X1.25

desc: ECROU

21шт.

38

2124-1622D1

CLIP;BAND 150L

desc: ATTACHE

10шт.

39

2124-1622D2

CLIP;BAND 200L

desc: ATTACHE

30шт.

40

2124-1622D3

CLIP;BAND 280L

desc: ATTACHE

10шт.

41

2530-1400

HARNESS;JOINT

desc: HARNAIS

1шт.

42

2124-1353D2

CLIP D12.7/M10

desc: ATTACHE

1шт.
