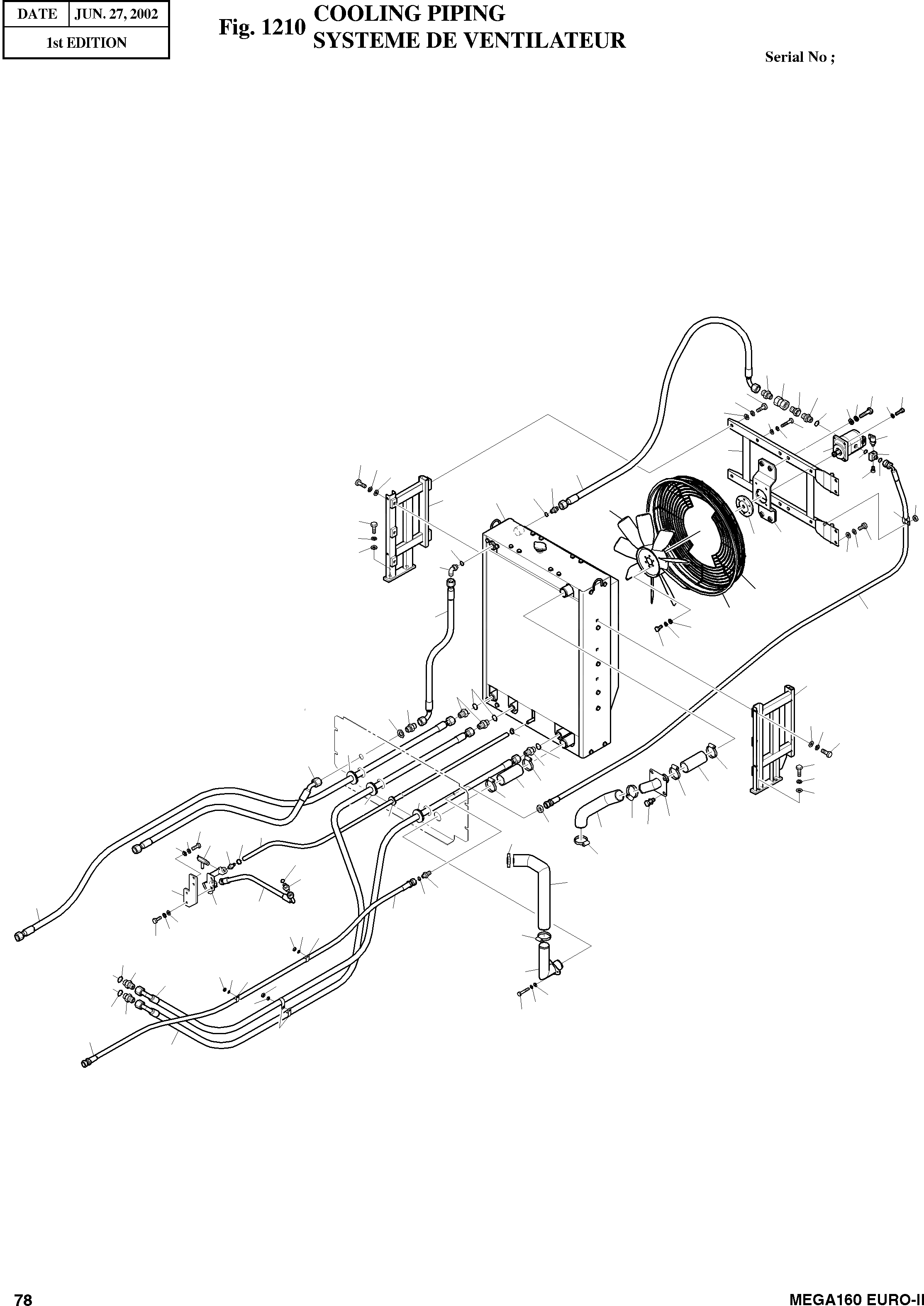

Запчасти Doosan Daewoo COOLER PIPING BODY PARTS

-

400-00880

COOLER PIPING

SC: D

-2шт.

1

202-00087B

RADIATOR ASS'Y

desc: RADIATEUR

1шт.

1A

20600821

RADIATOR

desc: . RADIATEUR

1шт.

1B

21801190

OIL COOLER;HYD

desc: . REFRIGERATION DE HUILE

1шт.

1C

12203231

SHOROUD

desc: . GARDE

1шт.

1D

12101640

CAP

desc: . CAP

1шт.

2

142-00014B

FAN GUARD ASS'Y

desc: GARDE

1шт.

3

2160-1023

TRIM;RUBBER

SERIAL: 2001-2011

1шт.

3

160-00065

TRIM;RUBBER

SERIAL: 2012

1шт.

4

195-01873B

BRACKET;L.H

desc: SUPPORT

1шт.

5

195-01874B

BRACKET;R.H

desc: SUPPORT

1шт.

6

195-01875B

BRACKET

desc: SUPPORT

1шт.

7

S0560453

BOLT M12X1.75X35

desc: BOULON A 6 PANS

12шт.

8

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

20шт.

9

2114-1058D46

WASHER;PLAIN

desc: RONDELLE

16шт.

10

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

4шт.

11

153-00003

COUPLER;QUICK

desc: COUPLEUR

1шт.

12

2181-1110D4

ADAPTER PT3/4-PF3/4

desc: RACCORD ADAPTATEUR

1шт.

13

181-00623

ADAPTER PF3/4-PFS3/4

desc: RACCORD ADAPTATEUR

1шт.

14

S8180451

SEAL;RING

desc: RONDELLE

1шт.

15

181-00606

NIPPLE;QUICK

desc: GRAISSEUR

1шт.

16

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

9шт.

17

2114-1058D45

WASHER;PLAIN

desc: RONDELLE

4шт.

18

S0558553

BOLT M10X1.5X50

desc: BOULON A 6 PANS

4шт.

19

181-00620A

ADAPTER PFS1/2-UNF13/16

desc: RACCORD ADAPTATEUR

1шт.

20

S8180321

SEAL;RING

desc: RONDELLE

1шт.

21

S8030081

O-RING

desc: JOINT TORIQUE

2шт.

22

120-00002

SCREW COUPLING

desc: VIS

1шт.

23

185-00299

HOSE;ENGINE

desc: TUYAU FLEXIBLE

1шт.

24

185-00300A

HOSE;ENGINE

desc: TUYAU FLEXIBLE

1шт.

25

S8450044

CLAMP;HOSE

desc: COLLIER

7шт.

26

2181-1126D150

ADAPTER PF3/4-PFO3/4

desc: RACCORD ADAPTATEUR

1шт.

27

S8000241

O-RING

desc: JOINT TORIQUE

5шт.

28

2181-1702D1

ELBOW PFO3/4-PF3/4

desc: COUDE

1шт.

29

920-00079

FAN

desc: VENTILATEUR

1шт.

30

219-00009A

HUB

desc: MOYEU DE ROUE

1шт.

31

195-02223

BRACKET

desc: SUPPORT

1шт.

32

S2209066

BOLT;SOCKET M8X1.25X25

desc: BOULON A 6 PANS CREUX

4шт.

33

S5110501

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

34

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

8шт.

35

S0560753

BOLT M12X1.75X50

desc: BOULON A 6 PANS

4шт.

36

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

8шт.

37

401-00343

MOTOR

desc: MOTEUR

1шт.

38

182-00113

PIPE

desc: CONDUITE

1шт.

39

S5010513

WASHER;PLAIN

desc: RONDELLE

8шт.

40

2120-2196D1

BOLT;SET M10X1.5X20

desc: BOULON A 6 PANS

4шт.

41

S4012633

NUT

desc: ECROU

1шт.

42

2185-1776D30

HOSE;ENGINE

desc: TUYAU FLEXIBLE

2шт.

43

182-00115B

PIPE;ENGINE

desc: CONDUITE

1шт.

44

4181-2789

ADAPTER PF3/4-PF3/4

desc: RACCORD ADAPTATEUR

1шт.

45

S5011313

WASHER

desc: RONDELLE

1шт.

46

S8040161

O-RING

desc: JOINT TORIQUE

2шт.

47

2181-1126D44

ADAPTER UNF1 5/16-PF3/4

desc: RACCORD ADAPTATEUR

2шт.

48

124-00208D3

CLIP

desc: ATTACHE

1шт.

49

195-00859A

BRACKET

desc: SUPPORT

1шт.

50

DS2055576

HOSE(ST-ST)-850L

desc: TUYAU FLEXIBLE

1шт.

51

DS2011083

HOSE(ST-ST)-1550L

desc: TUYAU FLEXIBLE

1шт.

52

DS2055746

HOSE(ST-90)-530L

desc: TUYAU FLEXIBLE

1шт.

53

2184-1212D73

HOSE(ST-45)-1000L

desc: TUYAU FLEXIBLE

1шт.

54

2124-1353D6

CLIP;HOSE

desc: ATTACHE

2шт.

55

S4012533

NUT

desc: ECROU

3шт.

56

S5010713

WASHER;PLAIN

desc: RONDELLE

4шт.

57

181-00128D3

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

58

121-00010D5

NUT

desc: ECROU

1шт.

59

160-00049

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

3шт.

60

2160-1004D18

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

1шт.

61

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

4шт.

62

DS2053745

HOSE(ST-ST)-1950L

desc: TUYAU FLEXIBLE

1шт.

63

DS2054246

HOSE(ST-45)-670L

desc: TUYAU FLEXIBLE

1шт.

64

2184-1070D30

HOSE(ST-45)-1900L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1060D228

HOSE(ST-45)-1600L

desc: TUYAU FLEXIBLE

1шт.

66

2124-1353D7

CLIP

desc: ATTACHE

2шт.

67

S5010613

WASHER;PLAIN

desc: RONDELLE

4шт.

68

2186-9005

DRAIN;COCK

desc: DRAIN

1шт.

69

2181-2104D3

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

70

S8450016

CLAMP;HOSE

desc: COLLIER

2шт.

71

2185-1308D29

HOSE-850L

desc: TUYAU FLEXIBLE

1шт.

72

2181-1126D105

ADAPTER PFO3/4-PF3/4

desc: RACCORD ADAPTATEUR

3шт.

73

S8450053

CLAMP;HOSE

desc: COLLIER

1шт.

74

4197-2377A

BRACKET

desc: SUPPORT

1шт.

75

2184-1036D367

HOSE-840L

desc: TUYAU FLEXIBLE

1шт.

76

2181-1917D51

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

77

S8180311

RING;SEAL

desc: ANNEAU DU JOINT

1шт.

78

2181-2047

PLUG

desc: BOUCHON

1шт.
