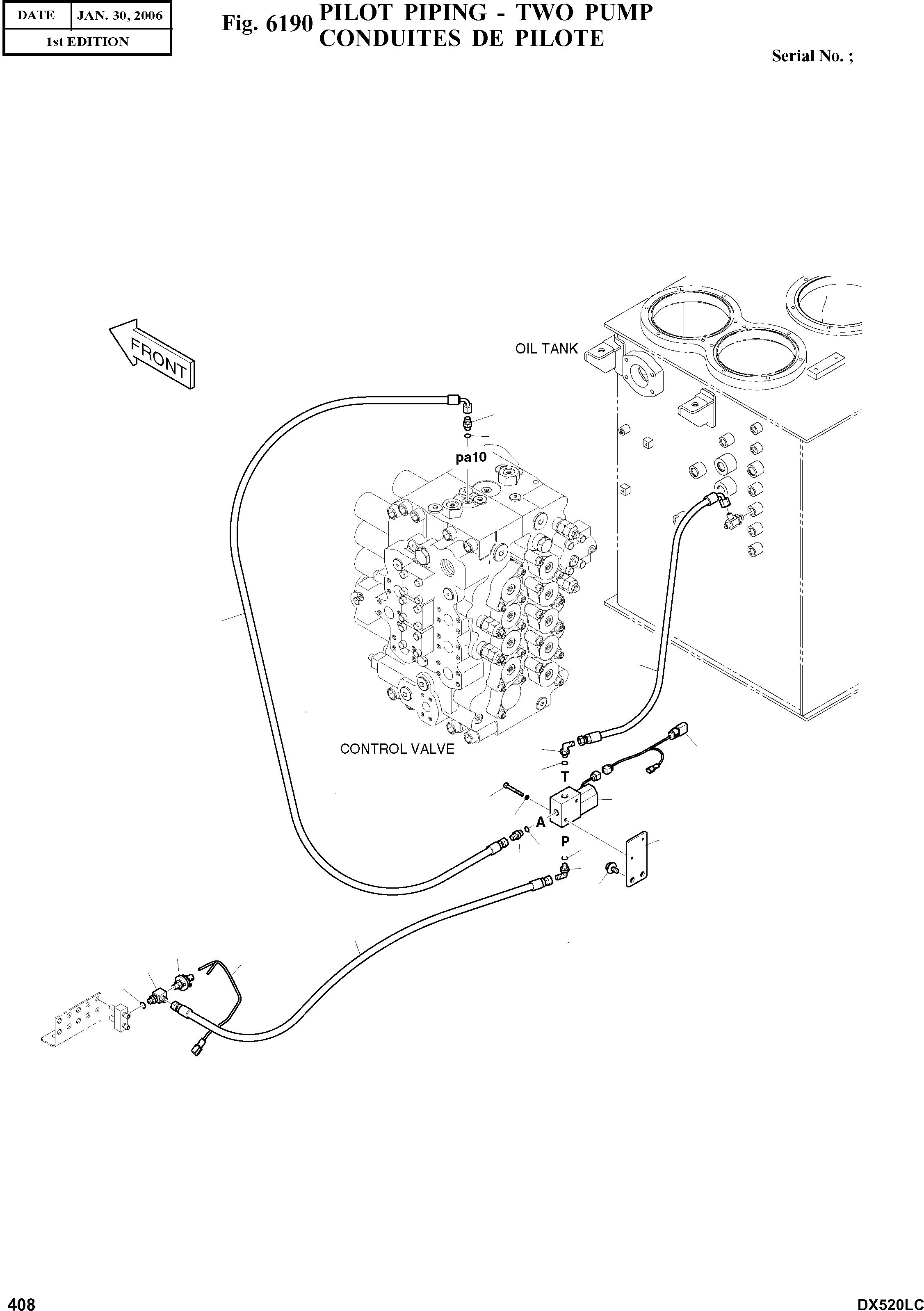

Запчасти Doosan Daewoo PILOT PIPING - TWO PUMP OPTION PARTS

-

K1002606C

PILOT PIPING-TWO PUMP

SC: D

-2шт.

1

K1002516

VALVE;SOLENOID

desc: SOUPAPE A SOLENOIDE

1шт.

2

K1002600A

BRACKET

desc: SUPPORT

1шт.

3

549-00010

SWITCH;PRESSURE

desc: INTERRUPTEUR

1шт.

4

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

5

2181-1702D4

ELBOW

desc: COUDE

2шт.

6

K1002158

TEE

desc: TE

1шт.

8

DS2094076

HOSE

desc: TUYAU FLEXIBLE

1шт.

9

DS2093234

HOSE

desc: TUYAU FLEXIBLE

1шт.

11

DS2093249

HOSE

desc: TUYAU FLEXIBLE

1шт.

12

S8000111

O-RING

desc: JOINT TORIQUE

5шт.

13

DS0025017

BOLT;SET

desc: BOULON A 6 PANS

2шт.

14

S0553666

BOLT

desc: BOULON A 6 PANS

2шт.

15

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE M6

2шт.

17

530-00067

HARNESS;PRESSURE SWITCH

desc: FAISCEAU

1шт.

18

K1000818A

HARNESS

desc: FAISCEAU

1шт.
