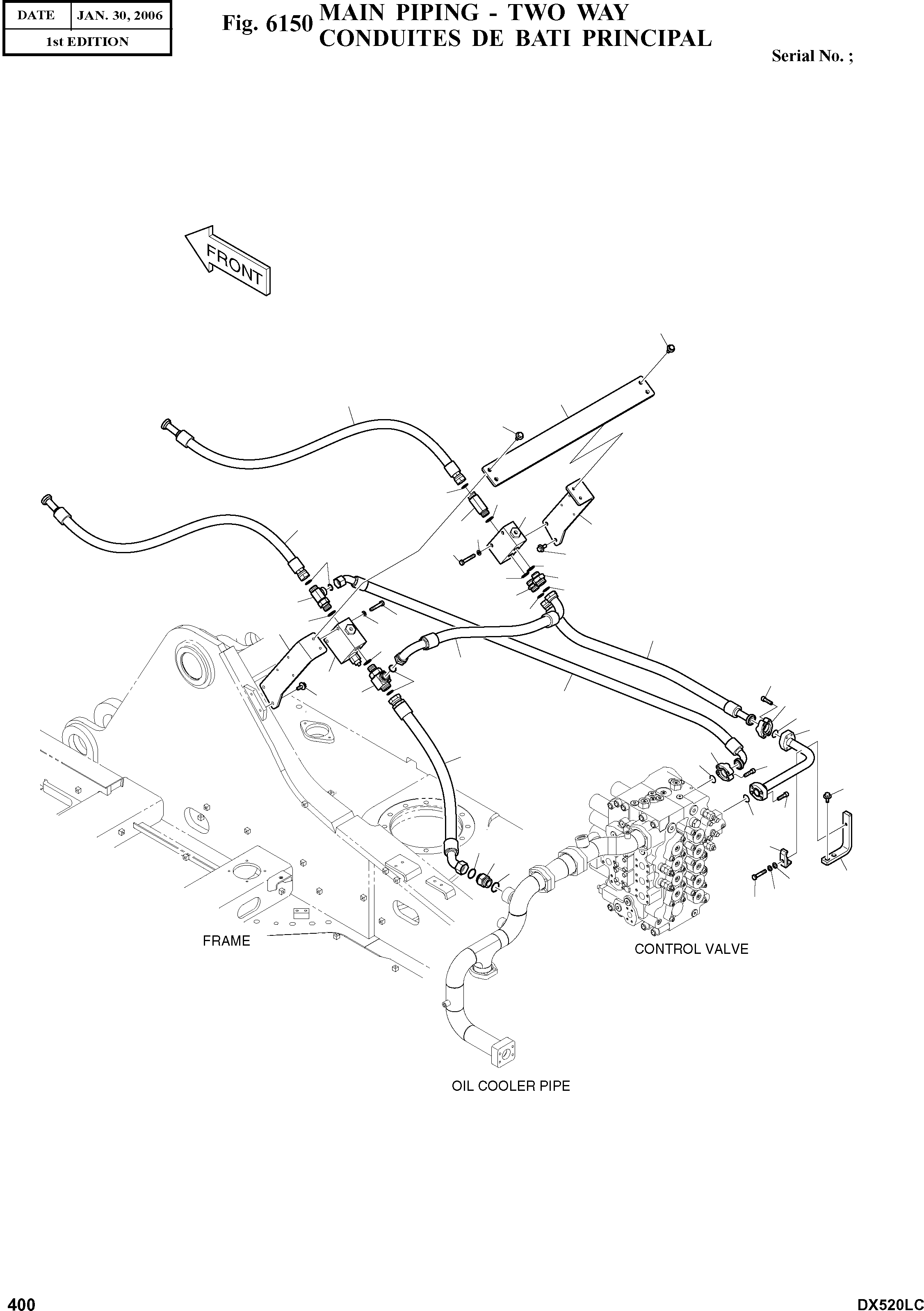

Запчасти Doosan Daewoo MAIN PIPING - TWO WAY OPTION PARTS

-

K1002416B

MAIN PIPING-TWO WAY

SC: D

-2шт.

1

426-00248A

VALVE;SELECT

desc: VANNE

1шт.

2

426-00249A

VALVE;SELECT

desc: VANNE

1шт.

3

2181-4133D6

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

4

DS2232111

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

5

DS2232107

ADAPTER

desc: ADAPTEUR

1шт.

6

2181-4133D35

ADAPTER

desc: RACCORD ADAPTEUR

1шт.

7

181-00121D8

TEE

desc: TE

1шт.

8

K1001440A

PIPE

desc: CONDUITE

1шт.

9

K1001444A

BRACKET

desc: SUPPORT

1шт.

10

DS2065026

HOSE

desc: TUYAU FLEXIBLE

1шт.

11

DS2016039

HOSE

desc: TUYAU FLEXIBLE

1шт.

12

DS2012267

HOSE

desc: TUYAU FLEXIBLE

1шт.

13

DS2016062

HOSE

desc: TUYAU FLEXIBLE

1шт.

14

DS2016062

HOSE

desc: TUYAU FLEXIBLE

1шт.

15

DS0025020

BOLT;SET

desc: BOULON A 6 PANS

10шт.

16

S0561466

BOLT

desc: BOULON A 6 PANS

2шт.

17

2180-1026D19

O-RING

desc: JOINT TORIQUE

3шт.

18

S8000291

O-RING

desc: JOINT TORIQUE

4шт.

19

S8030161

O-RING

desc: JOINT TORIQUE

4шт.

20

S0561266

BOLT

desc: BOULON A 6 PANS

2шт.

21

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE M12

5шт.

22

S5010713

WASHER;PLAIN

desc: RONDELLE

1шт.

23

S0561066

BOLT

desc: BOULON A 6 PANS

1шт.

25

2180-1026D37

O-RING

desc: JOINT TORIQUE

2шт.

26

2124-1026D3

CLAMP

desc: ATTACHE DE TUBE

1шт.

27

2181-9081

FLANGE;SPLIT

desc: BRIDE

4шт.

28

S2215566

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

12шт.

29

K1007520

BRACKET

desc: SUPPORT

1шт.

30

K1007521

BRACKET

desc: SUPPORT

1шт.

32

S8000381

O-RING

desc: JOINT TORIQUE

1шт.

41

K1006175

PLATE

desc: PLAQUE

1шт.

42

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

43

DS2412017

TEE

desc: TE

1шт.

44

2180-1026D37

O-RING

desc: JOINT TORIQUE

2шт.

45

DS2023220

HOSE

desc: TUYAU FLEXIBLE

1шт.
