Запчасти Doosan Daewoo TRAVEL PIPING - TRACK 3.52M OPTIONAL PARTS

-

K1002831A

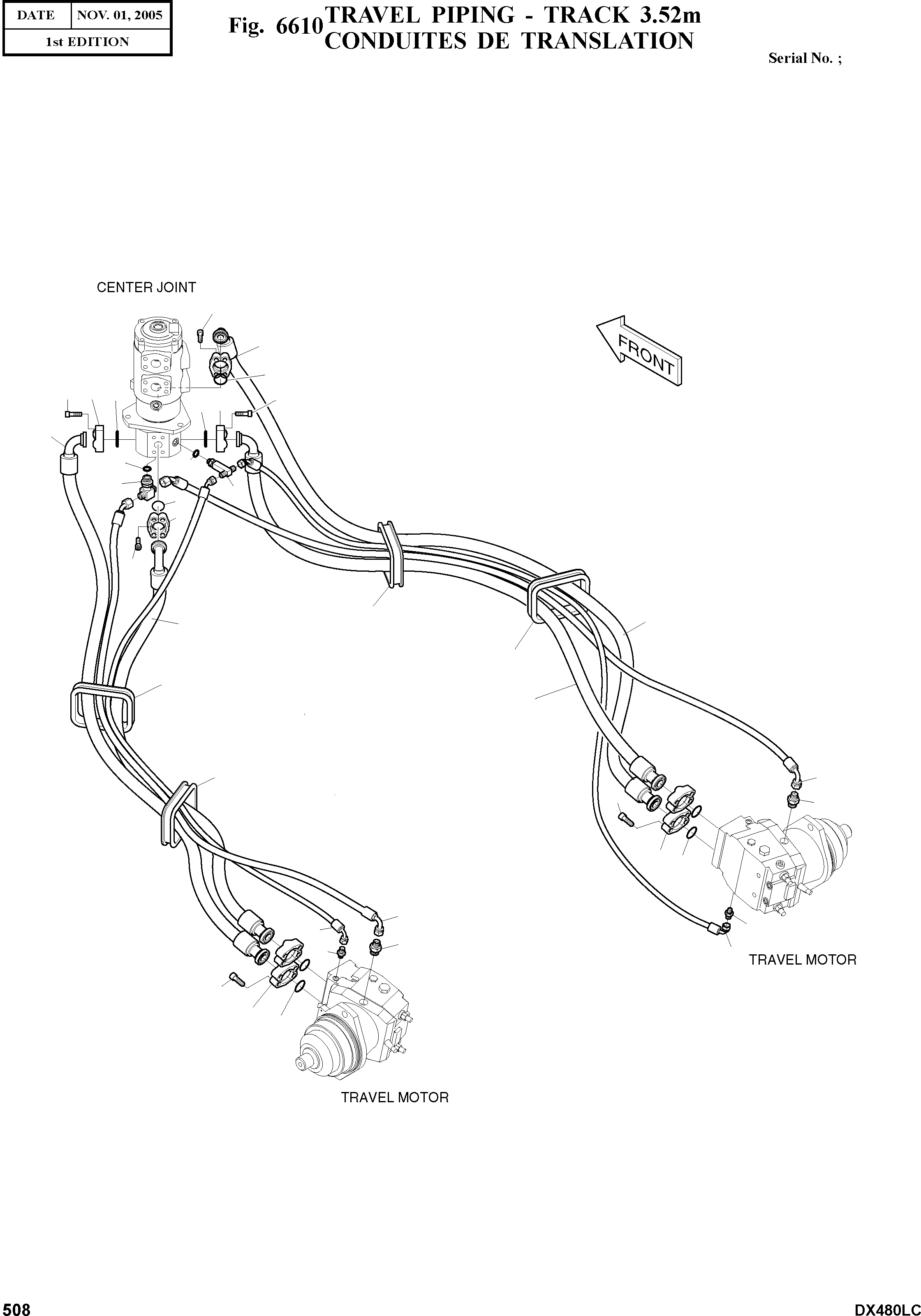

TRAVEL PIPING

SC: D

-2шт.

1

2160-4023A

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

4шт.

2

DS2040432

HOSE

desc: TUYAU FLEXIBLE

1шт.

3

DS2040398

HOSE

desc: TUYAU FLEXIBLE

1шт.

4

DS2040432

HOSE

desc: TUYAU FLEXIBLE

1шт.

5

DS2040398

HOSE

desc: TUYAU FLEXIBLE

1шт.

6

DS2058261

HOSE

desc: TUYAU FLEXIBLE

1шт.

7

DS2058262

HOSE

desc: TUYAU FLEXIBLE

1шт.

8

DS2090013

HOSE

desc: TUYAU FLEXIBLE

1шт.

9

DS2090014

HOSE

desc: TUYAU FLEXIBLE

1шт.

10

DS2347032

TEE

desc: TE

1шт.

11

DS2347024

TEE

desc: TE

1шт.

12

DS2479003

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

13

DS2479005

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

14

2181-9081

FLANGE;SPLIT

desc: BRIDE

8шт.

15

2181-9086

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

16

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

17

2180-1026D23

O-RING

desc: JOINT TORIQUE

4шт.

18

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

19

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

20

S2215466

BOLT;SOCKET

desc: BOULON DE PLOT

16шт.

21

S2218466

BOLT:SOCKET

desc: BOULON DE PLOT

16шт.
