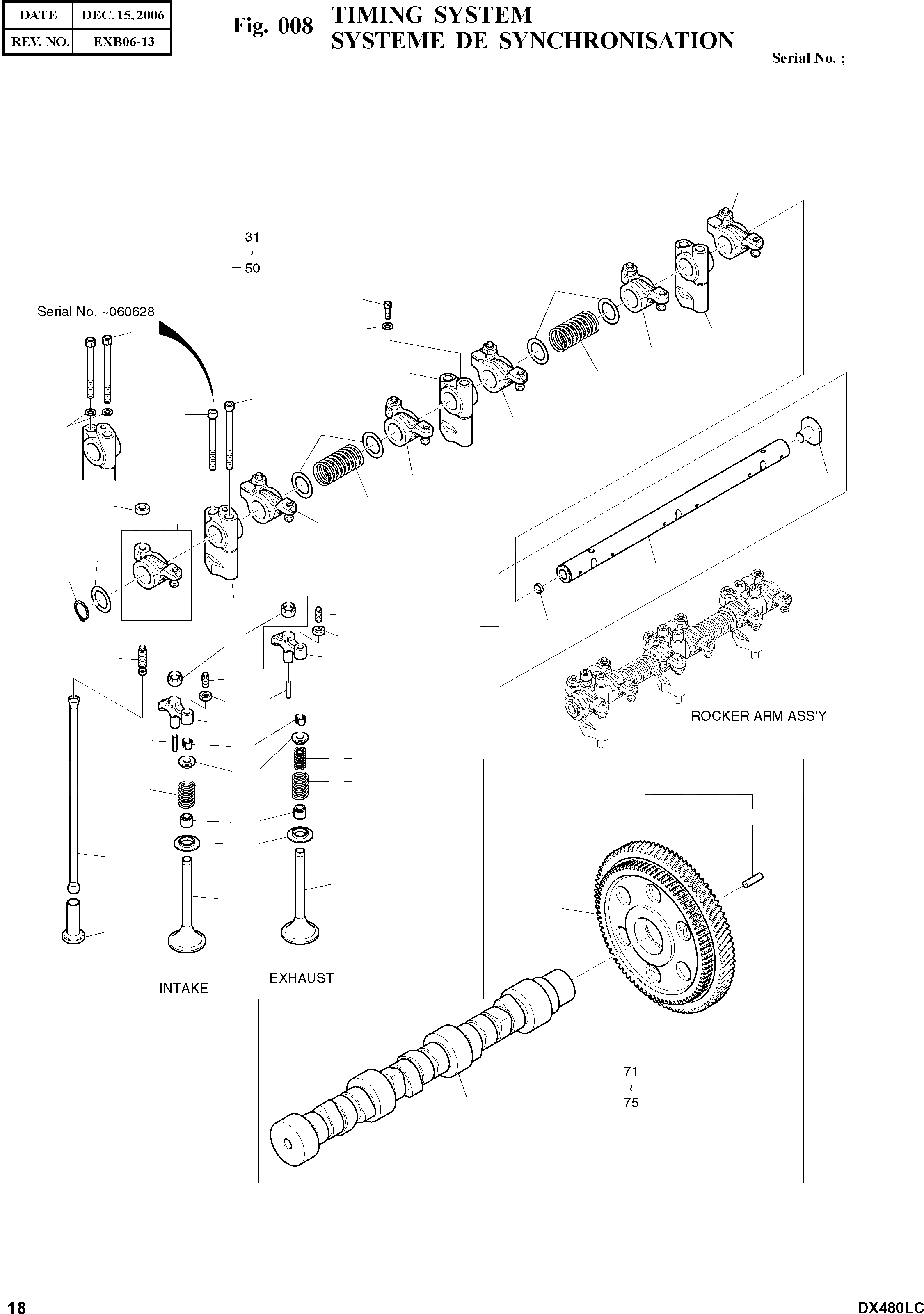

Запчасти Doosan Daewoo TIMING SYSTEM ENGINE PARTS

1

65.04101-0061B

VALVE;INTAKE

SERIAL: 050812

12шт.

1

65.04101-0061C

VALVE;INTAKE

SERIAL: 050813

12шт.

2

65.04101-0062C

VALVE;EXHAUST

desc: VANNE

12шт.

3

65.04102-6012A

SPRING;VALVE EXHAUST

desc: RESSORT DE SOUPAPE

12шт.

4

65.04102-0022A

SPRING;VALVE EXHAUST

desc: . RESSORT DE SOUPAPE

1шт.

5

65.04102-0023A

SPRING;VALVE EXHAUST

desc: . RESSORT DE SOUPAPE

1шт.

6

65.04102-0022A

SPRING;VALVE INTAKE

desc: RESSORT DE SOUPAPE

12шт.

7

65.04103-0017

PLATE;VALVE SPRING

desc: PLAQUE DE VANNE

24шт.

8

65.90701-0093A

WASHER

desc: RONDELLE

24шт.

9

65.04104-0008

COTTER;VALVE

desc: COTTER;VALVE

48шт.

10

65.04902-0014

SEAL;VALVE STEAM

desc: JOINT

24шт.

20

65.04130-6003B

CALIPER ASS'Y

desc: ETRIER

12шт.

21

65.04130-0003C

CALIPER

SC: D

1шт.

22

65.04205-0007A

SCREW;ADJUST

desc: . VIS

1шт.

23

65.90501-0031

NUT;HEX

desc: . ECROU

1шт.

24

65.04135-0002

PIN;CALIPER GUIDE

desc: GOUPILLE

12шт.

30

65.04200-6032D

ROCKER ARM S/F ASS'Y

SERIAL: 051220

2шт.

30

65.04200-6032E

ROCKER ARM S/F ASS'Y

SERIAL: 060911

2шт.

30

65.04200-6032F

ROCKER ARM S/F ASS'Y

SERIAL: 060912

2шт.

31

65.04201-5028

ARM;ROCKER

desc: . RAMPE DE CULBUTEURS

3шт.

32

65.04201-5029

ARM;ROCKER

desc: . RAMPE DE CULBUTEURS

3шт.

33

65.04205-0012

SCREW;ADJUST

desc: . VIS

6шт.

34

65.90501-0031

NUT;HEX

desc: . ECROU

6шт.

35

65.04203-5018

SHAFT;ROCKER ARM

SERIAL: 051220

1шт.

35

65.04203-5018A

SHAFT;ROCKER ARM

SERIAL: 051221

1шт.

36

65.04203-0018

SHAFT;ROCKER ARM

desc: .. AXE DU CULBUTEUR

1шт.

37

65.90302-0058

PLUG;CORE

desc: .. BOUCHON

1шт.

38

65.90302-0057

PLUG;CORE

desc: .. BOUCHON

1шт.

39

65.04202-0028

BRACKET;ROCKER ARM

desc: . SUPPORT

1шт.

40

65.04202-0030

BRACKET;ROCKER ARM

desc: . SUPPORT

1шт.

41

65.04202-0032

BRACKET;ROCKER ARM

SERIAL: 060628

1шт.

41

65.04202-0039

BRACKET;ROCKER ARM

SERIAL: 060629

1шт.

42

65.97601-0119

SPRING;COMPESSION

desc: . RESSORT

2шт.

43

65.90701-0136B

ROCKER ARM WASHER

desc: . RONDELLE

5шт.

44

06.29010-0120

RING;SNAP 24X1.2

desc: . CIRCLIP

1шт.

45

65.90030-0016

BOLT;SOCKET

SERIAL: 060628

3шт.

45

65.90020-0124A

BOLT;SOCKET

SERIAL: 060629

3шт.

46

65.90030-0017

BOLT;SOCKET

SERIAL: 06028

3шт.

46

65.90020-0125A

BOLT;SOCKET

SERIAL: 060629

3шт.

47

06.16110-0107

WASHER;SPRING 10

SERIAL: 060628

6шт.

48

65.90030-0018

BOLT;SOCKET

desc: . BOULON

1шт.

49

06.16110-0106

WASHER;SPRING A8

desc: . RONDELLE ELASTIQUE A8

1шт.

50

65.04209-0002

CAP;ADJUST SCREW

SERIAL: 051220

6шт.

50

65.04209-0002A

CAP;ADJUST SCREW

SERIAL: 051221

6шт.

60

65.04301-5002B

TAPPET;VALVE

desc: TRINGLERIE

12шт.

61

65.04302-5013A

ROD;PUSH

SERIAL: 060215

12шт.

61

65.04302-5013B

ROD;PUSH

SERIAL: 060216

12шт.

70

65.04401-6004C

CAMSHAFT

SERIAL: 051130

1шт.

70

65.04401-6004D

CAMSHAFT

SERIAL: 051131

1шт.

71

65.04401-0036A

CAMSHAFT

desc: . EQUIPAGE MOBILE

1шт.

72

65.04501-6001C

GEAR;CAM SHAFT ASS'Y

desc: . PIGNON

1шт.

73

65.04501-0013B

GEAR;CAM SHAFT

SC: D

1шт.

74

65.91010-0005A

PIN;STRAIGHT

SC: D

7шт.

75

65.11301-0029A

GEAR;INJECTION PUMP DRIVE

SERIAL: 051130

1шт.

75

65.11301-0040

GEAR;INJECTION PUMP DRIVE

SERIAL: 051131

1шт.
