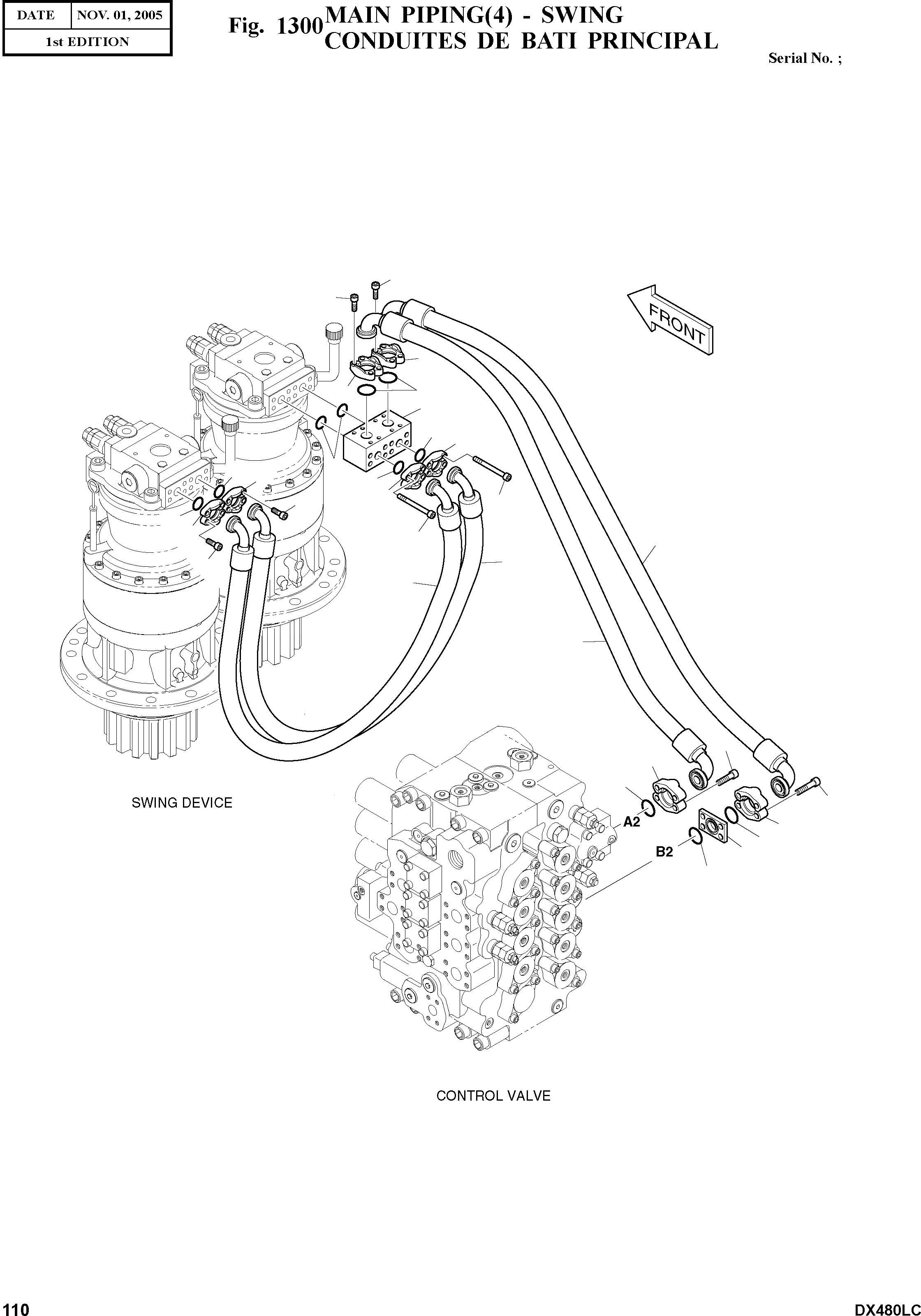

Запчасти Doosan Daewoo MAIN PIPING(4) - SWING BODY PARTS

-

K1001265C

MAIN PIPING

SC: D

-2шт.

9

K1001958

BLOCK

desc: BLOC

1шт.

20

DS2045347

HOSE

desc: TUYAU FLEXIBLE

1шт.

21

DS2045351

HOSE

desc: TUYAU FLEXIBLE

1шт.

22

DS2045343

HOSE

desc: TUYAU FLEXIBLE

1шт.

23

DS2045344

HOSE

desc: TUYAU FLEXIBLE

1шт.

36

2180-1026D19

O-RING

desc: JOINT TORIQUE

5шт.

37

2180-1026D2

O-RING

desc: JOINT TORIQUE

6шт.

40

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

49

S2215466

BOLT;SOCKET

desc: BOULON DE PLOT

4шт.

52

S2215766

BOLT;SOCKET

desc: BOULON DE PLOT

4шт.

53

S2212266

BOLT;SOCKET

desc: BOULON DE PLOT

16шт.

54

S2213666

BOLT;SOCKET

desc: BOULON DE PLOT

8шт.

60

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

61

2181-9081

FLANGE;SPLIT

desc: BRIDE

4шт.

72

K1004863

BLOCK;SPACER

desc: BLOC

1шт.
