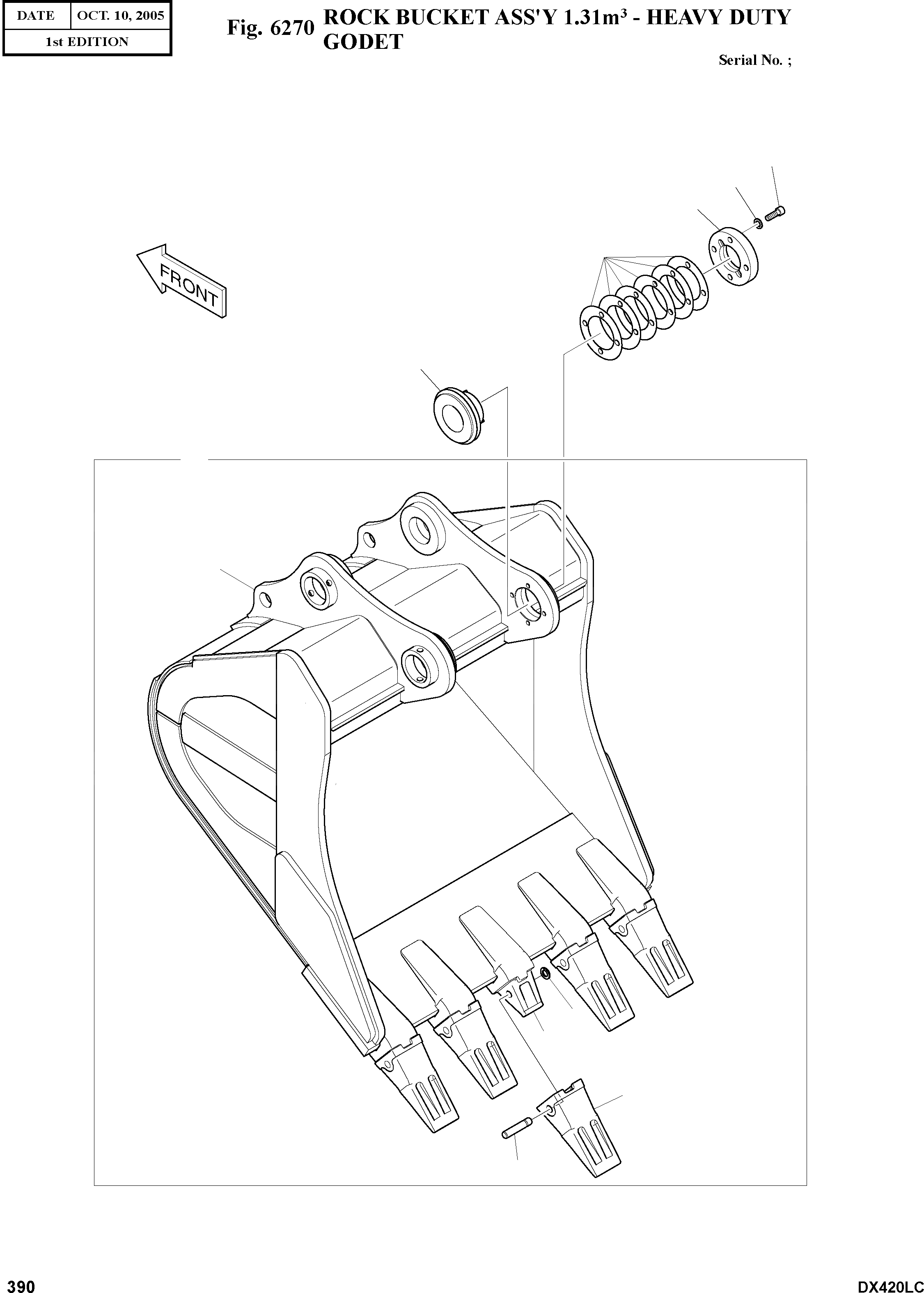

Запчасти Doosan Daewoo ROCK BUCKET ASSY 1.31M©ш - HEAVY DUTY OPTIONAL PARTS

-

K1009553A

BUCKET ASS'Y

SC: D

-2шт.

1

K1009556

BUCKET SUB ASS'Y-1.31§©

desc: GODET

1шт.

1-1

K1009557

BUCKET-1.31§©

desc: . GODET

1шт.

1-1A

2713-1273

ADPATER;TOOTH

desc: .. RACCORD ADAPTATEUR

5шт.

1-2

713-00052

POINT;TOOTH

desc: . DENT

5шт.

1-3

2705-1034

PIN

desc: . GOUJON

5шт.

1-4

2114-1931

WASHER;LOCKING

desc: . RONDELLE

5шт.

2

K1004410

BUSH;FLANGE

desc: DOUILLE

1шт.

3

K1004367A

STOPPER

desc: ARRET

1шт.

4

K1013572

SHIM

desc: CALE

6шт.

5

S2227866

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

4шт.

6

K1014252

WASHER;HARDEN

desc: RONDELLE

4шт.
