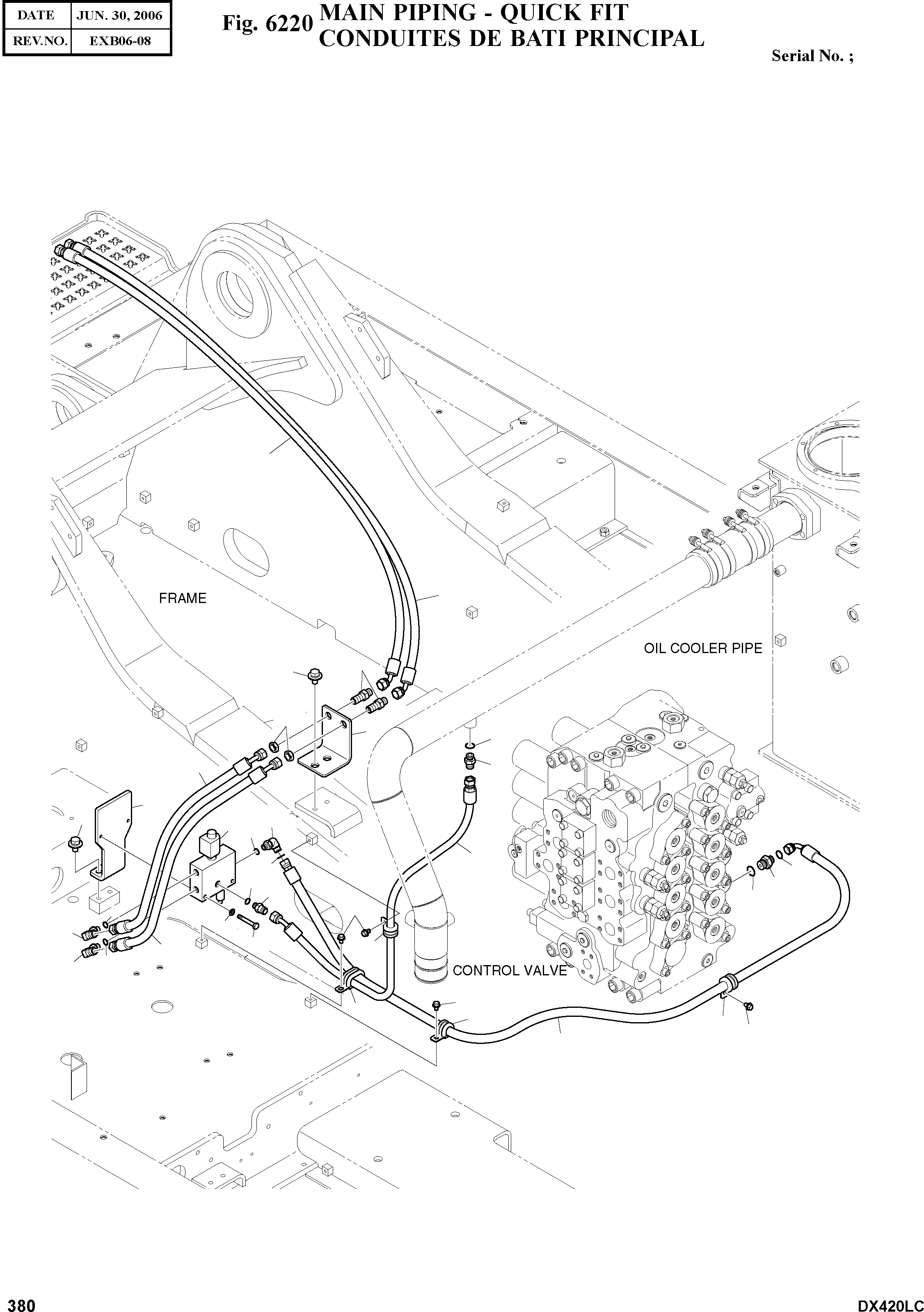

Запчасти Doosan Daewoo MAIN PIPING - QUICK FIT OPTIONAL PARTS

-

K1003204C

MAIN PIPING-QUICK FIT

SC: D

-2шт.

1

426-00287

VALVE;QUICK-FIT

desc: VANNE

1шт.

2

195-03123E

BRACKET

desc: SUPPORT

1шт.

3

181-00078D1

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

4

K1002573B

PLATE

desc: PLAQUE

1шт.

5

2181-1126D85

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

6

2181-4133D39

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

7

2181-1702D3

ELBOW

desc: COUDE

2шт.

9

S8000111

O-RING

desc: JOINT TORIQUE

4шт.

10

S8030061

O-RING

desc: JOINT TORIQUE

2шт.

11

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

12

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

13

DS2054298

HOSE

desc: TUYAU FLEXIBLE

1шт.

14

DS2054299

HOSE

desc: TUYAU FLEXIBLE

1шт.

15

DS2054353

HOSE

desc: TUYAU FLEXIBLE

1шт.

16

DS2054352

HOSE

desc: TUYAU FLEXIBLE

1шт.

17

DS2013583

HOSE

desc: TUYAU FLEXIBLE

1шт.

18

DS2092060

HOSE

desc: TUYAU FLEXIBLE

1шт.

19

DS0025019

BOLT;SET

desc: BOULON A 6 PANS

4шт.

20

S0556466

BOLT

desc: BOULON A 6 PANS

2шт.

21

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

22

121-00010D1

NUT

desc: ECROU

2шт.

23

2181-2815D5

ELBOW

desc: COUDE

1шт.

24

124-00209D1

CLIP

desc: BAGUE D'ARRET

1шт.

25

2181-1126D7

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

26

124-00208D3

CLIP

desc: BAGUE D'ARRET

2шт.

27

K1001029

BOLT

desc: BOULON A 6 PANS

3шт.
