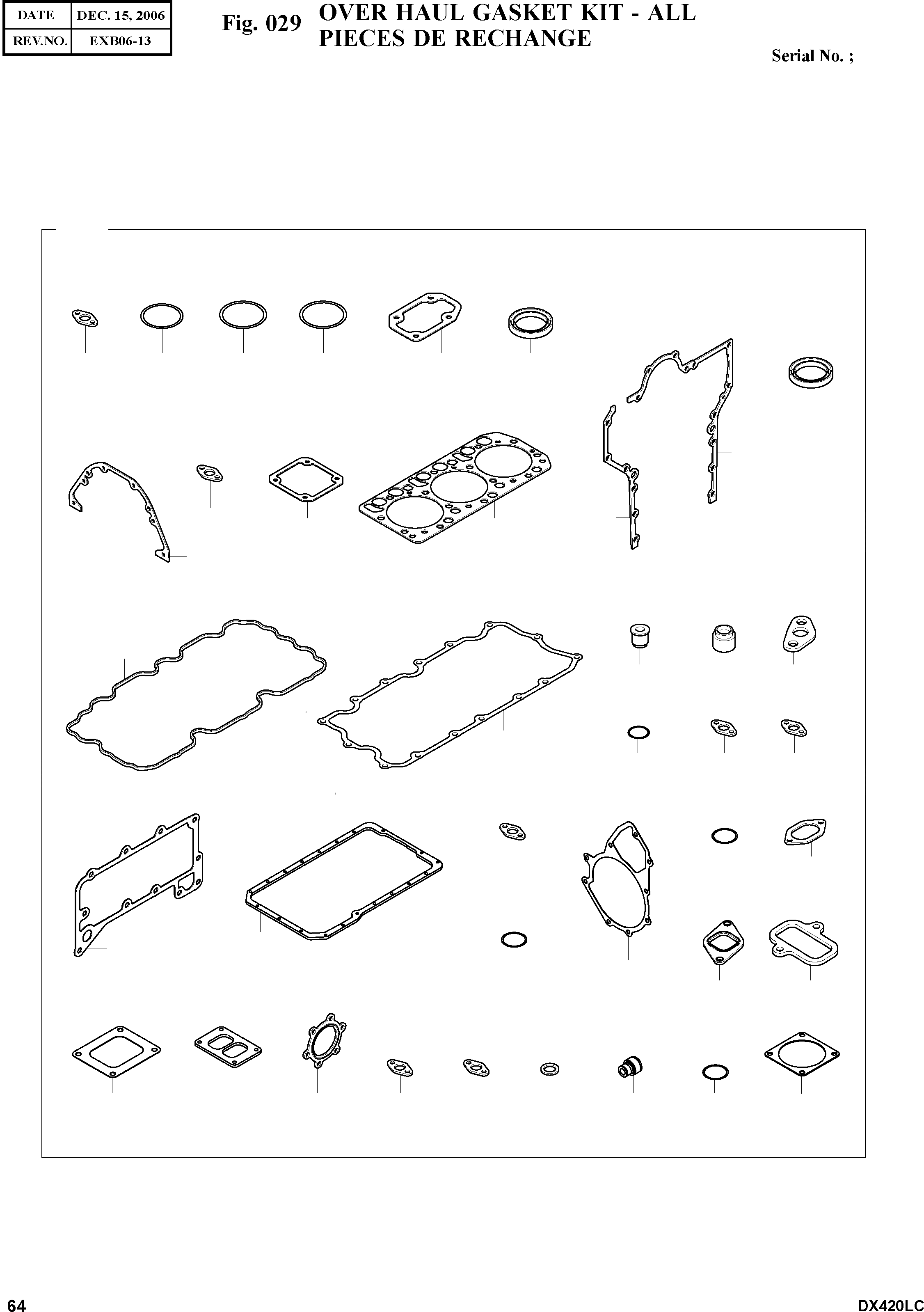

Запчасти Doosan Daewoo OVER HAUL GASKET KIT - ALL ENGINE PARTS

1
3
4
5
6
2
7
10
8
12
9
13
14
11
15
16
19
18
17
20
21
22
27
25
29
24
23
26
28
30
31
39
32
35
36
37
38
40
33
34

Артикул

Название

Примечание

Количество

1

65.99601-8066

ALL OVERHAUL GASKET KIT

desc: TOUS REVISENT LE KIT DE GARNITURE

1шт.

2

65.96601-0054

GASKET(C/W PIPE FLANGE)

desc: . JOINT

1шт.

3

65.96501-0059

O-RING CYL LINER UPPER

desc: . JOINT TORIQUE

6шт.

4

51.96501-0412

O-RING

desc: . JOINT TORIQUE

6шт.

5

65.96501-0078

O-RING;(LOW)

desc: . JOINT TORIQUE

6шт.

6

65.01904-0029

GASKET

desc: . JOINT

1шт.

7

65.01510-0141

OIL SEAL;RR

desc: . JOINT D'HUILE

1шт.

8

65.01904-0038

GASKET

desc: . JOINT

1шт.

9

65.01904-0037

GASKET

desc: . JOINT

1шт.

10

65.01510-0153A

SEAL;OIL

desc: . JOINT D'HUILE

1шт.

11

65.01905-0032

GASKET

desc: . JOINT

1шт.

12

65.96601A0237

GASKET

desc: . JOINT

6шт.

13

65.01908-0014

GASKET

desc: . JOINT

1шт.

14

65.03901-0067

GASKET;CYLINDER HEAD

desc: . JOINT

2шт.

15

65.03905-0033

GASKET;CYLINDER HEAD COVER

desc: . JOINT

2шт.

16

65.03905-5002

GASKET;CYLINDER HEAD COVER

desc: . JOINT

18шт.

17

65.03905-0030

GASKET;CYLINDER HEAD COVER

SERIAL: 060522

2шт.

17

65.03905-0030B

GASKET;CYLINDER HEAD COVER

SERIAL: 060523

2шт.

18

65.04902-0014

SEAL;VALVE STEAM

desc: . JOINT

24шт.

19

65.05903A0015

GASKET;RELIEF VALVE

desc: . JOINT

1шт.

20

65.96501-0072

O-RING

desc: . JOINT TORIQUE

1шт.

21

65.96601-0221B

GASKET

desc: . JOINT

2шт.

22

65.96601-0221B

GASKET

desc: . JOINT

2шт.

23

65.05901B0016

GASKET;OIL COOLER

desc: . JOINT(REFROIDISSEUR D'HUILE)

1шт.

24

65.05904-0034

GASKET;OIL PAN

desc: . JOINT

1шт.

25

65.96601-0055

GASKET

desc: . JOINT

1шт.

26

06.56342-1208

O-RING 60X4

desc: . JOINT TORIQUE

2шт.

27

65.06901A0069

GASKET

desc: . JOINT

2шт.

28

65.06901A0075

GASKET;WATER PUMP

desc: . JOINT DE POMPE A EAU(INTERIEUR)

1шт.

29

65.06903A0008

GASKET;COOLING WATER PIPE

desc: . JOINT(CONDUITE D'EAU)

1шт.

30

65.08901-0033A

GASKET;EXHAUST MANIFOLD

SERIAL: 050915

6шт.

30

65.08901-0043

GASKET;EXHAUST MANIFOLD

SERIAL: 050916

6шт.

31

65.08902-0028A

GASKET;INTAKE MANIFOLD

SERIAL: 060227

6шт.

31

65.08902-0028B

GASKET;INTAKE MANIFOLD

SERIAL: 060228

6шт.

32

65.09904-0013

GASKET;AIR INTAKE

desc: . JOINT

2шт.

33

65.09901-0033

GASKET;TURBO CHARGER

desc: . JOINT

1шт.

34

65.08901-0063

GASKET;EX. ELBOW

desc: . JOINT

1шт.

35

65.96601-0046A

GASKET(OIL PIPE ADPTR)

SERIAL: 060613

1шт.

35

65.96601-0046B

GASKET(OIL PIPE ADPTR)

SERIAL: 060614

1шт.

36

65.96601-0045A

GASKET;T/C OIL RETURN

SERIAL: 060613

1шт.

36

65.96601-0067

GASKET;T/C OIL RETURN

SERIAL: 060614

1шт.

37

65.96507-0053

RING;SEAL

desc: . BAGUE

6шт.

38

65.96210-6001A

CUSHION;RUBBER

desc: . CUSHION

4шт.

39

06.56180-0712

RING;SEAL A8X14

desc: . BAGUE

10шт.

40

65.08902-0010

GASKET

SERIAL: 051004

2шт.

40

65.08902A0010

GASKET

SERIAL: 051005

2шт.

Выбрано товаров: 46
