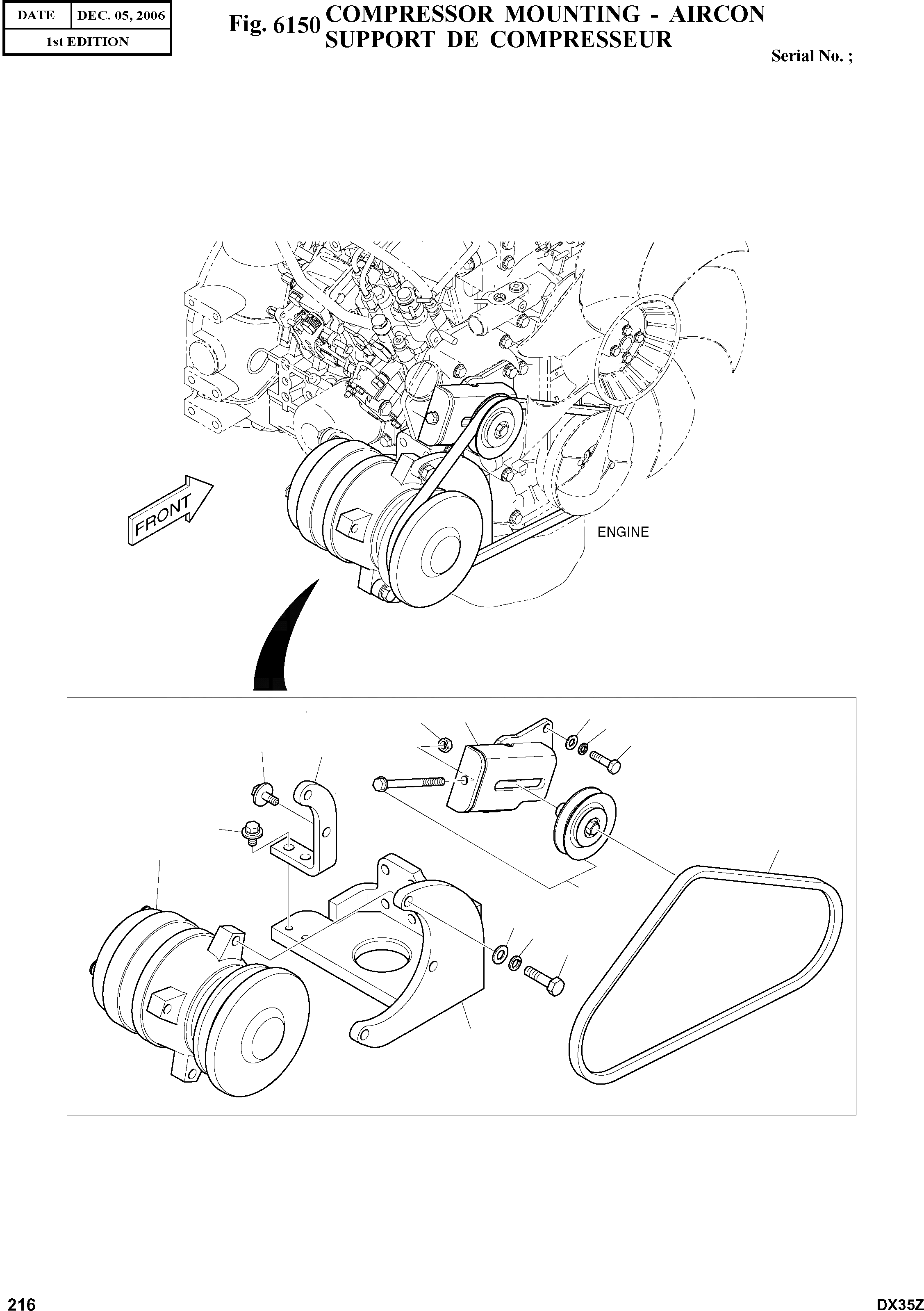

Запчасти Doosan Daewoo COMPRESSOR MOUNTING - AIRCON OPTIONAL PARTS

-

K1012817C

COMPRESSOR ASS'Y

SC: D

-2шт.

1

2208-6012B

COMPRESSOR

desc: COMPRESSEUR

1шт.

2

K1011359A

BRACKET;MTG ENGINE

desc: SUPPORT

1шт.

3

K1012807

BRACKET

desc: SUPPORT

1шт.

4

S0512466

BOLT

desc: BOULON

3шт.

5

S5010603

WASHER;PLAIN

desc: RONDELLE

3шт.

6

S5110603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

7

DS0025033

BOLT;SET

desc: BOULON

2шт.

8

K1012818

PULLEY ASS`Y

desc: POULIE

1шт.

9

DS3202028

BELT;AIRCON

desc: COURROIE

1шт.

10

K1012811B

BRACKET;PULLEY

desc: SUPPORT

1шт.

11

S0509053

BOLT

desc: BOULON

3шт.

13

DS0025032

BOLT;SET

desc: BOULON

2шт.

14

S4012533

NUT

desc: ECROU

1шт.

15

S5010513

WASHER;PLAIN

desc: RONDELLE

3шт.

16

S5110503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.
