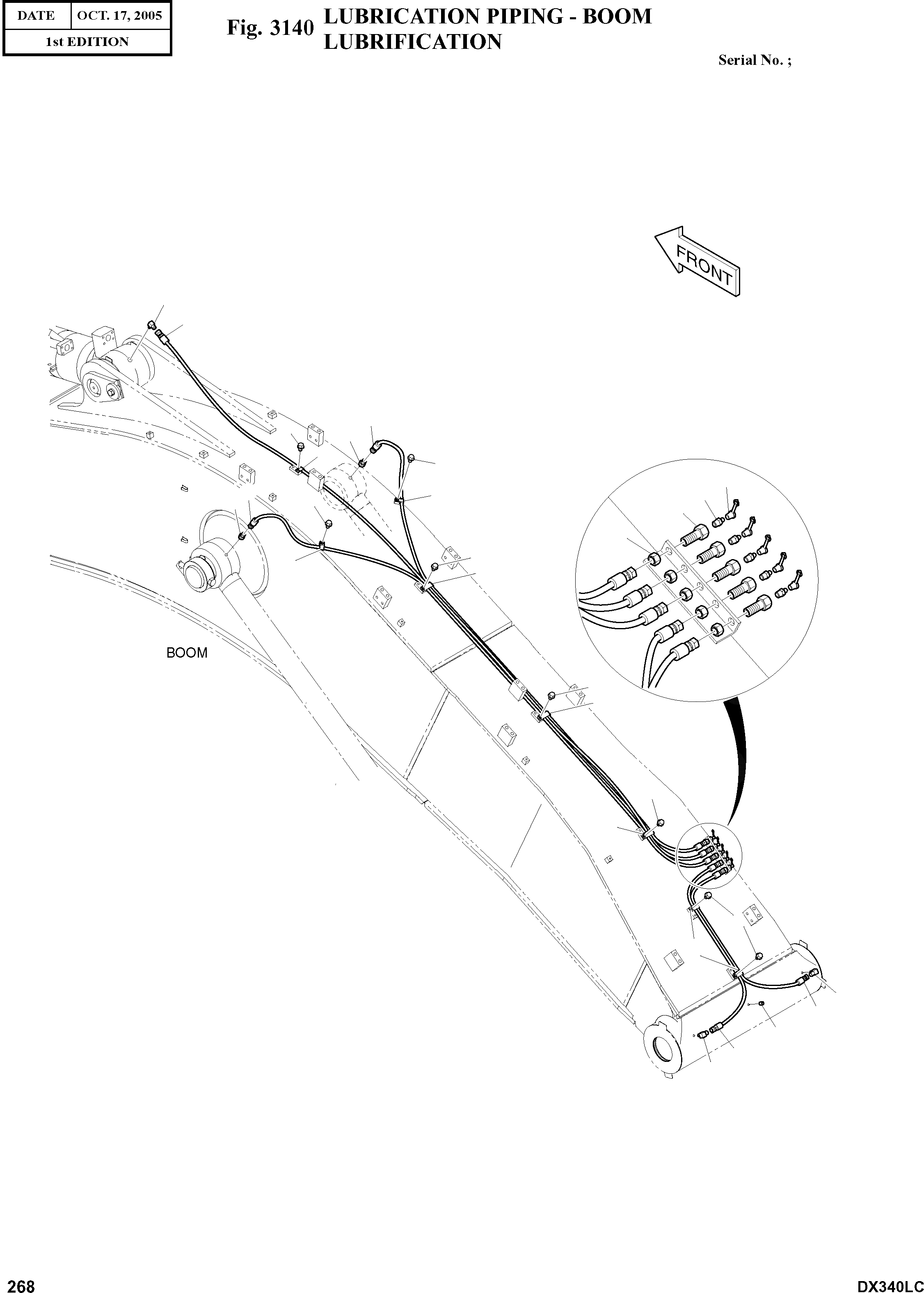

Запчасти Doosan Daewoo LUBRICATION PIPING - BOOM FRONT ATTACHMENTS

-

K1006204

LUBRICATION PIPING

SC: D

-2шт.

1

2184-1045D210

HOSE

desc: TUYAU FLEXIBLE

1шт.

2

DS2053834

HOSE

desc: TUYAU FLEXIBLE

1шт.

3

2184-1045D96

HOSE

desc: TUYAU FLEXIBLE

1шт.

4

DS2053735

HOSE

desc: TUYAU FLEXIBLE

1шт.

5

2184-1045D131

HOSE

desc: TUYAU FLEXIBLE

1шт.

6

K1001029

BOLT

desc: BOULON A 6 PANS

8шт.

7

S3524403

PLUG;DRAIN

desc: BOUCHON

1шт.

8

S6710041

NIPPLE;GREASE

desc: GRAISSEUR

5шт.

9

181-00103

REDUCER

desc: REDUCTEUR

5шт.

10

121-00006

NUT

desc: ECROU

5шт.

11

160-00020

CAP;GREASE NIPPLE

desc: CHAPEAU

5шт.

12

124-00199D5

CLIP

desc: ATTACHE

2шт.

13

2181-1186D12

ELBOW

desc: RACCORD ADAPTATEUR

3шт.

14

124-00199D4

CLIP

desc: ATTACHE

3шт.

15

2124-1353D2

CLIP

desc: CLIP

3шт.

16

2181-4112

ADAPTER

desc: RACCORD ADAPTEUR

2шт.
