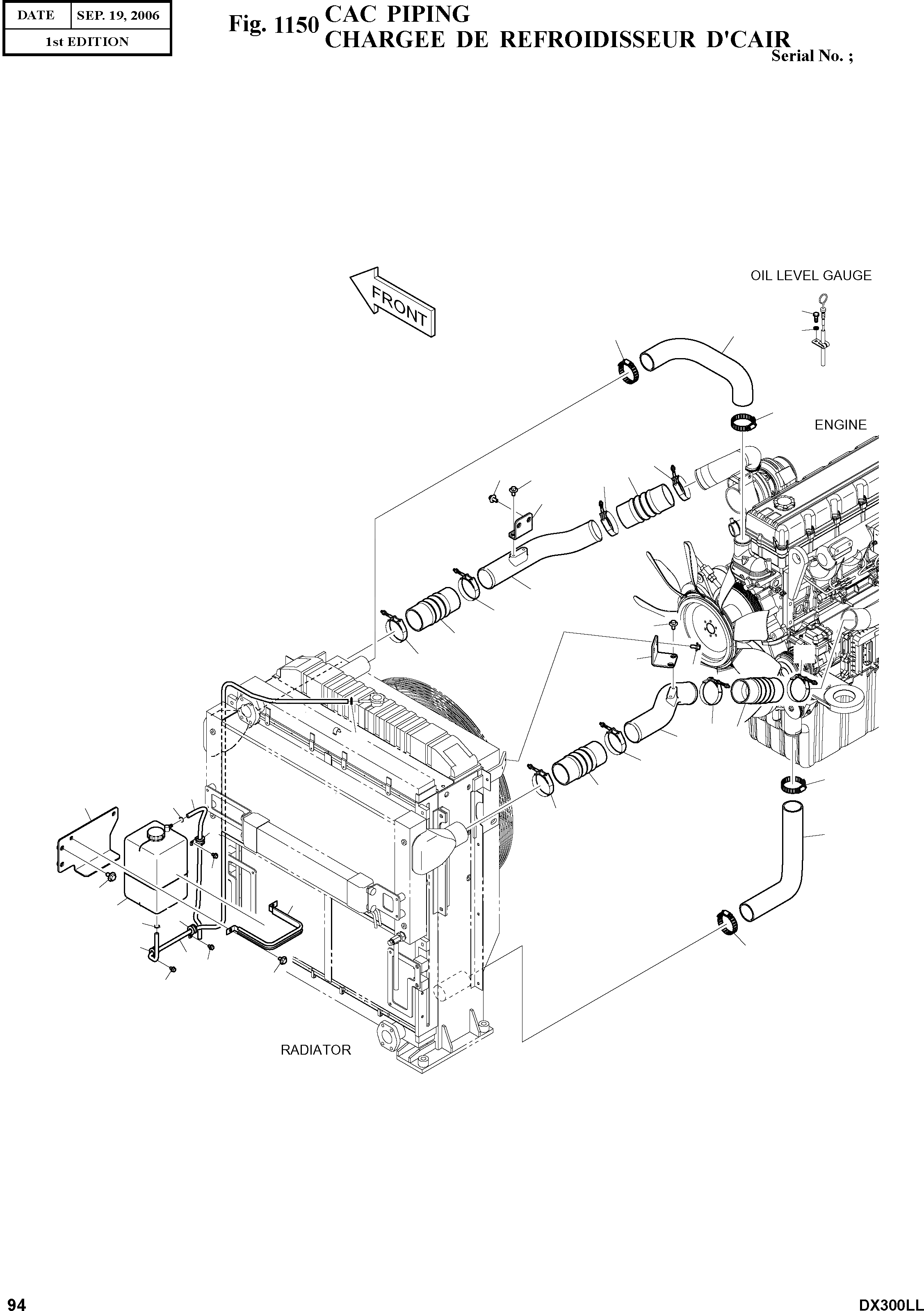

Запчасти Doosan Daewoo CAC PIPING BODY PARTS

-

201-00189G

ENGINE ASS'Y

SC: D

-2шт.

4

185-00398A

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

5

185-00399A

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

10

K1003354A

TANK;RESERVE

desc: RESERVOIR A GAZOLE

1шт.

11

185-00298

HOSE

desc: TUYAU FLEXIBLE

1шт.

12

K1004515

HOSE;WATER

desc: TUYAU FLEXIBLE

1шт.

22

124-00208D2

CLIP

desc: ATTACHE

3шт.

29

S8470075

CLAMP;HOSE

desc: COLLIER

4шт.

30

S8450006

CLAMP:HOSE

desc: COLLIER

3шт.

35

K1001029

BOLT

desc: BOULON A 6 PANS

3шт.

36

K1002851

CLAMP

desc: COLLIER

1шт.

37

193-00798B

PIPE;CAC

desc: CONDUITE

1шт.

38

193-00799A

PIPE;CAC

desc: CONDUITE

1шт.

39

195-02746

BRACKET

desc: SUPPORT

1шт.

40

195-02761

BRACKET

desc: SUPPORT

1шт.

41

K1012214

HOSE;CAC

desc: TUYAU FLEXIBLE

4шт.

42

DS0025017

BOLT;SET

desc: BOULON A 6 PANS

8шт.

43

124-00194

CLAMP

desc: COLLIER

8шт.

51

DS0025014

BOLT;SET

desc: BOULON A 6 PANS

2шт.

52

K1006620

BRACKET

desc: SUPPORT

1шт.

53

DS0025015

BOLT;SET

desc: BOULON A 6 PANS

2шт.

54

S0508866

BOLT

desc: BOULON A 6 PANS

1шт.

55

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.
