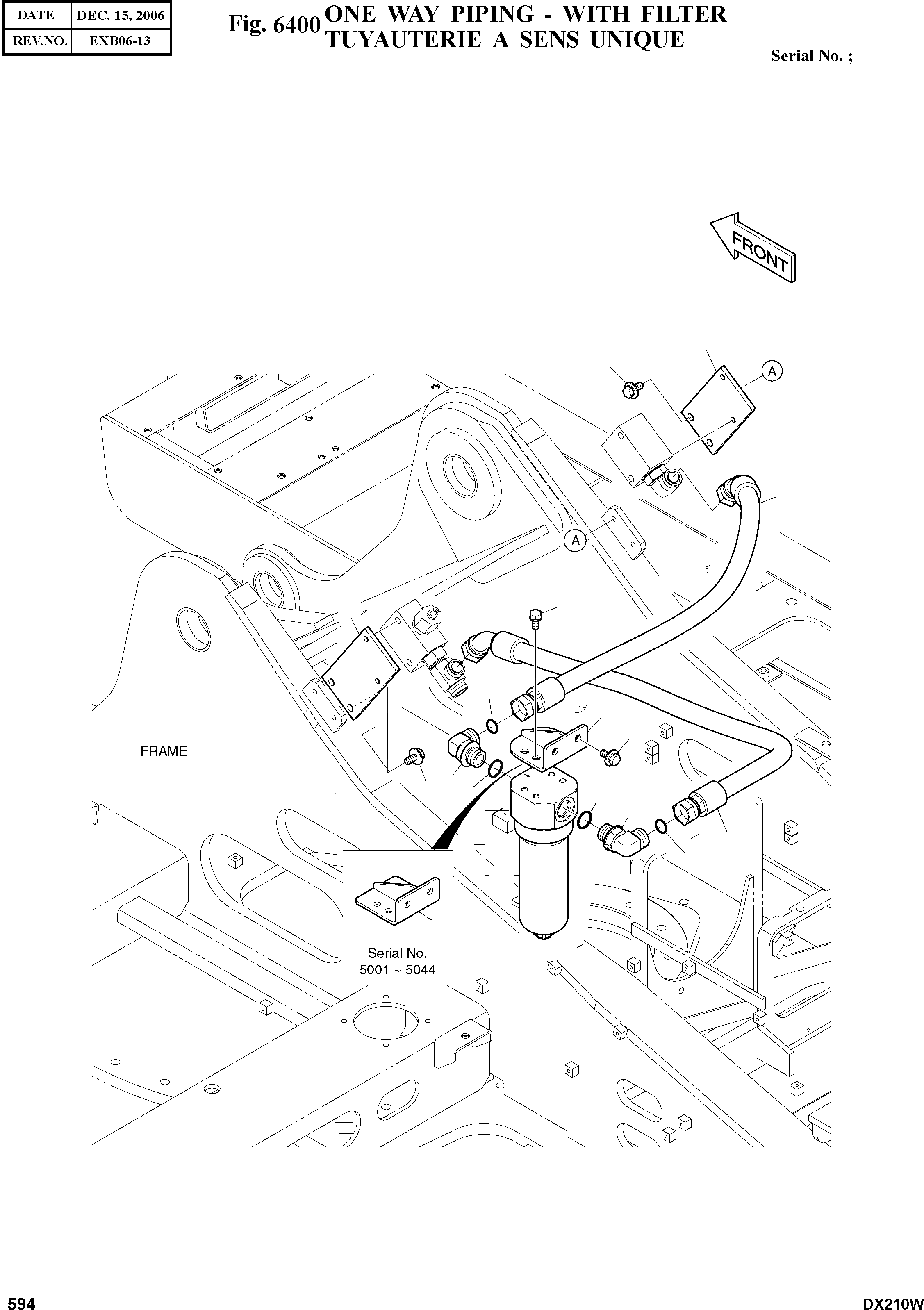

Запчасти Doosan Daewoo ONE WAY PIPING - WITH FILTER OPTION PARTS

-

K1009857B

ONE WAY PIPING-WITH FILTER

SC: D

-2шт.

1

DS2012217

HOSE

desc: TUYAU FLEXIBLE

1шт.

2

DS2012444

HOSE

desc: TUYAU FLEXIBLE

1шт.

3

K1027643

BRACKET

SERIAL: 5001-5044

1шт.

3

K1027643A

BRACKET

SERIAL: 5045

1шт.

4

K1016006

PLATE

desc: PLAQUE

1шт.

5

K1016005

PLATE

desc: PLAQUE

1шт.

6

471-00114

FILTER;BREAKER

desc: FILTRE

1шт.

6A

474-00046

ELEMENT;BREAKER FILTER

desc: . ELEMENT

1шт.

7

2181-2815D1

ELBOW

desc: COUDE

2шт.

8

DS0025018

BOLT;SET

desc: BOULON A 6 PANS

6шт.

9

DS0025021

BOLT;SET

desc: BOULON A 6 PANS

4шт.

10

S8000291

O-RING

desc: JOINT TORIQUE

2шт.

11

S8030161

O-RING

desc: JOINT TORIQUE

2шт.
