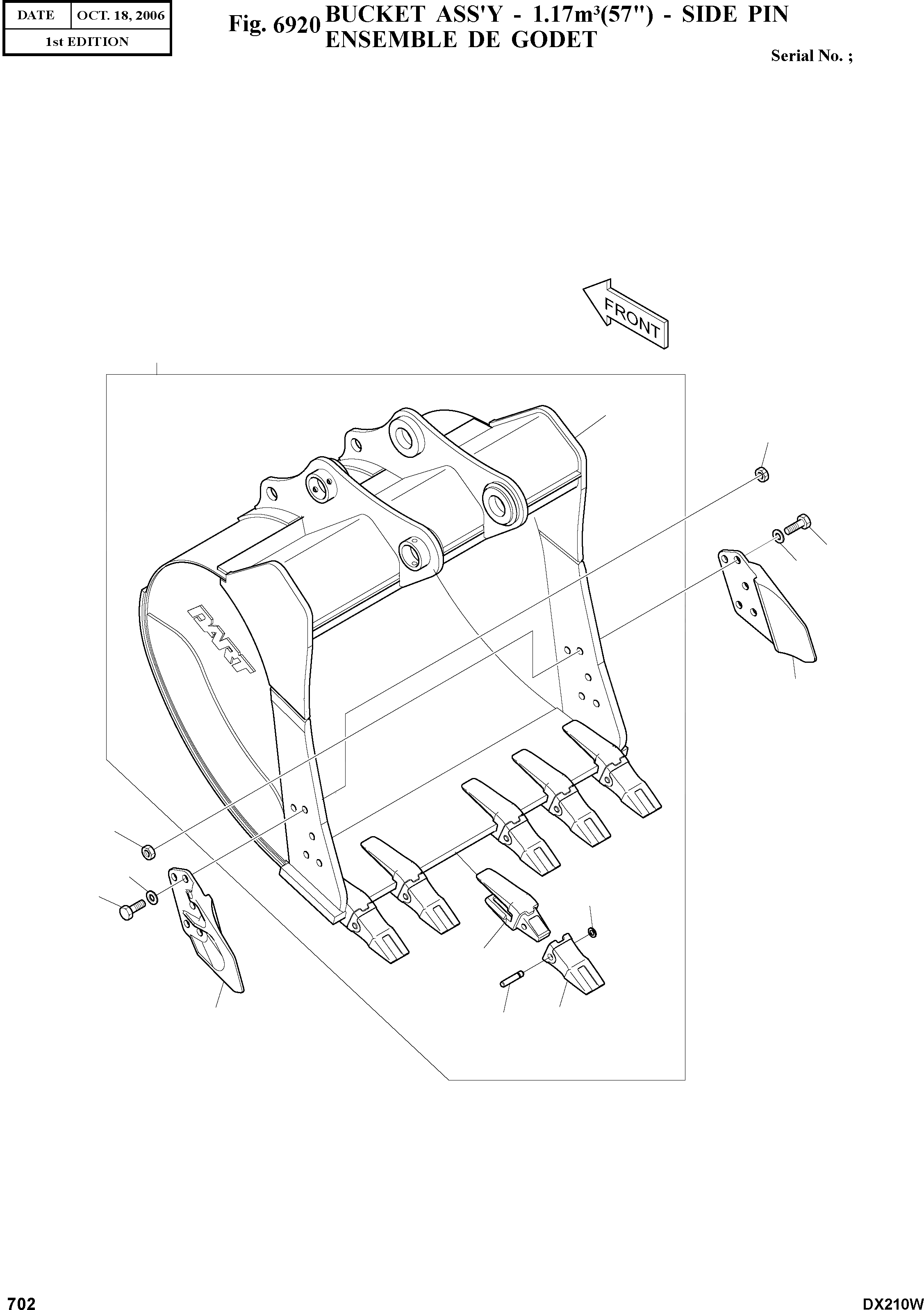

Запчасти Doosan Daewoo BUCKET ASSY - 1.17M©ш(57") - SIDE PIN OPTION PARTS

-

K1013113

BUCKET ASS'Y-1.17§©

desc: GODET

1шт.

1

K1013114

BUCKET;WITH TOOTH-1.17§©

SC: D

1шт.

1A

K1013115

BUCKET;WELD-1.17§©

desc: . GODET

1шт.

1AA

2713-1218

ADAPTER;TOOTH

desc: .. DENT DE ADAPTEUR

6шт.

1B

713-00024

TOOTH;POINT

desc: . DENT

6шт.

1C

2705-1020

PIN;LOCKING

desc: . GOUPILLE

6шт.

1D

2114-1848A

WASHER;LOCKING

desc: . RONDELLE

6шт.

2

2713-1059A

CUTTER;SIDE(R.H)

desc: COIN DE GODET DROIT

1шт.

3

2713-1060A

CUTTER;SIDE(L.H)

desc: COIN DE GODET DROIT

1шт.

4

S0574861

BOLT

desc: BOULON A 6 PANS

10шт.

5

S4013333

NUT

desc: ECROU 6 PANS M8

10шт.

6

2114-1831A

WASHER;HARD

desc: RONDELLE ELASTIQUE

10шт.
