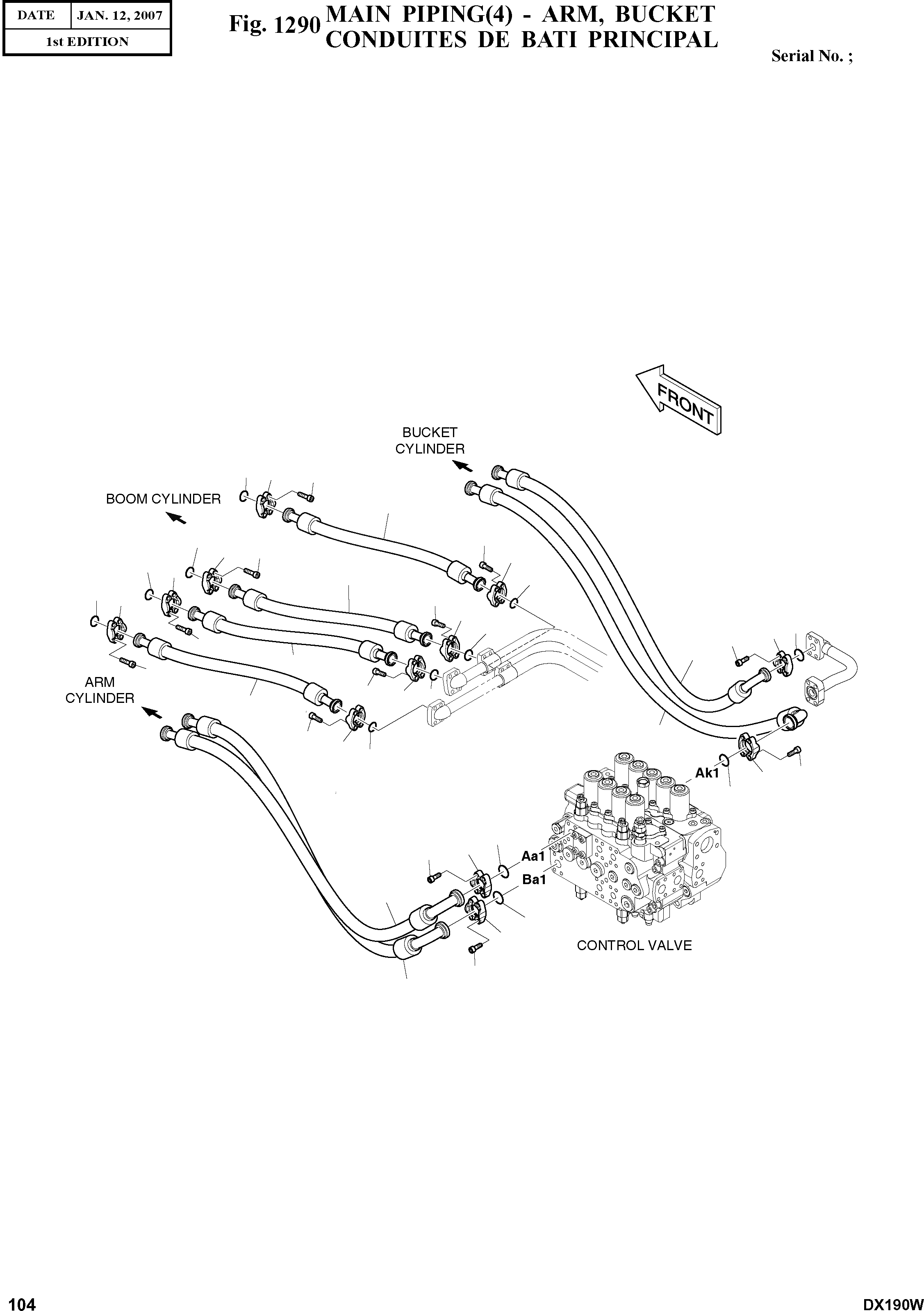

Запчасти Doosan Daewoo MAIN PIPING(4) - ARM. BUCKET BODY PARTS

-

K1024306B

MAIN PIPING

SC: D

-2шт.

1

DS2040565

HOSE

desc: TUYAU FLEXIBLE

1шт.

2

DS2040564

HOSE

desc: TUYAU FLEXIBLE

1шт.

3

DS2040562

HOSE

desc: TUYAU FLEXIBLE

1шт.

4

DS2040563

HOSE

desc: TUYAU FLEXIBLE

1шт.

5

DS2038249

HOSE

desc: TUYAU FLEXIBLE

4шт.

6

2181-9079

FLANGE

desc: BRIDE

18шт.

7

2181-9083

FLANGE;SPLIT

desc: BRIDE

6шт.

8

2180-1026D2

O-RING

desc: JOINT TORIQUE

9шт.

9

2180-1026D19

O-RING

desc: JOINT TORIQUE

3шт.

10

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

48шт.
