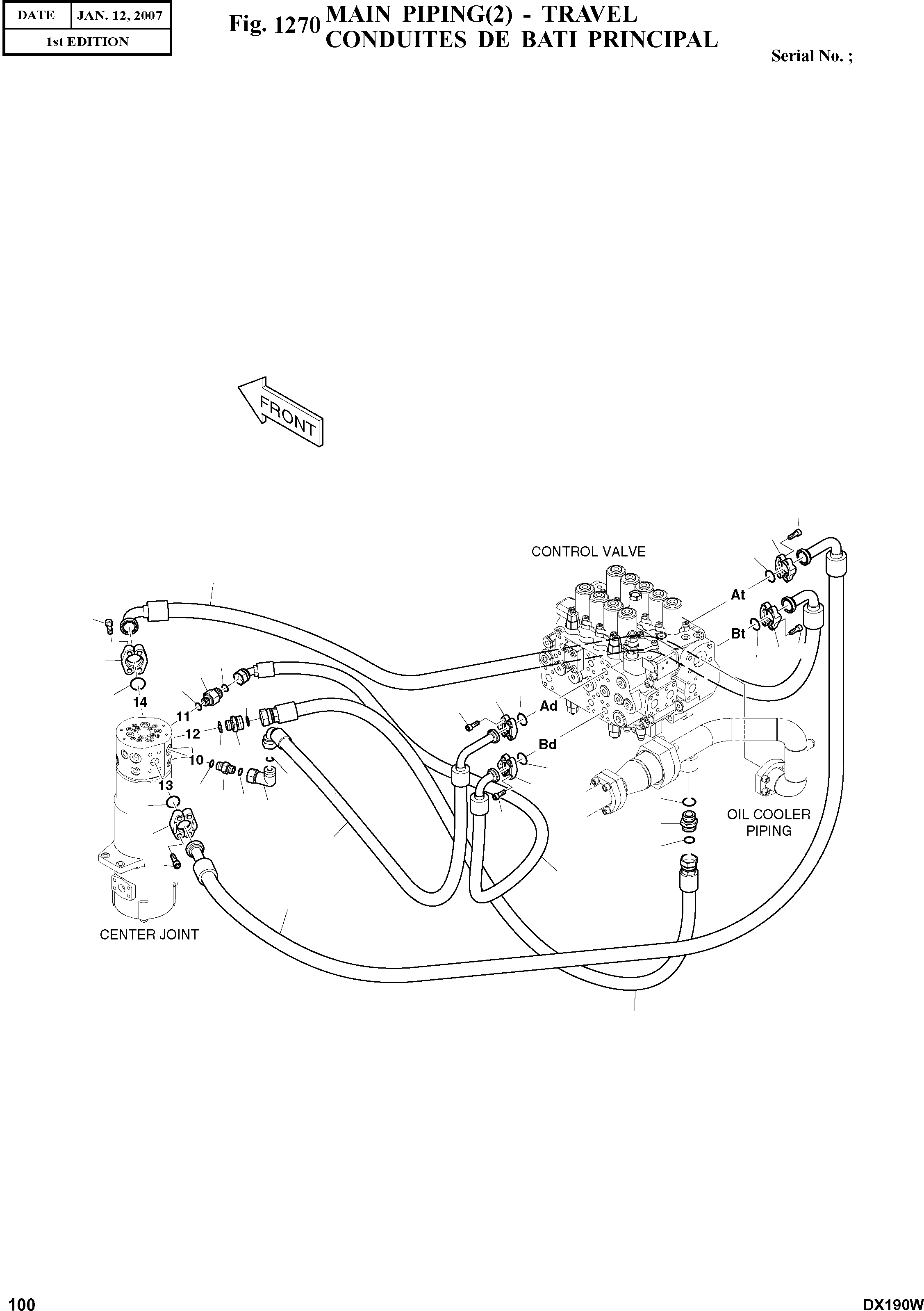

Запчасти Doosan Daewoo MAIN PIPING(2) - TRAVEL BODY PARTS

-

K1023802C

MAIN PIPING

SC: D

-2шт.

3

DS2040596

HOSE

desc: TUYAU FLEXIBLE

1шт.

4

DS2045455

HOSE

desc: TUYAU FLEXIBLE

1шт.

5

DS2026186

HOSE

desc: TUYAU FLEXIBLE

1шт.

6

DS2065040

HOSE

desc: TUYAU FLEXIBLE

1шт.

10

DS2011670

HOSE

desc: TUYAU FLEXIBLE

1шт.

19

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

20

2180-1026D2

O-RING

desc: JOINT TORIQUE

2шт.

22

S2215466

BOLT;SOCKET

desc: BOULON

8шт.

24

2181-9079

FLANGE;SPLIT

desc: BRIDE

4шт.

25

2181-9081

FLANGE;SPLIT

desc: BRIDE

4шт.

26

2181-9083

FLANGE;SPLIT

desc: BRIDE

4шт.

27

2181-4133D6

ADAPTER

desc: ADAPTEUR

1шт.

29

S2212266

BOLT;SOCKET

desc: BOULON

16шт.

36

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

38

S8030161

O-RING

desc: JOINT TORIQUE

2шт.

43

DS2234001

ADAPTER

desc: ADAPTEUR

1шт.

44

DS2234013

ADAPTER

desc: ADAPTEUR

1шт.

47

S8000241

O-RING

desc: JOINT TORIQUE

1шт.

48

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

49

S8030121

O-RING

desc: JOINT TORIQUE

3шт.

50

DS2291009

ELBOW

desc: COUDE

1шт.

51

2181-4133D3

ADAPTER

desc: ADAPTEUR

1шт.
