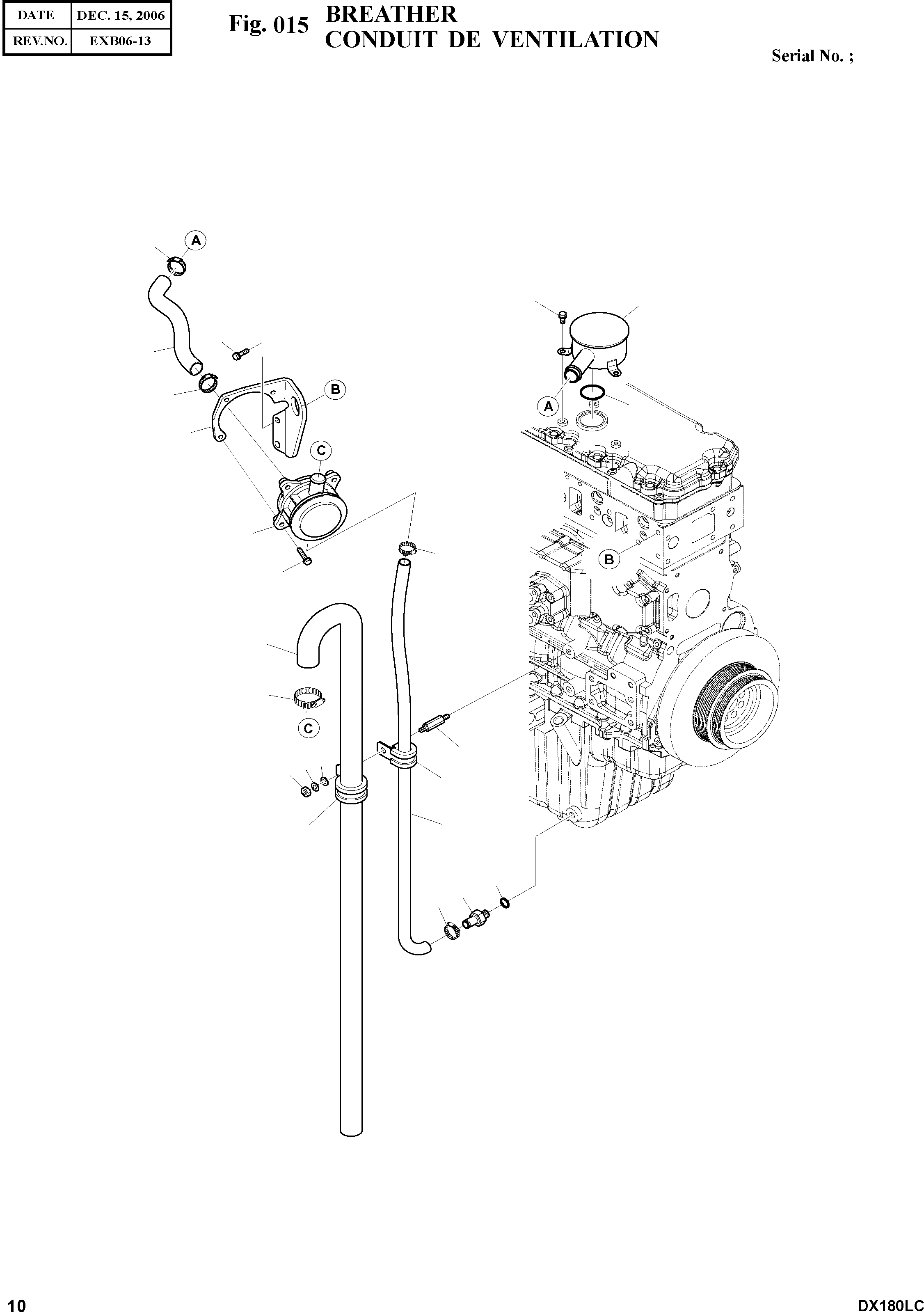

Запчасти Doosan Daewoo BREATHER ENGINE PARTS

1

65.01801-5100

HOUSING;BREATHER

desc: LOGEMENT DE RENIFLARD

1шт.

2

65.01840-0017

BRACKET;BREATHER PIPE

desc: SUPPORT

1шт.

3

06.01923-3114

BOLT ASS'Y M8X22

desc: BOULON A 6 PANS

3шт.

4

06.01924-3217

BOLT ASS'Y M10X30

desc: BOULON A 6PANS

2шт.

5

65.96301-0478

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

6

06.67020-0105

CLAMP

desc: COLLIER

2шт.

7

65.96301-0456A

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

8

65.97440-0005

CLAMP;HOSE

desc: COLLIER

2шт.

9

65.96301-0464

HOSE;RUBBER

SERIAL: 061201

1шт.

9

65.96301-0464A

HOSE;RUBBER

SERIAL: 061202

1шт.

10

06.67020-0105

CLAMP

desc: COLLIER

1шт.

11

65.90201-0122

BOLT;STUD

desc: BOULON A 6 PANS

1шт.

12

65.97401-5024

CLIP;PIPE

desc: ATTACHE

2шт.

13

65.97401-5019

CLIP;PIPE

desc: ATTACHE

1шт.

14

06.15010-2311

WASHER

desc: CALE

1шт.

15

06.16731-2107

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

16

06.11063-8214

NUT

desc: ECROU 6 PANS

1шт.

17

65.98131-0119

NIPPLE

desc: GRAISSEUR

1шт.

18

06.56190-0719

SEAL RING

desc: BAGUE D'ETANCHEITE

1шт.

20

65.01801-5043A

HOUSING;BREATHER

desc: LOGEMENT DE RENIFLARD

1шт.

21

65.96501-0033B

O-RING

desc: JOINT TORIQUE

1шт.

22

06.01923-3111

BOLT;HEX. M8X16

desc: BOULON A 6 PANS

3шт.
