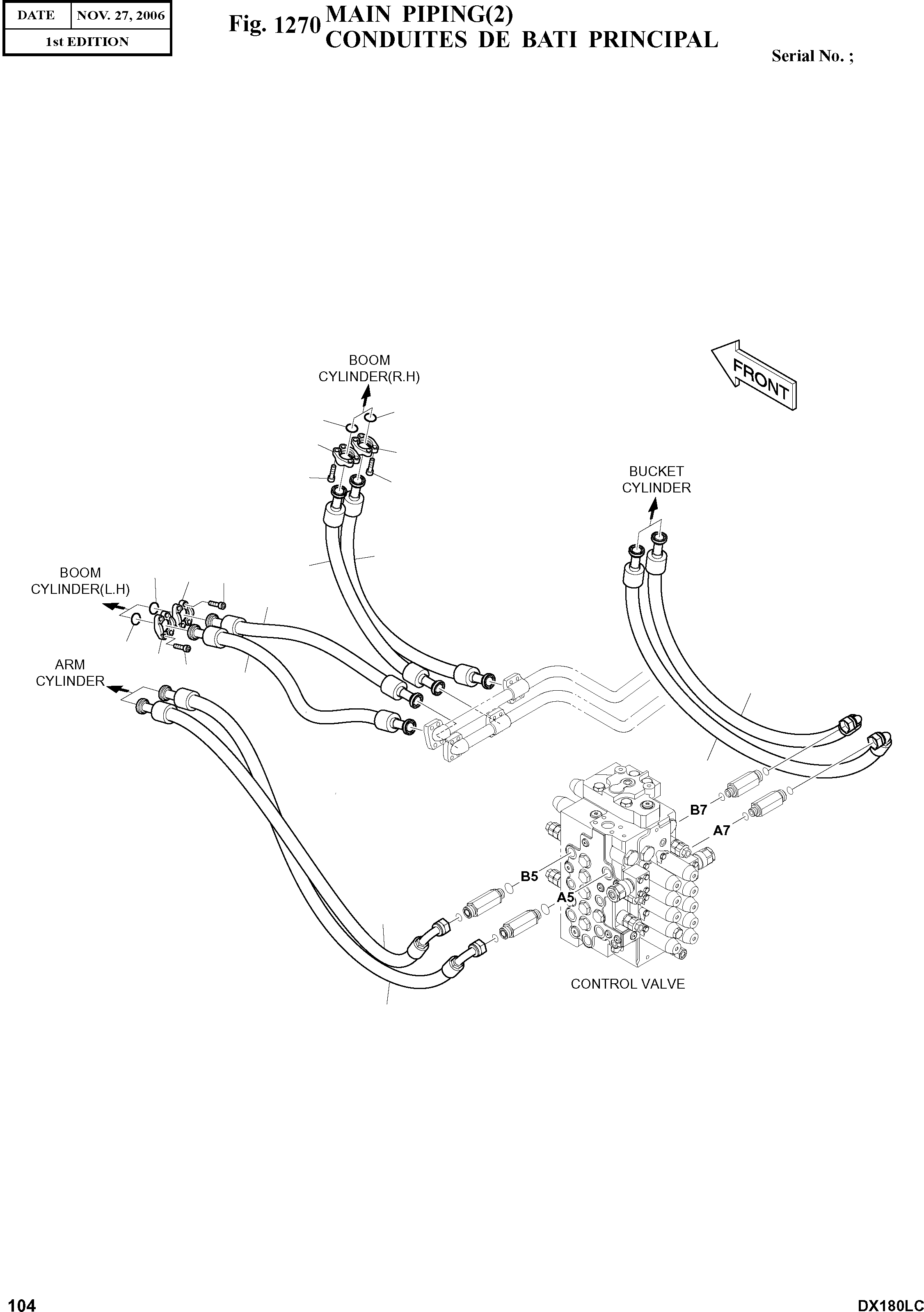

Запчасти Doosan Daewoo MAIN PIPING(2) BODY PARTS

-

K1023793A

MAIN PIPING-MONO BOOM

SC: D

-2шт.

1

DS2025070

HOSE

desc: TUYAU FLEXIBLE

2шт.

2

DS2025069

HOSE

desc: TUYAU FLEXIBLE

1шт.

3

DS2038222

HOSE

desc: TUYAU FLEXIBLE

4шт.

4

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

5

2181-9079

FLANGE

desc: BRIDE

8шт.

6

S2212466

BOLT;SOCKET M10X1.5X40

desc: BOULON A 6 PANS CREUX

16шт.

7

DS2025091

HOSE

desc: TUYAU FLEXIBLE

1шт.
