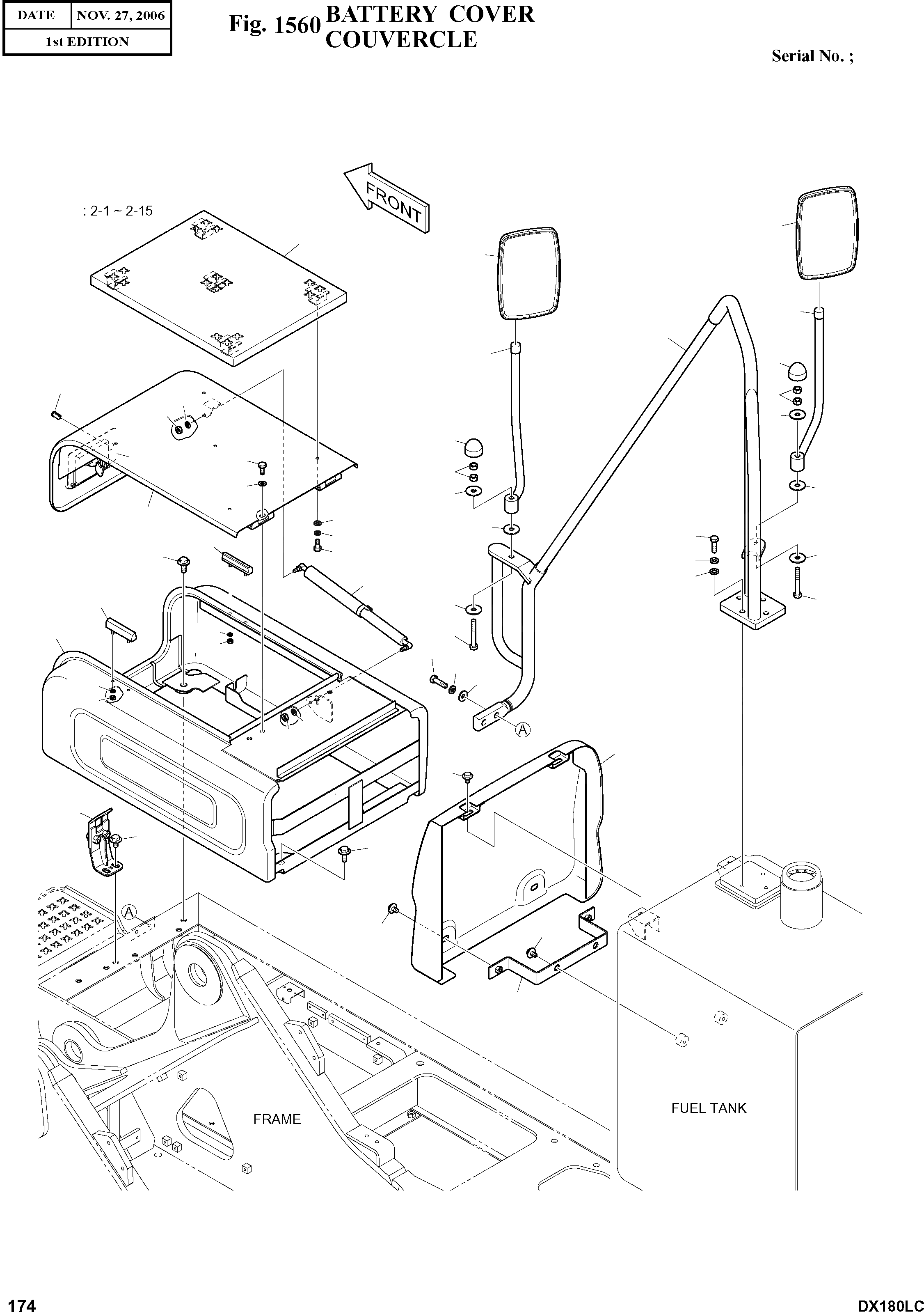

Запчасти Doosan Daewoo BATTERY COVER BODY PARTS

-

K1013497C

COVER ASS'Y

SC: D

-2шт.

2

K1013486B

BATTERY COVER ASS'Y

desc: COUVERCLE

1шт.

2-1

-

BATTERY COVER

SC: D

1шт.

2-2

K1013488

DOOR;BATTERY COVER

desc: . PORTE

1шт.

2-2A

125-00071B

LATCH

desc: .. VERROU

1шт.

2-3

K1014272

COVER

desc: . COUVERCLE

1шт.

2-4

S0512066

BOLT

desc: . BOULON A 6 PANS

4шт.

2-5

S5010613

WASHER

desc: . RONDELLE

4шт.

2-8

K1006977

CYLINDER;GAS

desc: . CYLINDRE

1шт.

2-9

S5102503

WASHER

desc: . RONDELLE

7шт.

2-10

S4012533

NUT

desc: . ECROU 6 PANS M10x1.0

2шт.

2-11

S0508866

BOLT

desc: . BOULON A 6 PANS

5шт.

2-12

S5010513

WASHER

desc: . RONDELLE

5шт.

2-13

K1005305

STOPPER;RUBBER

desc: . TAQUET D'ARRET

2шт.

2-14

S4012333

NUT

desc: . ECROU 6 PANS M10x1.0

4шт.

2-15

S5102303

WASHER

desc: . RONDELLE

4шт.

8

K1004860B

PLATE

desc: PLAQUE

1шт.

11

K1014131

HANDRAIL

desc: BALUSTRADE

1шт.

13

K1013269

STAY;MIRROR

desc: ENTRETOISE

1шт.

14

K1013290

STAY;MIRROR

desc: ENTRETOISE

1шт.

15

K1005285A

BRACKET

desc: SUPPORT

1шт.

16

195-02624C

BRACKET

desc: SUPPORT

1шт.

17

S0560666

BOLT

desc: BOULON A 6 PANS

2шт.

20

2114-1058D33

WASHER

desc: CALE

2шт.

22

DS0025014

BOLT;SET

desc: BOULON A 6 PANS

4шт.

23

DS0025015

BOLT;SET

desc: BOULON A 6 PANS

4шт.

24

S0561466

BOLT

desc: BOULON A 6 PANS

2шт.

25

DS0025027

BOLT;SET

desc: BOULON A 6 PANS

4шт.

28

S0560566

BOLT

desc: BOULON A 6 PANS

4шт.

29

2114-1058D68

WASHER

desc: CALE

6шт.

31

S5010713

WASHER

desc: CALE

4шт.

33

S5102703

WASHER

desc: CALE

6шт.

34

S4012733

NUT

desc: ECROU 6 PANS

4шт.

35

161-00580

CAP;RUBBER

desc: CHAPEAU

2шт.

39

K1004630

CYLINDER;KEY

desc: CYLINDRE

1шт.

81

903-00068

MIRROR

desc: MIROIR

2шт.
