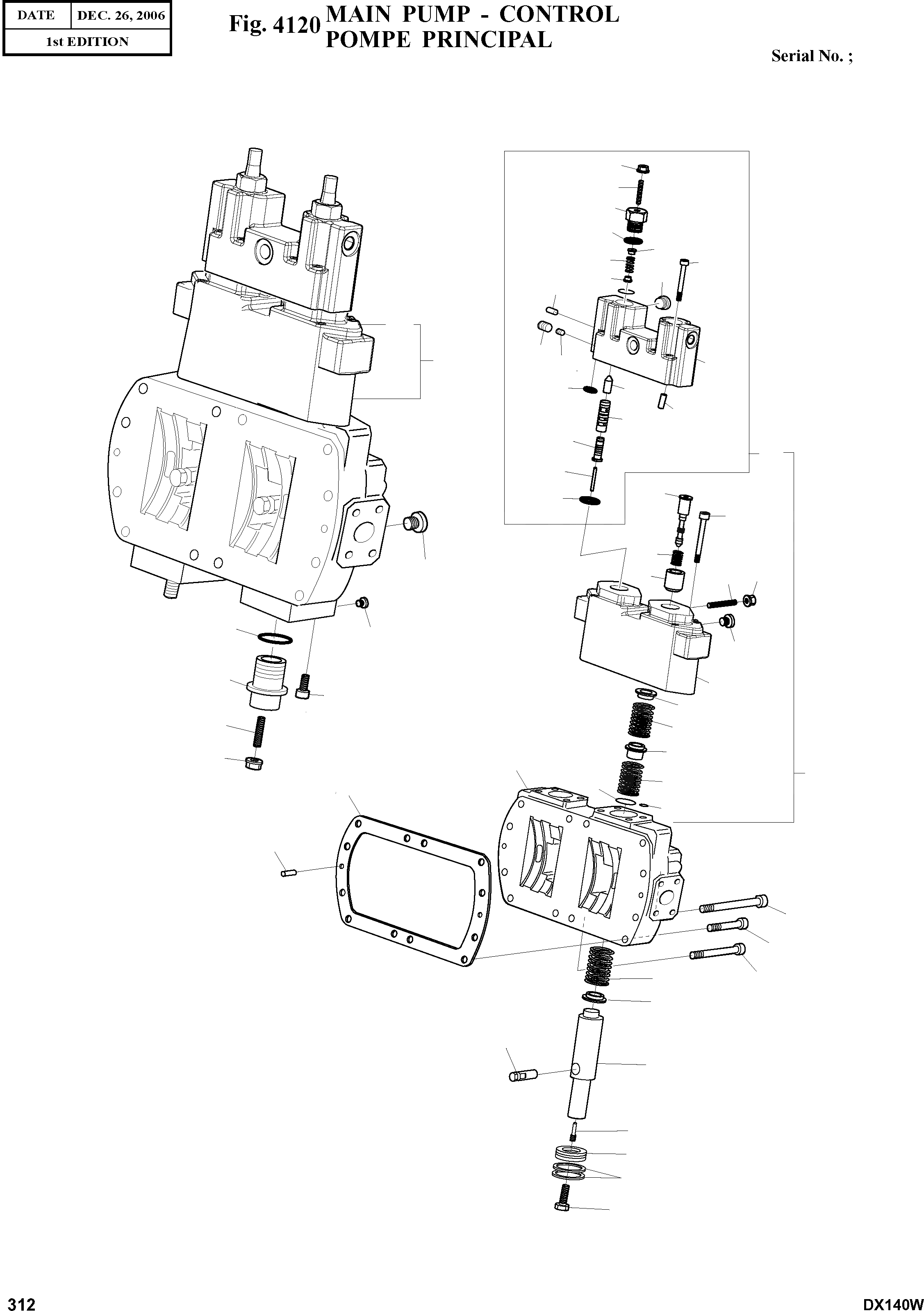

Запчасти Doosan Daewoo MAIN PUMP - CONTROL HYDRAULIC PARTS

2

K9001723

CONTROL MODULE

desc: MODULE DE COMMANDE

1шт.

2A

2.421-00130

CONTROL MODULE

desc: . MODULE DE COMMANDE

1шт.

2Aa

2.402-00211

HOUSING;CONTROL

SC: D

1шт.

2Ab

2.409-00179

PISTON;CONTROL

desc: .. PISTON

2шт.

2Ac

2.408-00065

BUSH;CONTROL

desc: .. DOUILLE

2шт.

2Ad

2.409-00202

PISTON;POSITIONING

desc: .. PISTON

2шт.

2Ae

2.123-00066

PIN

desc: .. GOUPILLE

2шт.

2Af

2.114-00039

COLLAR;SPRING

desc: .. COLLIER DE RESSORT

4шт.

2Ag

2.131-00415

SPRING;PRESSURE

desc: .. RESSORT

2шт.

2Ah

2.120-00613

SCREW;LOCKING

desc: .. VIS

2шт.

2Ai

2.123-00235

PIN;THREADED

desc: .. GOUPILLE

2шт.

2Aj

2.121-00202

NUT;SEAL LOCK

desc: .. ECROU

2шт.

2Ak

2.180-01191

O-RING

desc: .. JOINT TORIQUE

2шт.

2Al

2.180-00471

O-RING

desc: .. JOINT TORIQUE

2шт.

2Am

2.180-01181

O-RING

desc: .. JOINT TORIQUE

2шт.

2An

2.120-00826

SCREW;SOCKET-HEAD

desc: .. VIS

6шт.

2Ao

2.123-00288

PIN;DOUBLE BREAK-OFF

desc: .. GOUPILLE

5шт.

2Ap

2.123-00131

PIN;CYLINDER

desc: .. GOUPILLE

2шт.

2Aq

2.123-00300

PIN;DOUBLE BREAK-OFF

desc: .. GOUPILLE

1шт.

2Ar

2.181-00262

PLUG

desc: .. BOUCHON

1шт.

2As

2.120-00612

SCREW;LOCKING

desc: .. VIS

1шт.

2B

2.402-00212

HOUSING;CONTROL

SC: D

1шт.

2C

2.409-00180

PISTON;CONTROL

desc: . PISTON

2шт.

2D

2.408-00083

BUSH;SPRING

desc: . DOUILLE

2шт.

2E

2.131-00418

SPRING;PRESSURE

desc: . RESSORT

2шт.

2F

2.123-00238

PIN;THREADED

desc: . GOUPILLE

2шт.

2G

2.114-00041

COLLAR;SPRING

desc: . COLLIER DE RESSORT

2шт.

2H

2.114-00042

COLLAR;SPRING

desc: . COLLIER DE RESSORT

2шт.

2I

K9001724

SPRING;PRESSURE

desc: . RESSORT

2шт.

2J

K9001725

SPRING;PRESSURE

desc: . RESSORT

2шт.

2K

2.180-00471

O-RING

desc: . JOINT TORIQUE

4шт.

2L

2180-1217D66

O-RING

desc: . JOINT TORIQUE

2шт.

2M

2.120-00611

SCREW;LOCKING

desc: . VIS

2шт.

2N

2.121-00202

NUT;SEAL LOCK

desc: . ECROU

2шт.

2O

2.120-00675

SCREW;SOCKET-HEAD

desc: . VIS

6шт.

10

2.402-00210

HOUSING;CONTROL

SC: D

1шт.

11

2.180-00084

GASKET

desc: JOINT

1шт.

12

2.409-00201

PISTON;POSITIONING

desc: PISTON

2шт.

13

2.428-00062

TRUNNION;POSITIONING

desc: ANNEAU DE SOUTIEN

2шт.

14

K9001726

COLLAR;SPRING

desc: COLLIER DE RESSORT

2шт.

15

2.131-00416

SPRING;PRESSURE

desc: RESSORT

2шт.

16

2.409-00068

PISTON

desc: PISTON

2шт.

17

2.123-00236

PIN;THREADED

desc: GOUPILLE

2шт.

18

2.120-00614

SCREW;LOCKING

desc: VIS

2шт.

26

2.120-00575

SCREW;HEX

desc: VIS

2шт.

37

K9001727

RING;STEEL SEALING

desc: BAGUE D'ETANCHEITE

4шт.

41

2.120-00824

SCREW;SOCKET M10X70

desc: VIS

4шт.

42

2.120-00823

SCREW;SOCKET M10X45

desc: VIS

6шт.

43

2.120-00821

SCREW;SOCKET M10X60

desc: VIS

2шт.

44

2.123-00132

PIN;CYLINDER

desc: GOUPILLE

2шт.

45

2180-1217D57

O-RING

desc: JOINT TORIQUE

2шт.

46

2.123-00239

PIN;THREADED M10X50

desc: GOUPILLE

2шт.

47

2.121-00203

NUT;SEAL LOCK

desc: ECROU

2шт.

49

2.123-00288

PIN;DOUBLE BREAK-OFF

desc: GOUPILLE

1шт.

50

2.120-00615

SCREW

desc: VIS

2шт.

52

2.120-00616

SCREW

desc: VIS

2шт.
