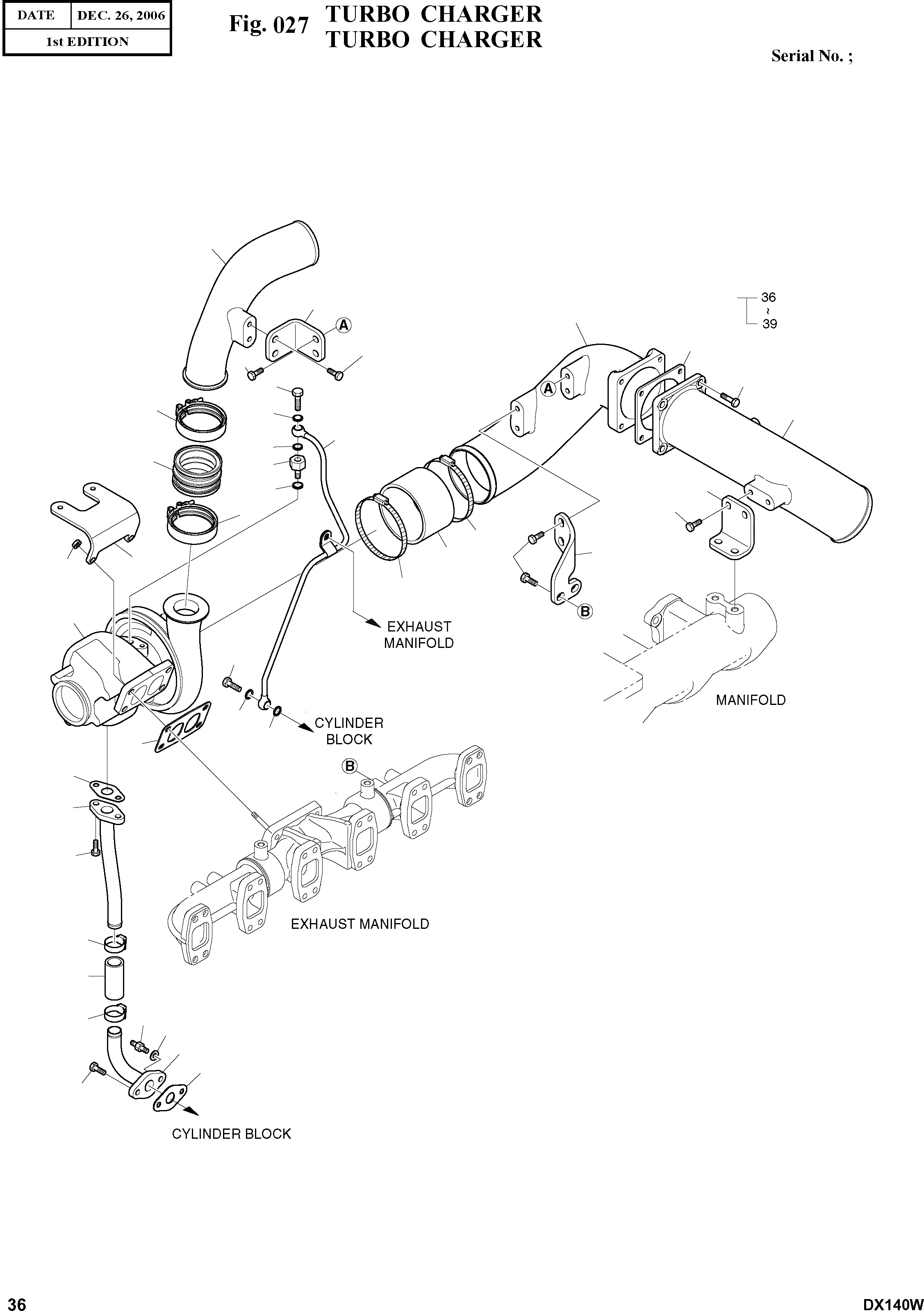

Запчасти Doosan Daewoo TURBO CHARGER ENGINE PARTS

30
35
33
36
38
34
34
39
7
32
37
8
5
8
31
4
42
6
43
32
45
40
44
41
20
3
45
1
9
10
10
2
15
11
17
14
13
18
14
19
12
16
17

Артикул

Название

Примечание

Количество

1

65.09100-7110

TURBOCHARGER ASS'Y

desc: TURBOCOMPRESSEUR

1шт.

2

65.09901-0018A

GASKET

desc: JOINT

1шт.

3

65.90535-0001

NUT

desc: ECROU

4шт.

4

65.98130-0200A

ADAPTER

desc: ADAPTEUR

1шт.

5

65.05701-5567

PIPE;OIL

desc: TUYAU

1шт.

6

06.56190-0709

SEAL;RING

desc: BAGUE

1шт.

7

06.78144-2403

HOLLOW SCREW M12X1.5

desc: VIS CREUSE

1шт.

8

06.56190-0704

SEAL RING A12X18

desc: ANNEAU DU JOINT

2шт.

9

06.78144-2403

HOLLOW SCREW M12X1.5

desc: VIS CREUSE

1шт.

10

06.56190-0704

SEAL RING A12X18

desc: ANNEAU DU JOINT

2шт.

11

65.05701-5568

PIPE;OIL

desc: TUYAU

1шт.

12

65.05701-5569

PIPE;OIL

desc: TUYAU

1шт.

13

65.96301-0327A

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

14

06.67020-0104

CLAMP;HOSE

desc: COLLIER DE LA CONDUITE

2шт.

15

65.96601-0067

GASKET;T/C-PIPE

desc: JOINT

1шт.

16

65.96601-0052

GASKET;PIPE-BLOCK

desc: JOINT

1шт.

17

06.01913-3114

BOLT ASS'Y M8X22

desc: BOULON

3шт.

18

65.90201-0075

BOLT;SPACER

desc: BOULON D'ENTRETOISE

1шт.

19

06.16731-2107

WASHER

desc: RONDELLE

1шт.

20

65.09140-0005

BRACKET

desc: SUPPORT

1шт.

30

65.09411-5095

PIPE;INLET

desc: TUYAU

1шт.

31

65.96301-6003

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

32

65.97450-5003

CLAMP

desc: BRIDE

2шт.

33

65.09440-0058

BRACKET

desc: SUPPORT

1шт.

34

06.01923-3215

BOLT ASS'Y M10X25

desc: BOULON

4шт.

35

65.09411-7013

INLET PIPE ASS'Y

desc: TUYAU D'ADMISSION

1шт.

36

65.09411-5104

INLET

desc: . PRISE

1шт.

37

65.09411-5103

INLET

desc: . PRISE

1шт.

38

65.09904-0009

GASKET;AIR PIPE

desc: . JOINT

1шт.

39

06.01923-3218

BOLT ASS'Y M10X35

desc: . BOULON

4шт.

40

65.09440-0057

BRACKET

desc: SUPPORT

1шт.

41

06.01923-3215

BOLT ASS'Y M10X25

desc: BOULON

4шт.

42

65.09440-0056

BRACKET

desc: SUPPORT

1шт.

43

06.01923-3215

BOLT ASS'Y M10X25

desc: BOULON

4шт.

44

65.96301-0035

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

45

06.67020-0116

CLAMP;HOSE

desc: COLLIER DE LA CONDUITE

2шт.

Выбрано товаров: 36
