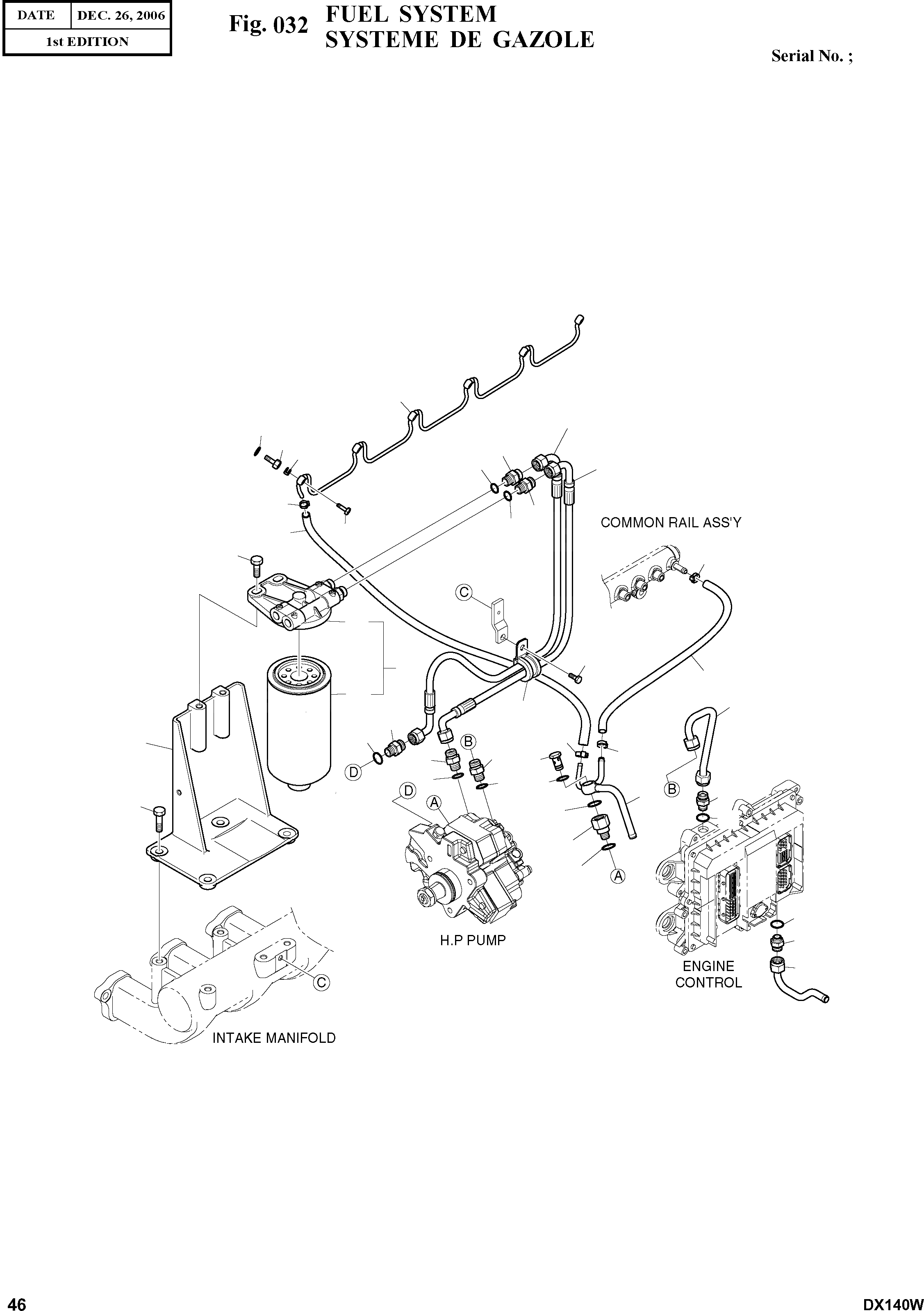

Запчасти Doosan Daewoo FUEL SYSTEM ENGINE PARTS

1

65.96340-5079

HOSE;FUEL

desc: TUYAU FLEXIBLE

1шт.

2

65.96340-5080

HOSE;FUEL

desc: TUYAU FLEXIBLE

1шт.

3

65.98130-0211

ADAPTER

desc: ADAPTEUR

1шт.

4

06.56190-0704

SEAL RING A12X18

desc: ANNEAU DU JOINT

1шт.

5

65.98130-0229

ADAPTER

desc: ADAPTEUR

1шт.

6

06.56190-0706

SEAL RING A14X20

desc: ANNEAU DU JOINT

1шт.

7

65.12301-5291

PIPE;FUEL

desc: TUYAU

1шт.

8

65.96330-0018

HOSE;RUBBER;RING JOIN

desc: TUYAU FLEXIBLE

1шт.

9

65.97440-0045

CLAMP;HOSE

desc: COLLIER DE LA CONDUITE

2шт.

10

06.78144-2204

HOLLOW SCREW NW10

desc: VIS CREUSE

1шт.

11

65.98130-0159A

ADAPTER

desc: ADAPTEUR

1шт.

12

06.56190-0704

SEAL RING A12X18

desc: ANNEAU DU JOINT

1шт.

13

06.56190-0706

SEAL RING A14X20

desc: ANNEAU DU JOINT

2шт.

14

65.12301-5289

PIPE;FUEL

desc: TUYAU

1шт.

15

65.98130-0229

ADAPTER

desc: ADAPTEUR

2шт.

16

06.56190-0706

SEAL RING A14X20

desc: ANNEAU DU JOINT

2шт.

17

65.12301-5268

PIPE;FUEL

desc: TUYAU

1шт.

18

65.98130-0229

ADAPTER

desc: ADAPTEUR

1шт.

19

06.56190-0706

SEAL RING A14X20

desc: ANNEAU DU JOINT

1шт.

30

65.96507-0055

RING;SEAL

desc: BAGUE D'ETANCHEITE

6шт.

31

65.12301-5288A

PIPE;FUEL

desc: TUYAU

1шт.

32

65.98130-0154

ADAPTER

desc: ADAPTEUR

6шт.

33

06.56180-0712

RING;SEAL

desc: BAGUE D'ETANCHEITE

6шт.

34

65.98150-0042A

HOLLOW SCREW

desc: VIS CREUSE

6шт.

35

65.96301-0462

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

36

65.97440-0045

CLAMP;HOSE

desc: COLLIER DE LA CONDUITE

2шт.

37

65.97401-5019

CLIP;PIPE

desc: AGRAFE

1шт.

38

06.01923-3111

BOLT M8X16

desc: BOULON

1шт.

50

65.12501-7042A

FUEL FILTER ASS'Y

desc: REMPLISSEUR DE CARBURANT

1шт.

51

65.12504-5027

COVER;FUEL FILTER

desc: . COUVERCLE

1шт.

52

65.12503-5026

FILTER;FUEL

desc: . FILTRE

1шт.

53

06.01923-3217

BOLT ASS'Y M10X30

desc: BOULON

2шт.

54

65.12540-0057C

BRACKET;FUEL FILTER

desc: SUPPORT

1шт.

55

06.01913-3216

BOLT M10X28

desc: BOULON

4шт.

56

65.98130-0229

ADAPTER

desc: ADAPTEUR

2шт.

57

06.56190-0706

SEAL RING A14X20

desc: ANNEAU DU JOINT

2шт.
