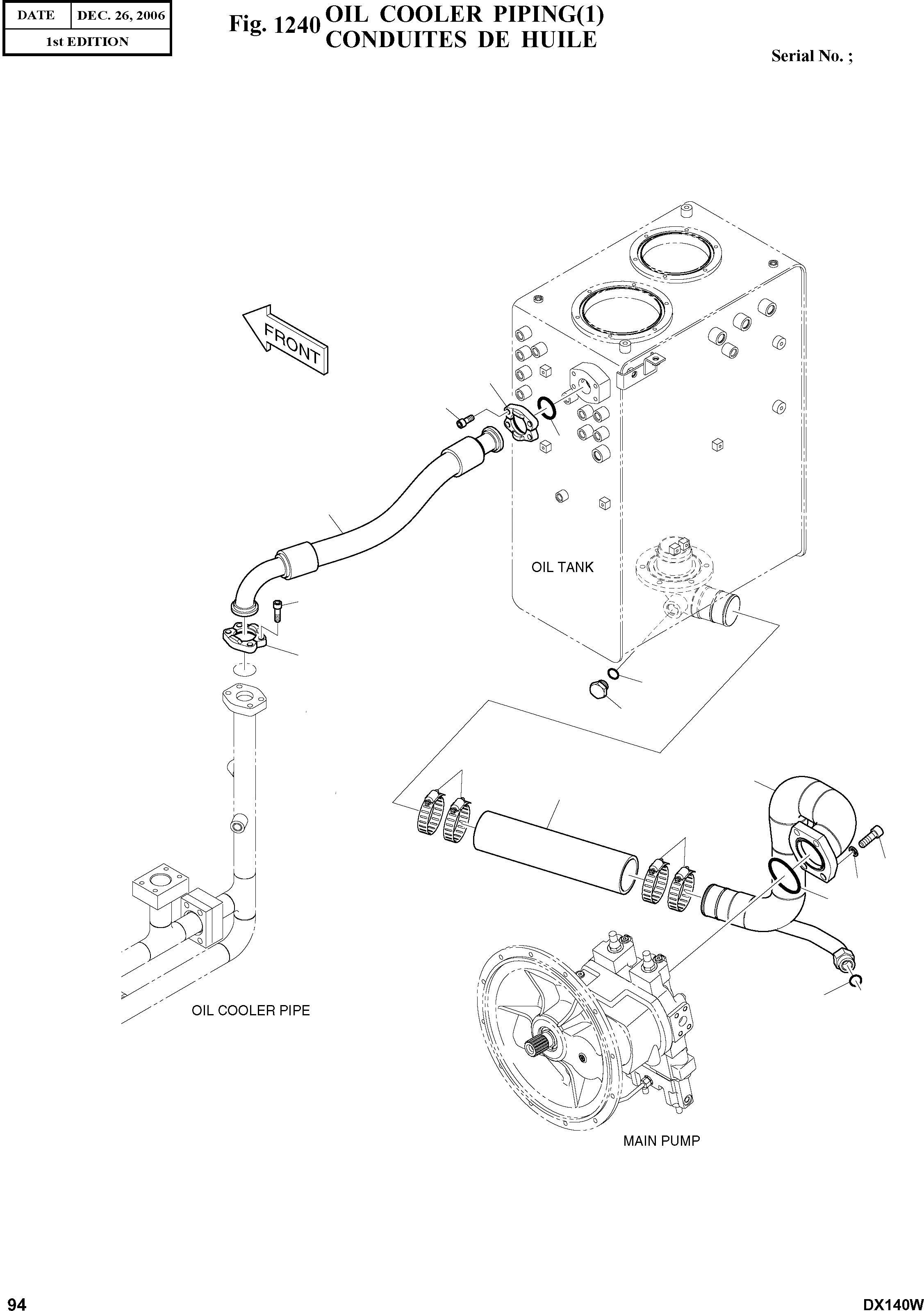

Запчасти Doosan Daewoo OIL COOLER PIPING(1) BODY PARTS

-

K1013373C

OIL COOLER PIPING

SC: D

-2шт.

1

K1008794

PIPE;SUCTION

desc: TUYAU

1шт.

5

2185-1002D105

HOSE

desc: TUYAU FLEXIBLE

1шт.

6

S8500105

CLAMP

desc: BRIDE

4шт.

11

DS2040442

HOSE

desc: TUYAU FLEXIBLE

1шт.

16

4215-1003D5

FLANGE

desc: BRIDE

4шт.

17

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

19

S8030161

O-RING

desc: JOINT TORIQUE

1шт.

20

2180-1026D32

O-RING

desc: JOINT TORIQUE

1шт.

21

2180-1026D28

O-RING

desc: JOINT TORIQUE

1шт.

23

S2215266

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

4шт.

24

S2215466

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

4шт.

25

S2221566

BOLT;HEX

desc: BOULON A 6 PANS

4шт.

27

S5110903

WASHER

desc: RONDELLE

4шт.

51

2181-1950D15

PLUG

desc: BOUCHON

1шт.
