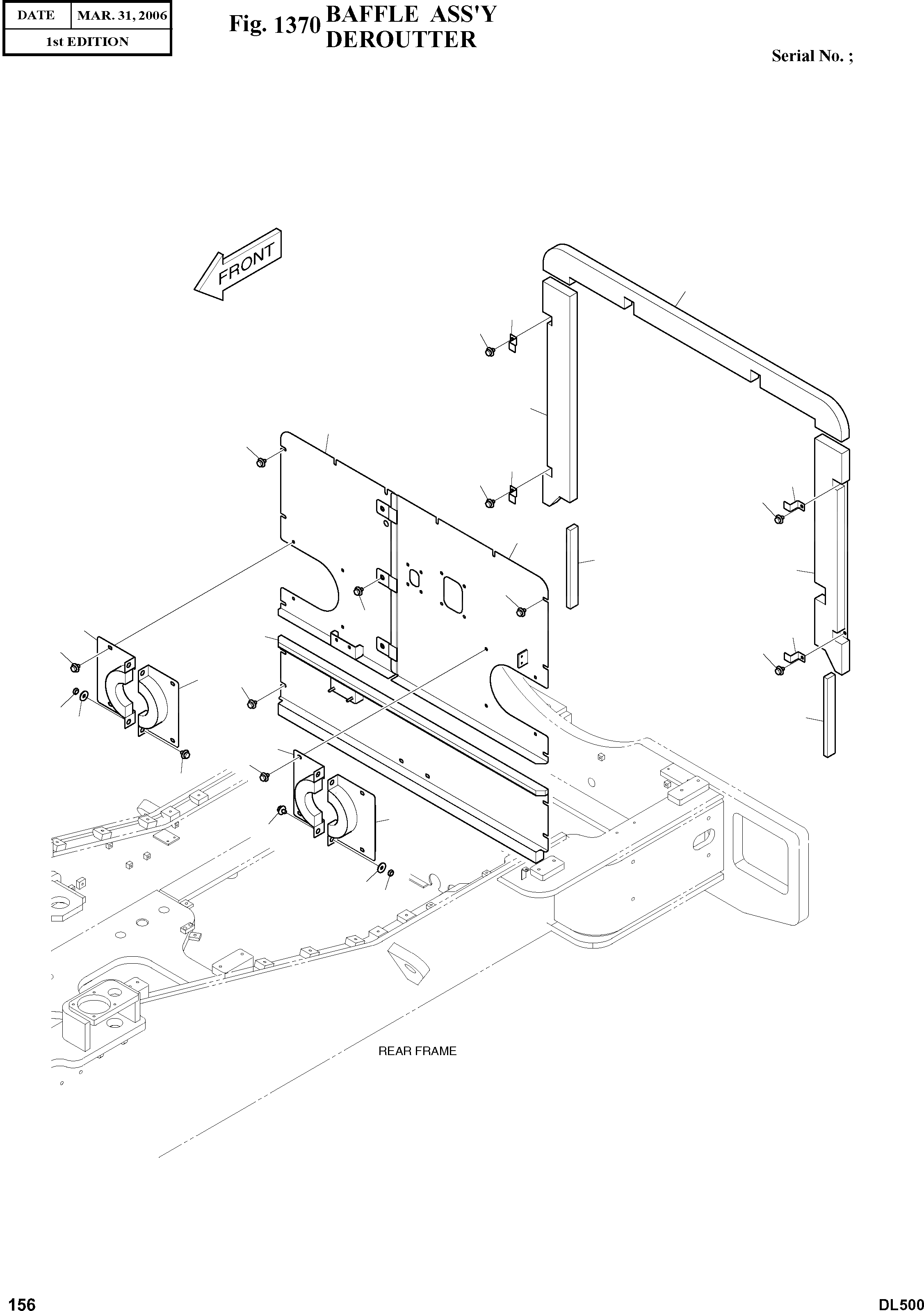

Запчасти Doosan Daewoo BAFFLE ASSY BODY PARTS

-

K1010033

BAFFLE ASS'Y

SC: D

-2шт.

1

K1010110A

COVER;BAFFLE

desc: COUVERCLE

1шт.

2

K1010111A

COVER;BAFFLE

desc: COUVERCLE

1шт.

3

K1010112A

COVER;BAFFLE

desc: COUVERCLE

1шт.

4

K1010115

COVER;BAFFLE

desc: COUVERCLE

2шт.

5

K1010116

COVER;BAFFLE

desc: COUVERCLE

2шт.

6

S4012633

NUT

desc: ECROU

4шт.

7

DS0025013

BOLT

desc: BOULON A 6 PANS

35шт.

8

2114-1058D10

WASHER;PLAIN

desc: RONDELLE

4шт.

9

K1010161A

COVER;BAFFLE

desc: COUVERCLE

1шт.

10

K1010162A

COVER;BAFFLE

desc: COUVERCLE

1шт.

11

K1010164A

COVER;BAFFLE

desc: COUVERCLE

1шт.

12

K1010166

FOAM

desc: EPONGE

2шт.

13

124-00057A

CLAMP;SPONGE

desc: COLLIER

4шт.
