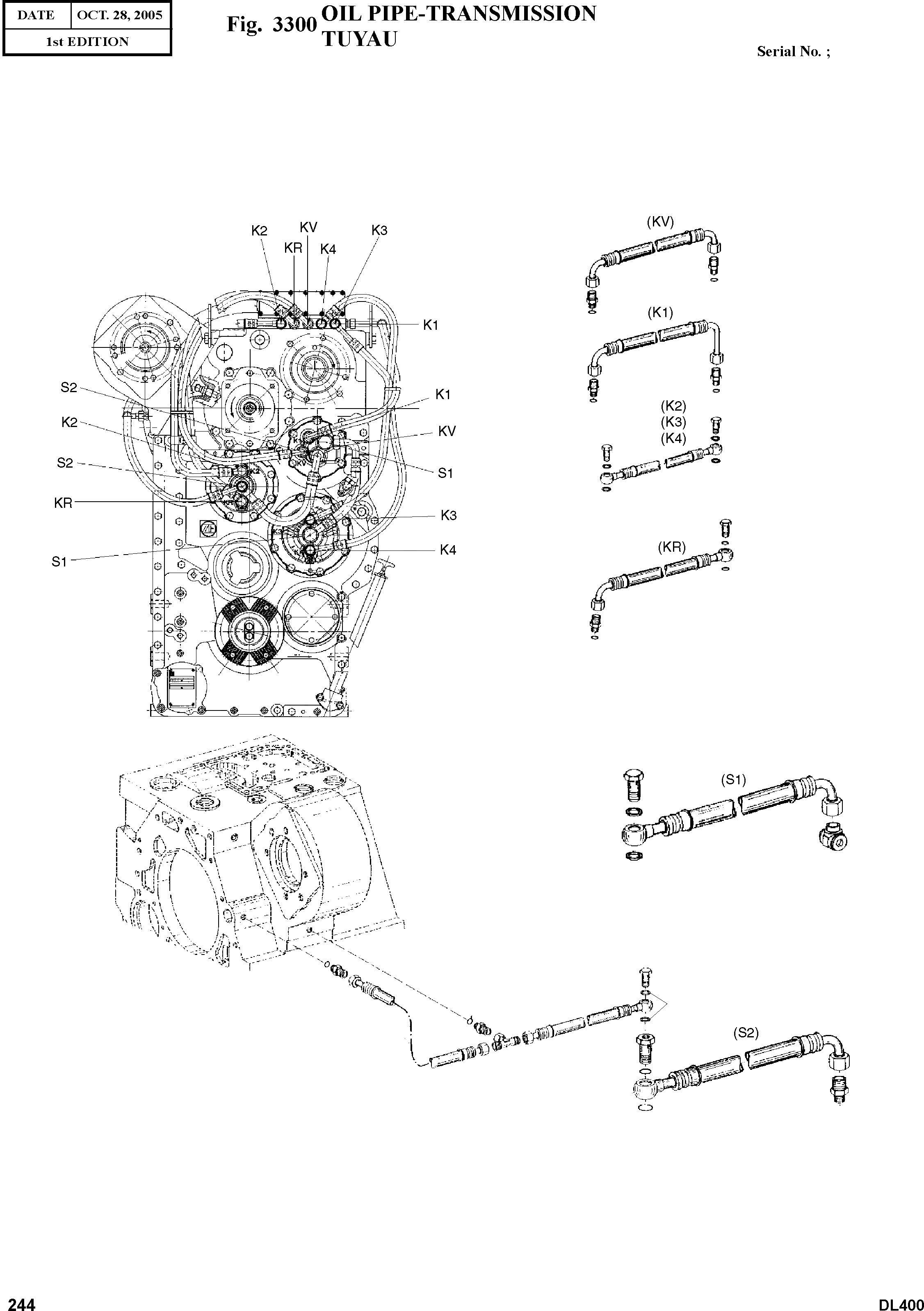

Запчасти Doosan Daewoo OIL PIPE-TRANSMISSION HYDRAULIC PARTS

10

2.181-00457

ADAPTER

desc: ADAPTEUR

1шт.

13

2.140-00080

ADAPTER

desc: ADAPTEUR

1шт.

24

K9000004

HOSE

desc: TUYAU

1шт.

70

2.184-00075

HOSE

desc: TUYAU

1шт.

81

2.120-00691

SCREW

desc: VIS

1шт.

82

2.180-00346

O-RING

desc: JOINT TORIQUE

1шт.

86

2.180-00346

O-RING

desc: JOINT TORIQUE

1шт.

90

2.180-00350

O-RING

desc: JOINT TORIQUE

2шт.

151

2.120-00793

SCREW

desc: VIS

3шт.

152

1.180-00103

O-RING

desc: JOINT TORIQUE

3шт.

154

2.181-00438

ADAPTER

desc: ADAPTEUR

5шт.

155

1.180-00103

O-RING

desc: JOINT TORIQUE

5шт.

220

K9000116

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

230

2.184-00077

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

250

2.184-00076

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

260

2.184-00071

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

290

K9000122

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

300

K9000006

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

390

K9002060

UNION;PIPE

desc: TUYAU

1шт.

400

K9002061

TEE

desc: TE

1шт.

431

2.120-00690

SCREW

desc: VIS

4шт.

432

1.180-00103

O-RING

desc: JOINT TORIQUE

4шт.

440

1.180-00102

O-RING

desc: JOINT TORIQUE

7шт.

466

1.180-00076

O-RING

desc: JOINT TORIQUE

1шт.

470

K9002062

ORIFICE;ADAPTER

desc: ORIFICE

1шт.

478

K9002063

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

482

K9001665

SCREW

desc: VIS

1шт.

484

K9001664

RING;SEALING

desc: BAGUE D'ETANCHEITE

2шт.

486

K9002064

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.
