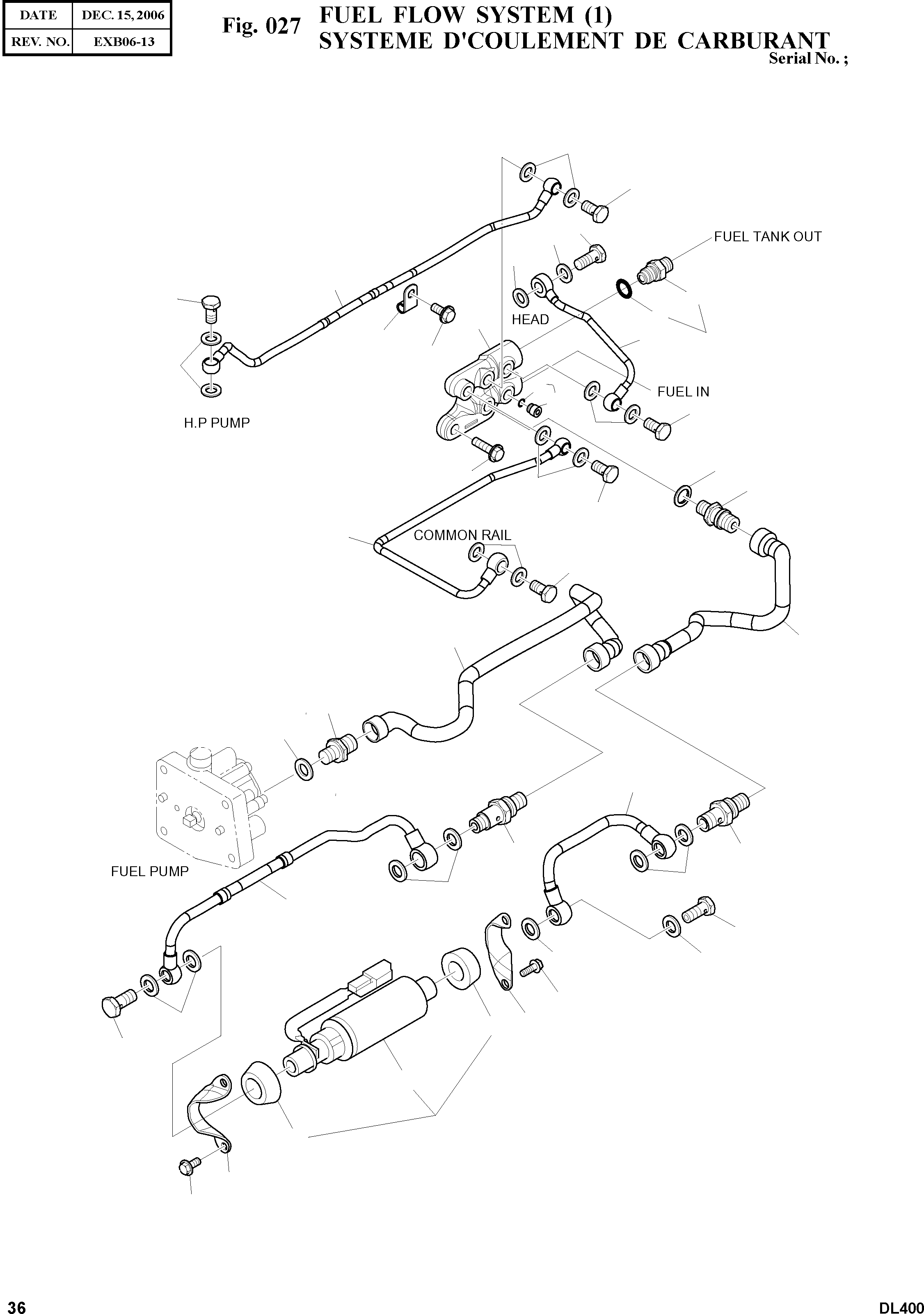

Запчасти Doosan Daewoo FUEL FLOW SYSTEM (1) ENGINE PARTS

1

K9002328

UNION;MALE

desc: UNION

1шт.

2

K9002326

O-RING

desc: . JOINT TORIQUE

1шт.

3

-

UNION;MALE

SC: D

1шт.

4

K9002331

SCREW

desc: VIS

2шт.

5

K9002346

CLIP

desc: AGRAFE

1шт.

6

K9002350

PLUG;THREADED

desc: BOUCHON

1шт.

7

-

PLUG;THREADED

SC: D

1шт.

8

K9002351

O-RING

desc: . JOINT TORIQUE

1шт.

9

K9002391

SCREW

desc: VIS

4шт.

10

K9002397

SCREW

desc: VIS

1шт.

11

K9002436

SCREW

desc: VIS

1шт.

12

K9002522

VALVE;CHECK

desc: VANNE DE CONTROLE

1шт.

13

K9002535

WASHER;SEALING

desc: RONDELLE

3шт.

14

K9002536

WASHER;SEALING

desc: RONDELLE

9шт.

15

K9002563

CONNECTION;FUEL BLOCK

desc: RACCORDEMENT

1шт.

16

K9002580

TUBE;FUEL DRAIN

desc: TUBE

1шт.

17

K9002581

TUBE;FUEL DRAIN

desc: TUBE

1шт.

18

K9002582

TUBE;FUEL DRAIN

desc: TUBE

1шт.

20

K9002536

WASHER;SEALING

desc: RONDELLE

1шт.

21

K9002553

TUBE;FUEL SUPPLY

desc: TUBE

1шт.

22

K9003977

TUBE;FUEL SUPPLY

desc: TUBE

1шт.

23

K9002590

CONNECTION;ADAPTER

desc: RACCORDEMENT

1шт.

30

K9002391

SCREW;BANJO CONNECTOR

desc: VIS

2шт.

31

K9002419

SCREW

desc: VIS

4шт.

32

K9002518

BRACKET;TRANSFER PUMP

desc: SUPPORT

2шт.

33

K9002535

WASHER;SEALING

desc: RONDELLE

2шт.

34

K9002536

WASHER;SEALING

desc: RONDELLE

6шт.

35

K9002559

TUBE;FUEL SUPPLY

desc: TUBE

1шт.

36

K9002560

TUBE;FUEL SUPPLY

desc: TUBE

1шт.

37

K9002574

VALVE;CHECK

desc: VANNE DE CONTROLE

1шт.

38

K9002576

PUMP;FUEL TRANSFER

desc: POMPE

1шт.

39

K9002519

ISOLATOR;VIBRATION

desc: . ISOLANT

2шт.

40

-

PUMP;FUEL TRANSFER

SC: D

1шт.

41

K9002602

CONNECTION;ADAPTER

desc: RACCORDEMENT

1шт.
