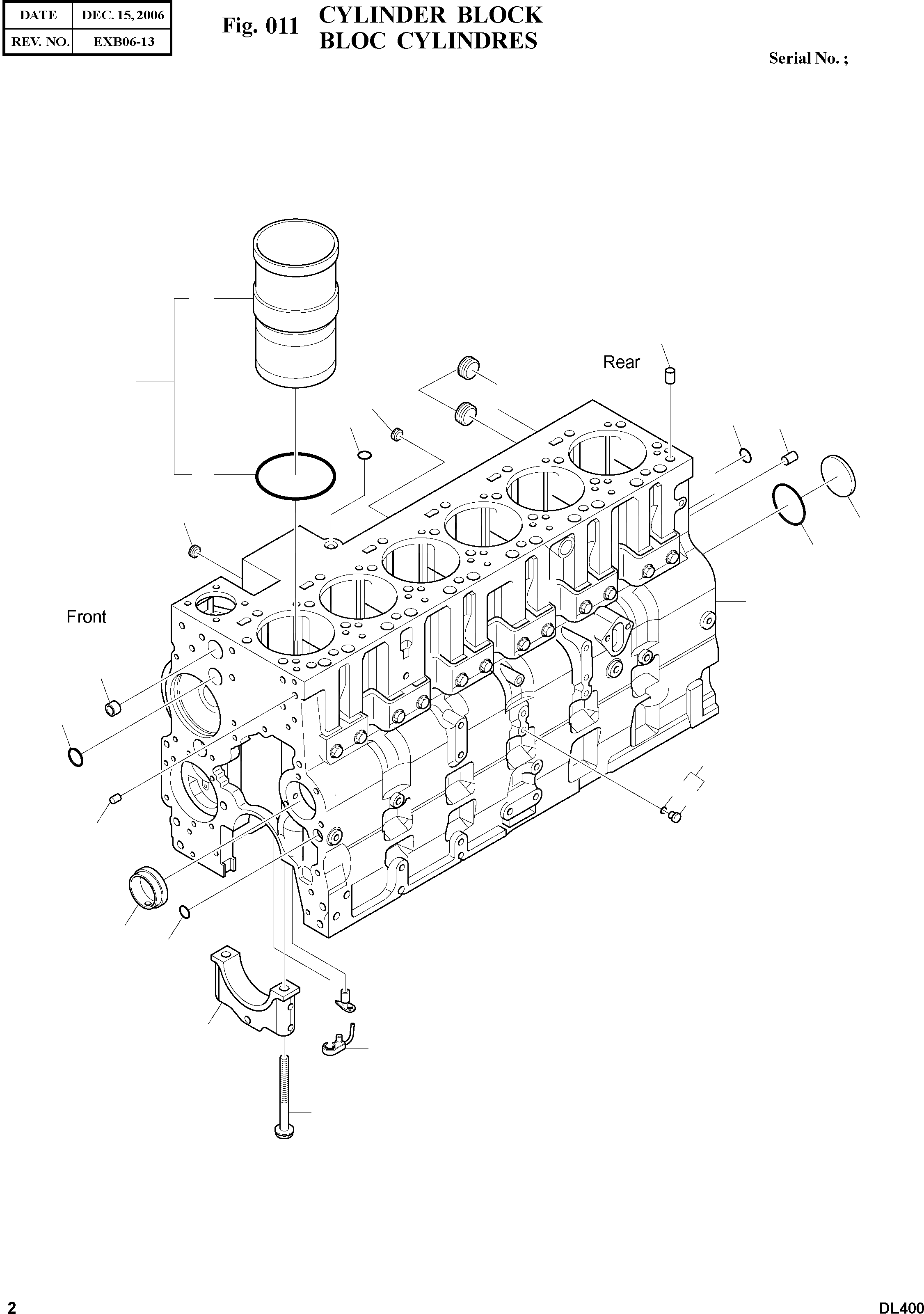

Запчасти Doosan Daewoo CYLINDER BLOCK ENGINE PARTS

1

K9002651

COCK;DRAIN

desc: DENT

1шт.

2

K9002321

PLUG;PIPE

desc: BOUCHON

1шт.

6

K9002350

PLUG;THREADED

desc: BOUCHON

5шт.

7

-

PLUG;THREADED

SC: D

1шт.

8

K9002351

O-RING

desc: . JOINT TORIQUE

1шт.

9

K9002364

PIN;DOWEL

desc: GOUPILLE D'AJUSTAGE

2шт.

10

K9002382

PIN;DOWEL

desc: GOUPILLE D'AJUSTAGE

2шт.

11

K9002384

PLUG;EXPANSION

desc: BOUCHON

1шт.

14

K9002442

O-RING

desc: JOINT TORIQUE

1шт.

16

K9002316

PLUG;EXPANSION

desc: BOUCHON

3шт.

17

K9002319

PLUG;EXPANSION

desc: BOUCHON

4шт.

18

K9002376

PLUG;EXPANSION

desc: BOUCHON

3шт.

19

K9002401

PLUG;EXPANSION

desc: BOUCHON

4шт.

20

K9002504

BUSHING

desc: DOUILLE

7шт.

21

K9002355

LINER KIT;CYLINDER

desc: RECOUVREMENT

6шт.

22

-

LINER;CYLINDER

SC: D

1шт.

23

K9002404

SEAL;RECTANGULAR RING

desc: . JOINT

1шт.

25

K9002595

SCREW

desc: VIS

14шт.

26

K9002599

CAP;MAIN BEARING

desc: RACCORD

7шт.

27

K9002600

BLOCK;CYLINDER

desc: BLOC-CYLINDRES

1шт.

28

K9002528

NOZZLE;PISTON COOLING

desc: BEC

6шт.
