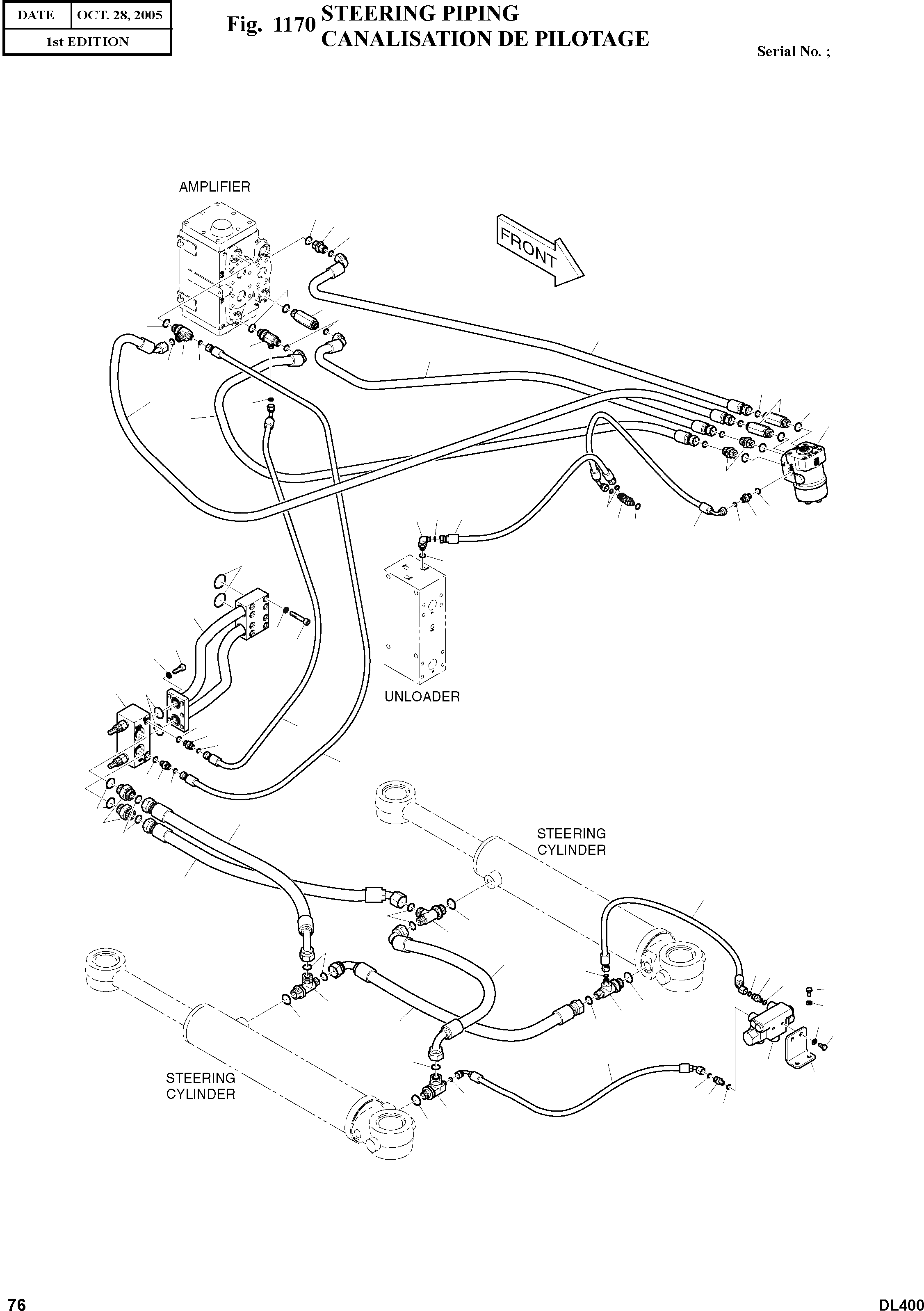

Запчасти Doosan Daewoo STEERING PIPING BODY PARTS

-

K1004100C

STEERING PIPING

SC: D

-2шт.

1

4420-9470A

UNIT;STEER

desc: MODULE DE COMMANDE

1шт.

2

2181-4133D46

ADAPTER

desc: ADAPTEUR

3шт.

3

S8000181

O-RING

desc: JOINT TORIQUE

8шт.

4

2181-4133D3

ADAPTER

desc: ADAPTEUR

3шт.

5

2181-4133D1

ADAPTER

desc: RACCORD ADAPTATEUR

3шт.

6

S8000111

O-RING

desc: JOINT TORIQUE

5шт.

7

DS2023194

HOSE

desc: TUYAU FLEXIBLE

1шт.

8

DS2013243

HOSE

desc: TUYAU FLEXIBLE

1шт.

9

DS2013243

HOSE

desc: TUYAU FLEXIBLE

1шт.

10

DS2013243

HOSE

desc: TUYAU FLEXIBLE

1шт.

11

DS2012103

HOSE

desc: TUYAU FLEXIBLE

1шт.

12

DS2011416

HOSE

desc: TUYAU FLEXIBLE

1шт.

13

DS2013409

HOSE

desc: TUYAU FLEXIBLE

1шт.

14

DS2013735

HOSE

desc: TUYAU FLEXIBLE

1шт.

15

DS2012101

HOSE

desc: TUYAU FLEXIBLE

1шт.

16

DS2023056

HOSE

desc: TUYAU FLEXIBLE

1шт.

17

DS2013244

HOSE

desc: TUYAU FLEXIBLE

1шт.

18

DS2012143

HOSE

desc: TUYAU FLEXIBLE

1шт.

19

DS2021158

HOSE

desc: TUYAU FLEXIBLE

1шт.

20

420-00172

VALVE;CUSHION

desc: VANNE

1шт.

21

4420-9473

VALVE;DUAL CROSS RELIEF

desc: CLAPET DECHARGE

1шт.

22

DS2232062

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

23

2180-1026D26

O-RING

desc: JOINT TORIQUE

2шт.

24

S0508766

BOLT

desc: BOULON A 6 PANS

4шт.

25

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE M8

4шт.

26

K1010499

PIPE

desc: CONDUITE

1шт.

27

S2212766

BOLT

desc: BOULON DE PLOT

8шт.

28

S5110603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

14шт.

29

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

30

S2212166

BOLT

desc: BOULON DE PLOT

6шт.

31

2180-1026D2

O-RING

desc: JOINT TORIQUE

2шт.

32

S8030081

O-RING

desc: JOINT TORIQUE

8шт.

33

DS2412015

TEE

desc: TE

1шт.

34

DS2412006

TEE

desc: TE

1шт.

35

2181-4133D5

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

36

S8000231

O-RING

desc: JOINT TORIQUE

6шт.

37

S8030121

O-RING

desc: JOINT TORIQUE

8шт.

38

181-00371D1

TEE

desc: TE

2шт.

39

DS2412019

TEE

desc: TE

1шт.

40

DS2412014

TEE

desc: TE

1шт.

41

181-00121D1

TEE

desc: TE

1шт.

42

S8030041

O-RING

desc: JOINT TORIQUE

12шт.

43

DS2011416

HOSE

desc: TUYAU FLEXIBLE

1шт.

44

K1004412

PLATE

desc: PLAQUE

1шт.

45

DS2304009

ELBOW

desc: COUDE

1шт.
